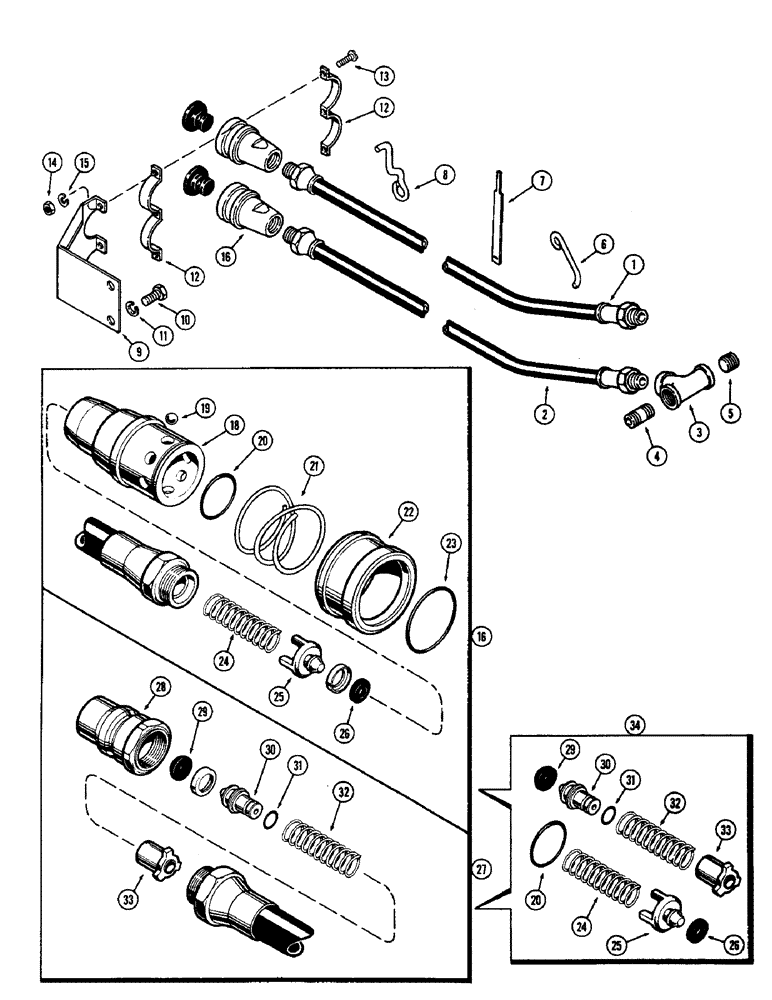

Запчасти Case 580 (149A) - REMOTE HYDRAULIC HOSES AND COUPLINGS, STANDARD CLUTCH (35) - HYDRAULIC SYSTEMS

1

A35438

HOSE

- upper valve to coupling (62")

1шт.

2

A37507

HOSE - lower valve to coupling (63-1/4")

1шт.

3

221-1423

TEE,Pipe, 3/8" NPT

- hose to valve (3/8" P.T.)

2шт.

4

221-1160

FITTING

NIPPLE - 3/8" P.T. x 1-3/4" long

3шт.

5

221-1843

PLUG

- 3/8" P.T. socket hd.

2шт.

6

A36402

SUPPORT

- hose (To brake cover)

1шт.

7

A35209

CLAMP

- hose

2шт.

8

G10996

SUPPORT - hose to trans. case

1шт.

9

A35439

BRACKET - coupling socket

1шт.

10

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

11

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

2шт.

12

A29224

CLAMP - coupling socket

2шт.

13

75-416

SCREW,Rd, 1/4" - 20 x 1"

- 1/4 x 3/4" N.C. rd. hd.

3шт.

14

25-104

NUT,1/4"-20, G5

3шт.

15

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

16

A28542

COUPLING, QUICK, FEM

COUPLING ASSY. - break-away (Female half), Inlcudes: Ref. 18 - 26

2шт.

18

A27349

BODY

1шт.

19

211-7

BALL,1/4" Dia

- locking 1/4" Dia

8шт.

20

A34848

O-RING

"O" RING - body (7/8 x 1-1/8 x 1/8")

1шт.

21

A27354

SPRING

- ball sleeve

1шт.

22

A27353

SLEEVE

SLEEVE - ball retainer

1шт.

23

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING - sleeve (1-3/16 x 1-7/16 x 1/8")

1шт.

24

A11324

SPRING

- piston

1шт.

25

A26215

PISTON

1шт.

26

A33964

SEAL

- piston

1шт.

27

A28541

COUPLING, BREAK AWAY

COUPLING ASSY. - break-away (Male half), Inlcudes: Ref. 28 - 33

1шт.

28

A27356

PIPE FITTING

BODY

1шт.

29

A33964

SEAL

1шт.

30

A27508

PISTON

1шт.

31

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING (1/4 x 3/8 x 1/16")

1шт.

32

A27351

SPRING

- piston

1шт.

33

A9634

SLEEVE

- piston

1шт.

34

A40459

KIT

- repair, coupling

1шт.
