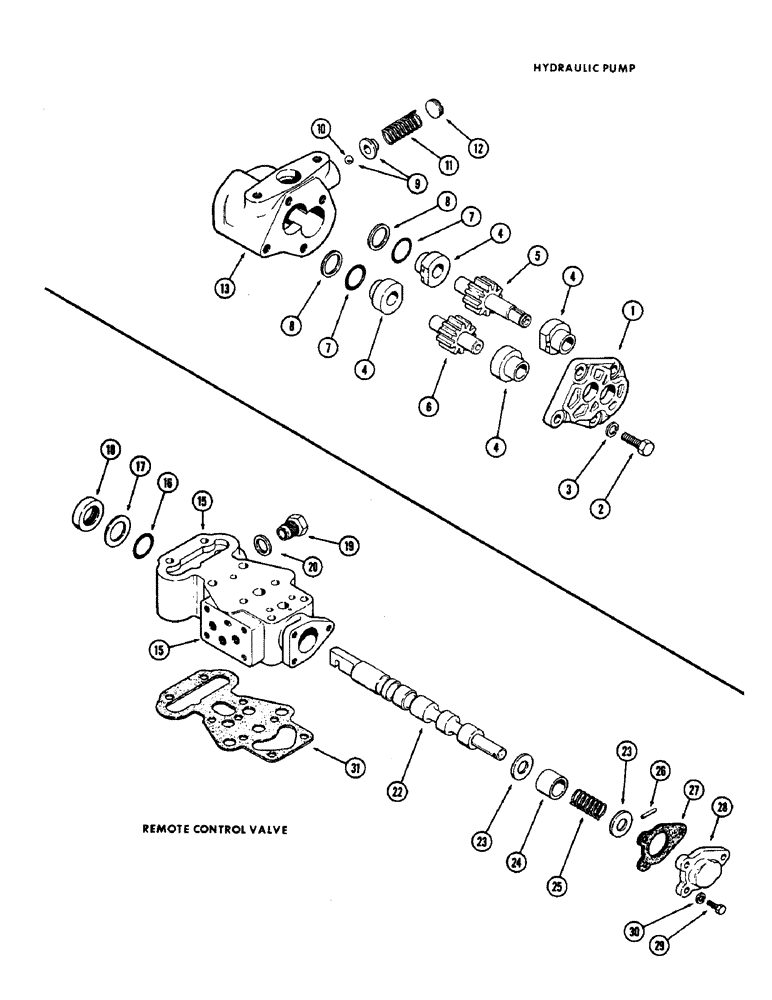

Запчасти Case 580 (146) - A35081 AND G45460 HYDRAULIC PUMP, A35618 HYDRAULIC VALVE (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
A35081
PUMP
ASSY. - hydraulic (Used w/std. clutch), Inlcudes: Ref. 1 - 13
1шт.
G45460
PUMP
ASSY. - hydraulic (Used w/power shuttle), Inlcudes: Ref. 1 - 13
1шт.
1
G4523
COVER
1шт.
2
G49095
BOLT - cover
4шт.
3
92-6
LOCK WASHER,3/8"
WASHER - , lock 3/8"
4шт.
4
G49673
BEARING
- gear
4шт.
5
G46223
GEAR
- drive
1шт.
6
G46049
GEAR - driven
1шт.
7
G46908
O-RING
"O" RING - bearing seal
2шт.
8
G49637
RING
- back-up
2шт.
9
A36058
X
POPPET ASSY. - relief valve, Inlcudes: Ref. 10
1шт.
10
211-10
BALL
- relief valve (11/32" dia.)
1шт.
11
G48516
SPRING
- relief valve
1шт.
12
G49094
PLUG - adjusting, relief valve
1шт.
13
NSS
NOT SOLD SEPARAT
BODY - (Order G45460 or A35081), hydraulic valve
1шт.
A35618
LOCK VALVE
VALVE ASSY. - remote hydraulics, hydraulic, Inlcudes: Ref. 15 - 30
2шт.
15
A35435
BODY, hydraulic valve
1шт.
16
A27352
O-RING,0.859" ID x 1.137" OD x 0.139"
"O" RING - (7/8 x 1-1/8 x 1/8"), hydraulic valve
1шт.
17
G49403
WASHER
- retainer, hydraulic valve
1шт.
18
G13807
OIL SEAL
SEAL - oil (7/8 x 1-3/8 x 5/16"), hydraulic valve
1шт.
19
G10902
PLUG - opening, hydraulic valve
1шт.
20
A31053
COPPER SEAL
GASKET - plug, hydraulic valve
1шт.
22
A35436
SPOOL, hydraulic valve
1шт.
23
A35302
WASHER - spool, hydraulic valve
2шт.
24
G10901
SLEEVE
- stop, spool spring, hydraulic valve
1шт.
25
A30083
VALVE SPRING
SPRING - valve spool, hydraulic valve
1шт.
26
138-57
LOCK PIN,1/8" x 3/4", Slotted
PIN, , Hydraulic valve 1/8" x 3/4", Slotted
1шт.
28
G1102
CAP - end, hydraulic valve
1шт.
27
G10903
GASKET
- end cap, hydraulic valve
1шт.
29
13-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
Hydraulic valve Hex, 1/4"-20 x 3/4", G5, Full Thd
3шт.
30
92-4
LOCK WASHER,1/4"
WASHER, LOCK, , Hydraulic valve 1/4"
3шт.
31
A35617
GASKET
- valve body, hydraulic valve
1шт.
Выбрано товаров: 32
