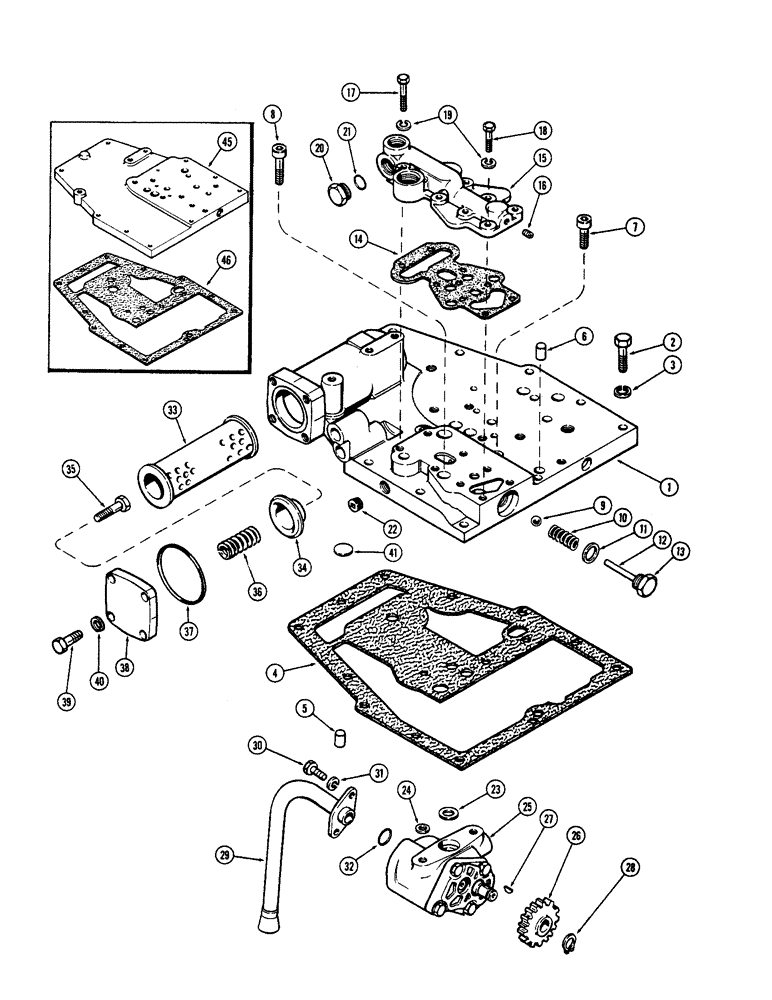

Запчасти Case 580 (144) - HYDRAULIC PUMP & ADAPTER, POWER SHUTTLE (35) - HYDRAULIC SYSTEMS

1

A37869

HOUSING

ASSY. - adapter, hydraulic (See Figure 96)

1шт.

2

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

2

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

2

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

2шт.

2

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

3

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

8шт.

4

A37517

GASKET,0.79mm Thk

- adapter housing

1шт.

5

G10711

PIN

- dowel, 1/2 x 3/4" (Rear)

1шт.

6

A29426

AXLE PIN

PIN - dowel, 3/8 x 3/4" (Front)

1шт.

7

165-104

SCREW - 7/16 x 3/4" N.C. sckt. hd. (Pump mtg.)

1шт.

8

165-106

SCREW - 7/16 x 1" N.C. sckt. hd. (Pump mtg.)

1шт.

9

211-14

BALL,9/16" Dia

- drop check, . 9/16" Dia

1шт.

10

A35442

VALVE SPRING

SPRING - drop check valve

1шт.

11

A27927

OIL PAN GASKET SET

- plug, drop check valve

1шт.

12

138-104

LOCK PIN,3/16" x 2", Slotted

PIN, 3/16" x 2", Slotted

1шт.

13

A14280

PLUG

- drop check valve

1шт.

14

A35617

GASKET

- cover

1шт.

15

A35443

RIVET

COVER - housing (w/o remote valves)

1шт.

16

221-1849

PLUG

- 1/8" P.T. sckt. hd.

1шт.

17

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.C. hex.

7шт.

18

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- 5/16 x 1-3/4" N.C. hex.

1шт.

19

92-5

LOCK WASHER,5/16"

WASHER - , lock 5/16"

8шт.

20

86512512

PLUG,7/8" - 14 ORB

Assy, Cover, Incl. Ref. 21 Hex Hd, 7/8"-14 ORB

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 3/4 x 15/16 x 3/32"

1шт.

22

221-1032

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG - 3/8" P.T. sckt. hd.

1шт.

23

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - 3/4 x 15/16 x 3/32"

1шт.

24

G16785

RING

- dowel, 15/32 x 5/8 x 3/16"

2шт.

25

G45460

PUMP

ASSY. - hydraulic (See Figure 146)

1шт.

26

G16797

GEAR

- pump drive

1шт.

27

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

1шт.

28

G46176

SNAP RING,#56, Ext

RING - Snap, , gear to pump #56, Ext

1шт.

29

A37337

TUBE - suction, pump

1шт.

30

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

31

92-5

LOCK WASHER,5/16"

WASHER - , lock 5/16"

2шт.

32

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

"O" RING - 7/8 x 1-1/8 x 1/8"

1шт.

33

A39578

HYDRAULIC OIL FILTER

ELEMENT - filter, hyd. oil (Replaces A36524)

1шт.

34

A36523

CAP

- retainer, filter element

1шт.

35

13-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

1шт.

36

A29993

VALVE SPRING

SPRING - retainer, filter element

1шт.

37

A29884

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

"O" RING - 2-3/8 x 2-5/8 x 1/8"

1шт.

38

G1248

COVER

CAP - cover, oil filter

1шт.

39

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

40

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

4шт.

41

41-200

PLUG - pump opening (w/o hyd. pump) (21/32" exp.)

1шт.

45

A38386

HOUSING

COVER - torque tube, top (Use w/o remote hydraulics or draft-o-matics)

1шт.

46

A37517

GASKET,0.79mm Thk

- torque tube cover (Replaces A38387)

1шт.
