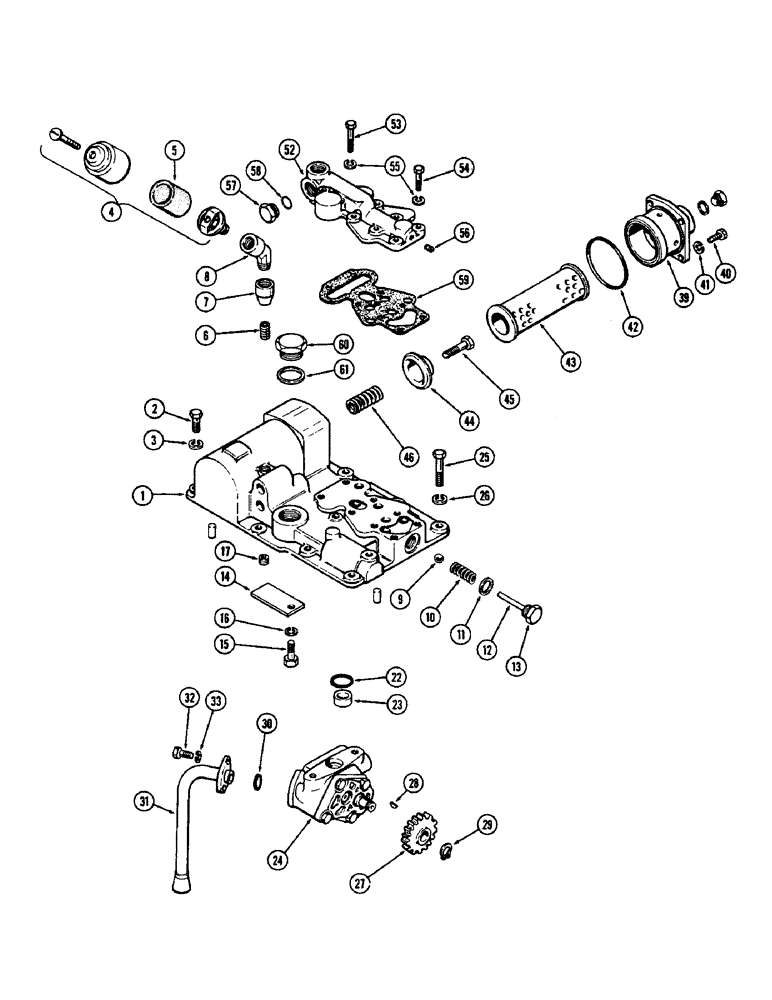

Запчасти Case 580 (142) - HYDRAULIC PUMP AND ADAPTER, STANDARD CLUTCH (35) - HYDRAULIC SYSTEMS

1

A37790

HOUSING

- adapter, hydraulic

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

9шт.

2

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

2

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

3

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

11шт.

4

A9238

BREATHER

ASSY. - oil, Inlcudes: Ref. 5

1шт.

5

A10059

FILTER, ELEMENT

ELEMENT - filter

1шт.

6

221-1130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - pipe, 1/4" P.T. x 7/8"

1шт.

7

221-731

COUPLING - reducer, Serial Range: 3/4"-1/4"

1шт.

8

221-402

ELBOW,45 Degree, 1/4"-27, NPT

- street, 1/4" x 45 degrees

1шт.

9

211-14

BALL,9/16" Dia

- drop check (.) 9/16" Dia

1шт.

10

A35427

SPRING

- drop check valve

1шт.

11

A27927

OIL PAN GASKET SET

- plug, drop check valve

1шт.

12

138-106

LOCK PIN,3/16" x 2 1/2", Slotted

PIN, 3/16" x 2 1/2", Slotted

1шт.

13

A14280

PLUG

- drop check valve

1шт.

14

G10922

BAFFLE - oil

1шт.

15

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

16

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

17

221-1032

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG - 3/8" P.T. socket hd.

1шт.

22

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - pump to adapter (1 x 1-1/4 x 1/8")

1шт.

23

G10929

BUSHING

- dowel, Serial Range: pump-housing

1шт.

24

A35081

PUMP

ASSY. - hydraulic (Repairs Figure 146)

1шт.

25

13-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

2шт.

26

92-7

LOCK WASHER,7/16"

2шт.

27

A35082

GEAR

- pump drive

1шт.

28

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

1шт.

29

G46176

SNAP RING,#56, Ext

RING - Snap, , gear to pump #56, Ext

1шт.

30

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

"O" RING - suction tube to pump (7/8 x 1-1/8 x 1/8")

2шт.

31

A35213

TUBE

- suction, pump

1шт.

32

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

33

92-5

LOCK WASHER,5/16"

WASHER - , lock 5/16"

2шт.

39

A35108

CAP

- cover, oil filter

1шт.

40

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

41

92-5

LOCK WASHER,5/16"

WASHER - , lock 5/16"

4шт.

42

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - cap to housing (3 x 3-1/4 x 1/8")

1шт.

43

A39578

HYDRAULIC OIL FILTER

ELEMENT - filter, hydraulic oil (Replaces A36524)

1шт.

44

A36523

CAP

- retainer, filter element

1шт.

45

13-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

1шт.

46

A29993

VALVE SPRING

SPRING - retainer, filter element

1шт.

52

A35425

COVER ASSY

COVER - housing (w/o remote valves)

1шт.

53

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- 5/16 x 1-3/4" N.C. hex. hd.

1шт.

54

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.C. hex. hd.

7шт.

55

92-5

LOCK WASHER,5/16"

WASHER - , lock 5/16"

8шт.

56

221-1849

PLUG

- 1/8" P.T. socket hd.

1шт.

57

86512512

PLUG,7/8" - 14 ORB

Assy, Cover, Incl. Ref. 58 Hex Hd, 7/8"-14 ORB

1шт.

58

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - plug (3/4 x 15/16 x 3/32")

1шт.

59

A35617

GASKET

- cover

1шт.

60

A38315

PLUG

- dipstick opening (Replaces G10349)

1шт.

61

A38660

GASKET

- plug (Replaces G10351)

1шт.
