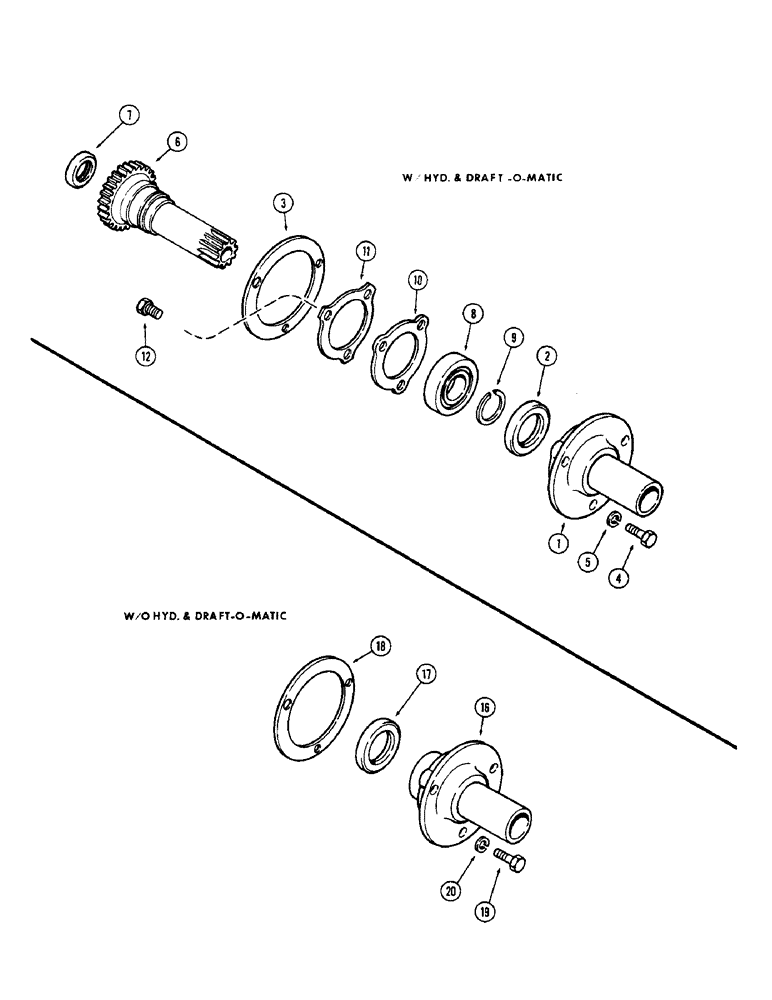

Запчасти Case 580 (082) - HYDRAULIC PUMP DRIVE, STANDARD CLUTCH, USED MODELS W/HYD. OR DRAFTOMATIC (35) - HYDRAULIC SYSTEMS

1

A37612

HOUSING

CARRIER - hydraulic pump drive

1шт.

2

A37615

OIL SEAL

- oil, carrier (1-7/8 x 2-3/4 x 1/4")

1шт.

3

G10407

GASKET

- carrier

1шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Carrier Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

5

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

3шт.

6

A37610

GEAR

- pump drive

1шт.

7

A37611

OIL SEAL

- oil, drive gear (1-3/8 x 2-1/8 x 7/16")

1шт.

8

G10418

BEARING, BALL

BEARING - drive gear

1шт.

9

A27089

SNAP RING,2.36mm Thk, Ext

RING - snap, drive gear brg. ret.

1шт.

10

A37616

RETAINER

CAP - bearing retainer

1шт.

11

G10382

LOCK

- bearing cap

1шт.

12

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

Lock to carrier Hex, 5/16"-18 x 1/2", G5, Full Thd

3шт.

16

A38634

CARRIER

ASSY., used models w/out hyd. or draftomatic 1st used trac. ser. no. 8356762, Inlcudes: Ref. 17

1шт.

17

A37611

OIL SEAL

- oil (1-3/8 x 2-1/8 x 7/16"), used models w/out hyd. or draftomatic 1st used trac. ser. no. 8356762

1шт.

18

G10407

GASKET

- carrier, used models w/out hyd. or draftomatic 1st used trac. ser. no. 8356762

1шт.

19

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Carrier, used models w/out hyd. or draftomatic 1st used tractor S/N 8356762 Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

20

92-6

LOCK WASHER,3/8"

WASHER - , lock, used models w/out hyd. or draftomatic 1st used trac. ser. no. 8356762 3/8"

3шт.
