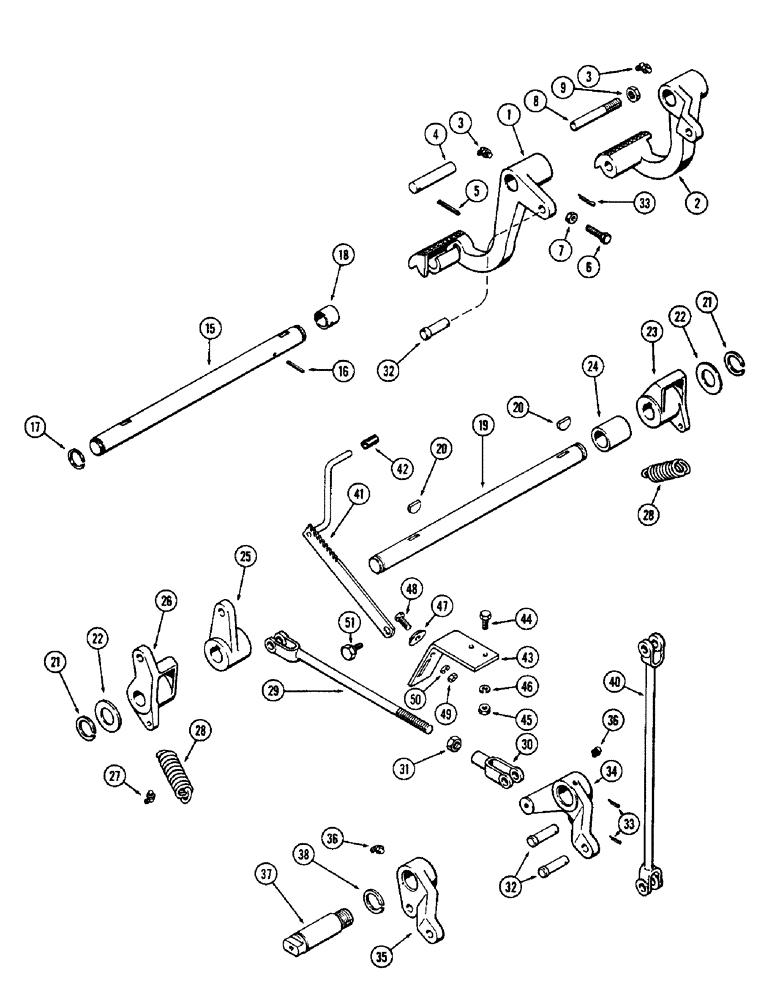

Запчасти Case 580 (118) - BRAKE PEDALS AND LINKAGE, STANDARD CLUTCH (33) - BRAKES & CONTROLS

1

A37228

PEDAL - R.H. brake

1шт.

2

A37229

PEDAL

- L.H. brake

1шт.

3

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

4

A37240

PIN - interlock, brake pedal

1шт.

5

135-344

PIN, GROOVED

PIN - groove, 3/16 x 1-3/4"

1шт.

6

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Pedal stop Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

7

25-145

JAM NUT,Jam, 5/16"-18, G5

- jam, 5/16" N.C.

1шт.

8

A37241

STUD

- pedal stop

1шт.

9

25-148

JAM NUT,Jam, 1/2"-13, G5

- jam, 1/2" NC hex

1шт.

15

A37701

SHAFT

- cross, brake pedal

1шт.

16

138-65

LOCK PIN,1/8" x 1 1/2", Slotted

PIN, , Cross shaft to support 1/8" x 1 1/2", Slotted

1шт.

17

A37235

SNAP RING,#100, .941", Ext

RING - snap, pedal shaft

1шт.

18

A37530

BUSHING

- pedal shaft

2шт.

19

G10708

SHAFT

- cross, lower brake lever

1шт.

20

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

Lever to shaft #15, 1/4" x 1", HT

2шт.

21

F62093

RING, SNAP

RING - snap, lever cross shaft

2шт.

22

B18145

WASHER

- cross shaft (1-7/8" O.D. x 1-3/32" I.D.)

2шт.

23

G1057

LEVER

- L.H. brake (L.H. of shaft)

1шт.

24

G16783

SPACER

- L.H. lever

1шт.

25

A37230

LEVER

- L.H. brake (R.H. of shaft)

1шт.

26

A37231

LEVER

- R.H. brake

1шт.

27

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

28

G10848

SPRING

- lever return

2шт.

29

A37239

ROD

- brake, Serial Range: lever-pivot

2шт.

30

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - rod to pivot lever

2шт.

31

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam, 1/2" N.F. hex.

2шт.

32

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke

8шт.

33

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

8шт.

34

A37233

LEVER - pivot, L.H. brake rod

1шт.

35

A37490

PLASTIC PLUG

LEVER - pivot, R.H. brake rod

1шт.

36

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

37

A37491

SHAFT

- stub, pivot lever

1шт.

38

103-11125

SNAP RING,#125, Ext

RING - snap, pivot shaft

1шт.

40

A37238

ROD

- brake, Serial Range: pedal-pivot

2шт.

41

A37248

RATCHET

- brake lock release

1шт.

42

A23953

TIP

- release lever

1шт.

43

A37251

GUIDE

- ratchet

1шт.

44

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

45

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

2шт.

46

92-5

LOCK WASHER,5/16"

WASHER - , lock 5/16"

2шт.

47

A29920

PAWL

- brake lock

1шт.

48

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

49

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

50

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

1шт.

51

A37252

STEP BOLT

BOLT - shoulder, ratchet

1шт.
