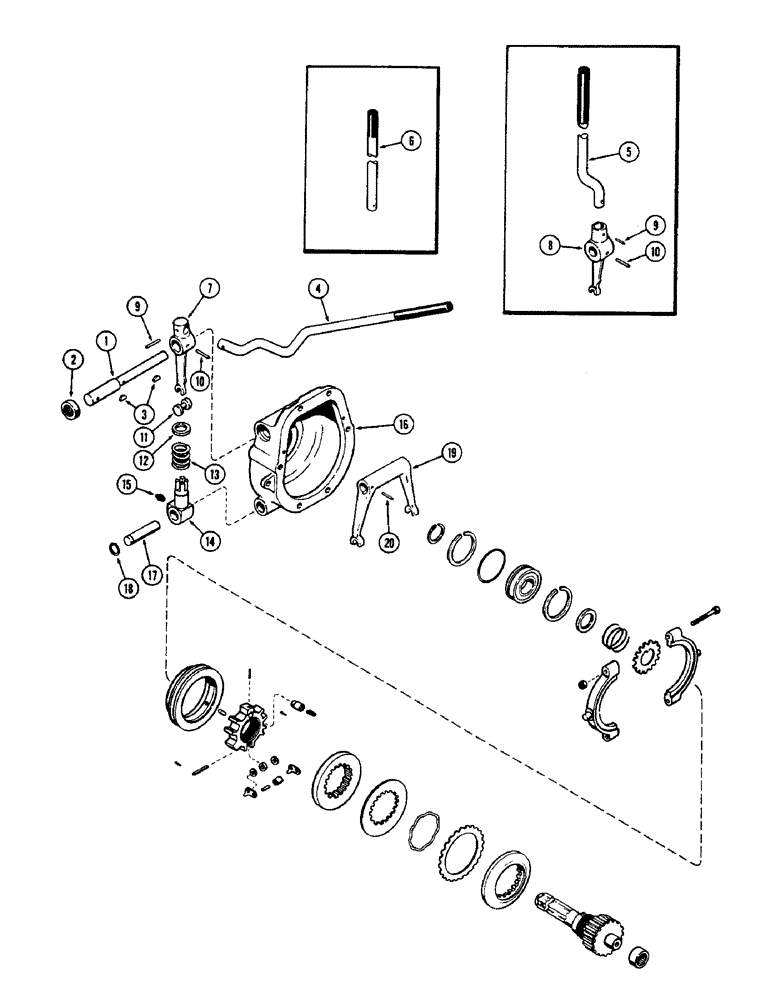

Запчасти Case 580 (160) - INDEPENDENT P.T.O. CLUTCH & LINKAGE (27) - REAR AXLE SYSTEM

1

A37696

SHAFT

- cross, clutch control

1шт.

2

G13818

OIL RESERVOIR

SEAL - oil, cross shaft (1 x 1-1/2 x 5/16")

1шт.

3

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

KEY - Woodruff, #16 (Throwout yoke)

2шт.

4

A39083

LEVER

- hand, P.T.O. throwout (Horizontal) (1st used trans. ser. no. 2354464) (Used w/A39084 brake lever)

1шт.

5

A38143

LEVER - hand, P.T.O. throwout (Vertical, offset) (Used w/A37697 brake lever) (1st used trac. ser. no. 8307516) (Also used prior to trans. ser. no. 2354464)

1шт.

6

A37320

LEVER - hand, P.T.O. throwout (Vertical, straight) (Used w/A37697 brake lever) (Used prior to trac. ser. no. 8307516)

1шт.

7

A39084

LEVER

- brake (Used w/A39083 hand lever) (1st used trans. ser. no. 2354464)

1шт.

8

A37697

LEVER - brake (Used w/A38143 & A37320 hand lever) (Used prior to trans. ser. no. 2354464)

1шт.

9

138-115

LOCK PIN,7/32" x 1 1/8", Slotted

PIN, LOCK, 7/32" x 1-1/8", Slotted, Hand lever to brake lever

1шт.

10

138-158

LOCK PIN,5/16" x 1 5/8", Slotted

PIN - , brake lever to cross shaft 5/16" x 1 5/8", Slotted

1шт.

11

A37684

AXLE PIN

PIN - over center lock

1шт.

12

A38412

WASHER

- thrust, actuator spring (Replaces A37683)

1шт.

13

A37699

SPRING

- brake actuator

1шт.

14

A37698

ARM

- pivot, brake lever

1шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

1шт.

16

A37677

HOUSING ASSY. - rear, Inlcudes: Ref. 17

1шт.

17

A37679

SHAFT

- brake pivot, P.T.O.

1шт.

18

B18206

SNAP RING,#87, Ext

RING - Snap, , brake lever shaft #87, Ext

1шт.

19

A37682

YOKE

- throwout

1шт.

20

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

PIN - 3/16" x 5/8", Slotted

1шт.
