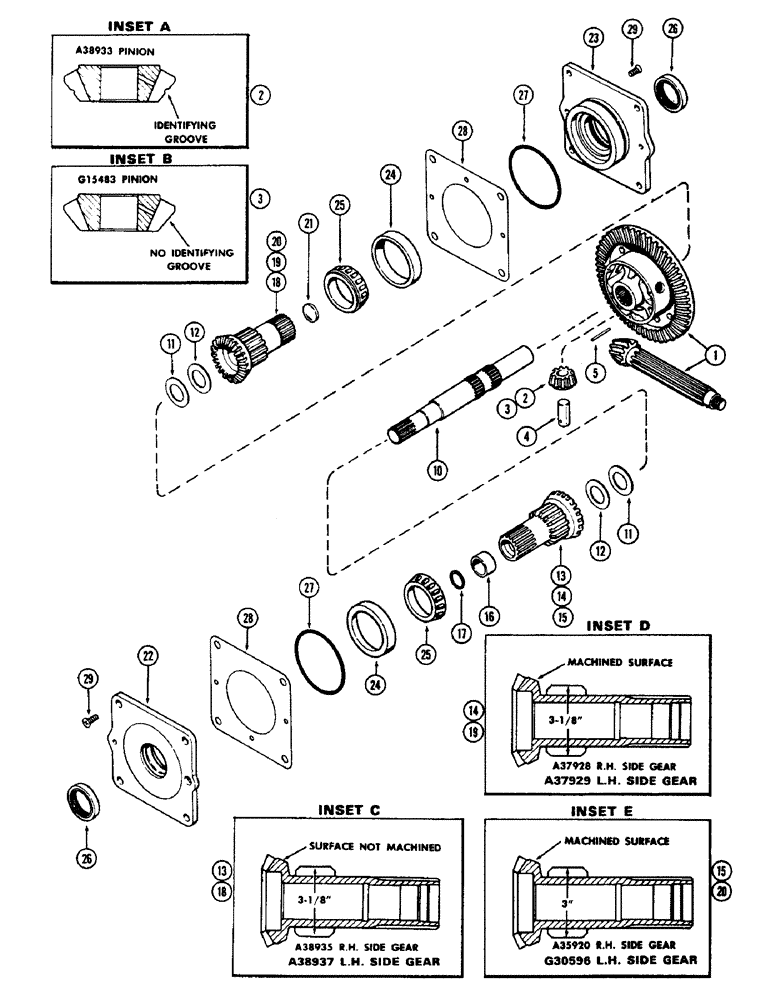

Запчасти Case 580 (114) - DIFFERENTIAL WITH LOCK (27) - REAR AXLE SYSTEM

1

A39266

GEAR, BEVEL

RING GEAR & COUNTERSHAFT - matched set (Replaces A37196 and A38401)

1шт.

2

A38933

GEAR

- pinion (w/identification groove) (See inset A) (Used w/A38935 & A38937 side gears) (1st used trac. ser. no. 8683849)

3шт.

3

G15483

GEAR

- pinion (w/out identification groove) (See inset B) (Used w/G30596, A35920, A37928 & A37929 side gears) (Used prior to trac. ser. no. 8683849)

1шт.

4

A39024

SHAFT

- pinion gear (Replaces A37097)

3шт.

5

138-2036

PIN,3/16" x 2", Coiled

3шт.

10

A35918

SHAFT

- cross, differential

1шт.

11

A39012

WASHER,42.04mm ID x 60.2mm OD x 2.32mm Thk

- thrust, center wheel (.089") (Replaces A30539)

1шт.

If a .010 shim is req'd. use A29388

1шт.

11

A39007

WASHER

- thrust, center wheel (.094") (Replaces A30498)

1шт.

11

A39008

WASHER

- thrust, center wheel (.099") (Replaces A30533)

1шт.

11

A39009

WASHER

- thrust, center wheel (.104") (Replaces A30045)

1шт.

11

A39010

WASHER

- thrust, center wheel (.109") (Replaces A30543)

1шт.

11

A39011

WASHER

- thrust, center wheel (.119") (Replaces A30051)

1шт.

12

A29388

WASHER

SHIM - thrust washer (.010")

1шт.

13

A38935

GEAR

ASSY. - right hand side (See inset C) (3-1/8" spur gear dia. without machined surface) (Used w/A38933 pinion gear & A37925 final drive gear) (1st used trac. ser. no. 8683849) (Incl. item 16)

1шт.

14

A37928

GEAR WHEEL

GEAR ASSY. - right hand side (See inset D) (3-1/8" spur gear dia. with machined surface) (Use w/G15483 pinion gear & A37925 final drive gear) (Use trac. ser. nos. 8309386 to 8683849) (Incl. item 16)

1шт.

15

A35920

GEAR WHEEL

GEAR ASSY. - right hand side (See inset E) (3" spur gear dia. with machined surface) (Use w/G15483 pinion gear & G30353 final drive gear) (Used prior to trac. ser. no. 8309386)

1шт.

16

A35921

BUSHING,34.89mm ID x 39.83mm OD x 20.65mm L

- R.H. side gear

1шт.

17

A35919

OIL SEAL

oil, R.H. side gear (1-3/8 x 1-5/8 x 1/8")

2шт.

18

A38937

PINION

GEAR ASSY. - left hand side (See inset C) (3-1/8" spur gear dia. without machined surface) (Use w/A38933 pinion gear & A37925 final drive gear) (1st used trac. ser. no. 8683849) (Incl. item 21), Includes: Ref. 21

1шт.

19

A37929

GEAR

ASSY. - left hand side (See inset D) (3-1/8" spur gear dia. with machined surface) (Use w/G15483 pinion gear & A37925 final drive gear) (Used trac. ser. no. 8309386 to 8683849) (Incl. item 21), Includes: Ref. 21

1шт.

20

G30596

GEAR

ASSY. - left hand side (See inset E) (3" spur gear dia. with machined surface) (Use w/G15483 pinion gear & G30353 final drive gear), Includes: Ref. 21

1шт.

(Used prior to trac. ser. no. 8309386)

1шт.

21

A29902

PLUG

- L.H. side gear (1-5/8" exp.)

1шт.

22

G30490

CARRIER

ASSY. - brg., R.H. side gear (Incl. item 24)

1шт.

23

G30491

CARRIER

ASSY. - bearing, L.H. side gear

1шт.

24

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing

1шт.

25

A30114

CONE

- bearing, side gear

2шт.

26

A39273

OIL SEAL

- oil, bearing carrier (Replaced G10689)

2шт.

27

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - bearing carrier (5 x 5-1/4 x 1/8")

2шт.

28

A39289

SHIM,.007" Thk

Bearing carrier (.003") .007" Thk

1шт.

28

G10719

SHIM,.005" Thk

Bearing carrier .005" Thk

1шт.

28

G10720

SHIM,.010" Thk

Bearing carrier .010" Thk

1шт.

29

171-237

SCREW,Cross Flat Hd, 3/8" - 16 x 3/4", W/ Nylon Insert

- (3/8 x 3/4" Phillips hd.)

4шт.
