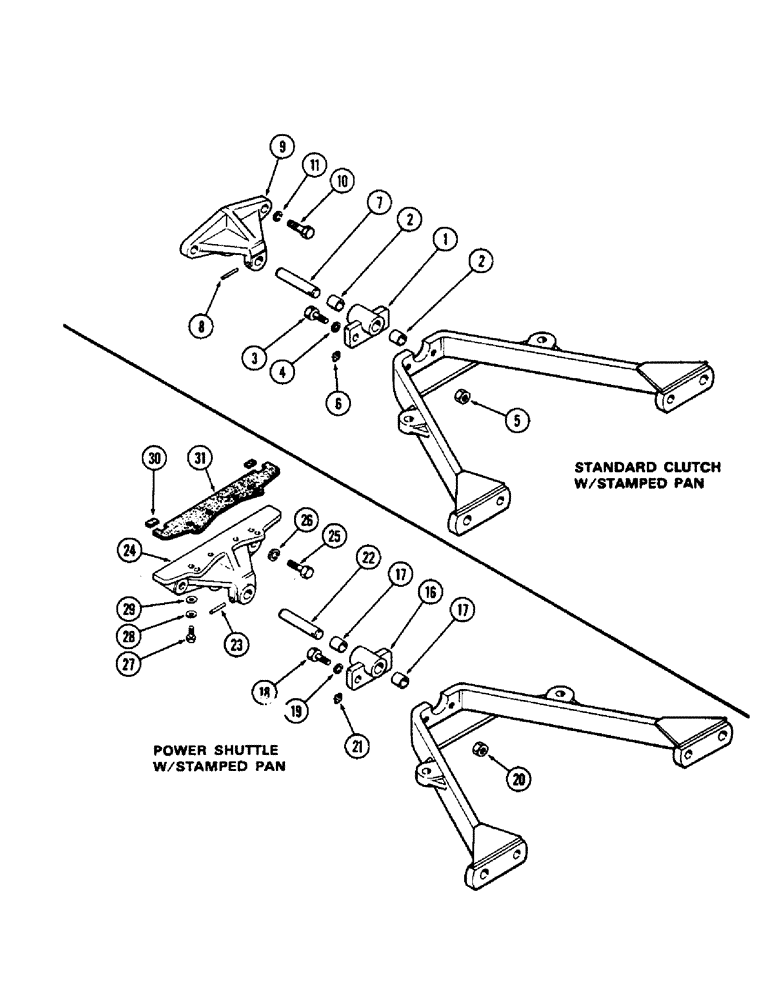

Запчасти Case 580 (123C) - FRONT AXLE, REAR RADIUS ROD PIVOT, STANDARD CLUTCH W/STAMPED PAN (25) - FRONT AXLE SYSTEM

1

A38199

PIVOT

ASSY. - rear, radius rod, Includes: Ref. 2

1шт.

2

A29944

BUSHING

- rear pivot

2шт.

3

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

25-1010

NUT,5/8"-11, G5

2шт.

6

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. x 45 degrees

1шт.

7

A29725

PIN

- rear pivot

1шт.

8

135-361

GROOVED PIN,1/4" x 2", Type F

PIN - Grooved, 1/4" x 2", Type F

1шт.

9

A35599

BRACKET

SUPPORT - rear pivot

1шт.

10

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

16

A38199

PIVOT

ASSY. - rear, radius rod, Includes: Ref. 17, power shuttle w/ stamped pan

1шт.

17

A29944

BUSHING

- rear pivot, power shuttle w/ stamped pan

2шт.

18

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Power shuttle w/ stamped pan Hex, 5/8"-11 x 2 1/4", G5

2шт.

19

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Power shuttle w/ stamped pan 5/8"

2шт.

20

25-1010

NUT,5/8"-11, G5

Power shuttle w/ stamped pan 5/8"-11, G5

2шт.

21

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. x 45 degrees, power shuttle w/ stamped pan

1шт.

22

A29725

PIN

- rear pivot, power shuttle w/ stamped pan

1шт.

23

135-361

GROOVED PIN,1/4" x 2", Type F

PIN - Grooved, , power shuttle w/ stamped pan 1/4" x 2", Type F

1шт.

24

A35573

BRACKET

SUPPORT - rear pivot (w/power shuttle), power shuttle w/ stamped pan

1шт.

25

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Power shuttle w/ stamped pan Hex, 5/8"-11 x 2 1/4", G5

2шт.

26

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Power shuttle w/ stamped pan 5/8"

2шт.

27

A38202

BOLT

- front axle rear pivot bracket to engine, power shuttle w/ stamped pan

4шт.

28

92-5

LOCK WASHER,5/16"

WASHER - , lock, power shuttle w/ stamped pan 5/16"

2шт.

29

195-400

WASHER

- sealing, 5/16" bolt, power shuttle w/ stamped pan

2шт.

30

A11604

OIL PAN GASKET SET

- pivot support to oil pan, power shuttle w/ stamped pan

2шт.

31

A36653

GASKET

- pivot support to oil pan, power shuttle w/ stamped pan

1шт.
