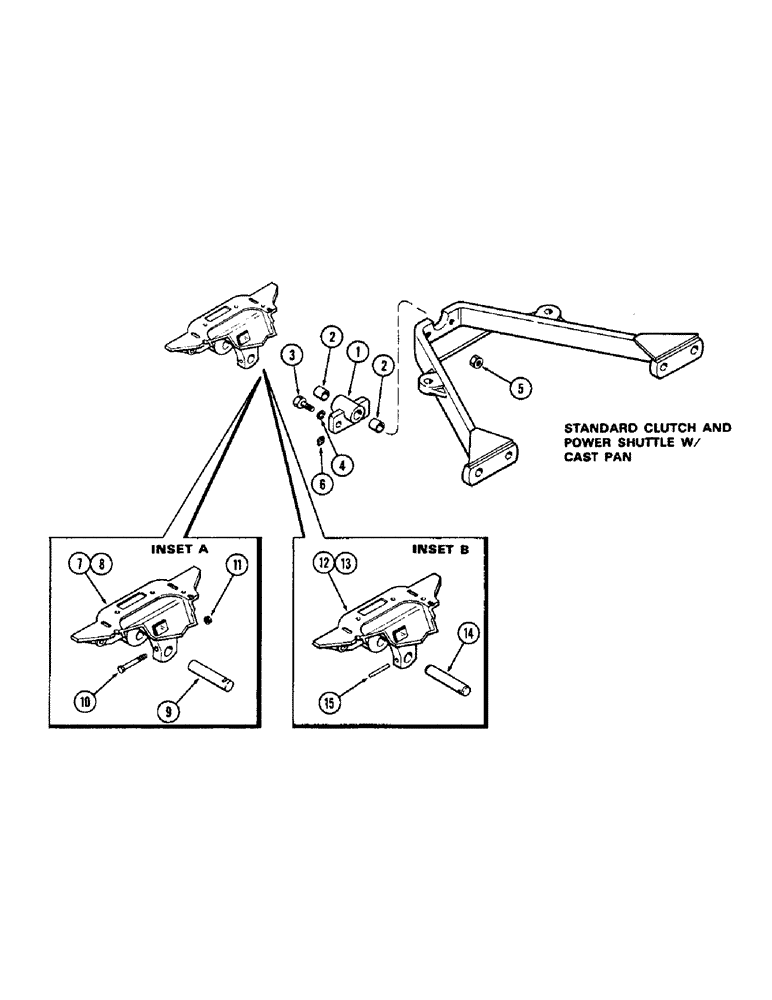

Запчасти Case 580 (123A) - FRONT AXLE, REAR RADIUS ROD PIVOT, STANDARD CLUTCH & POWER SHUTTLE W/CAST OIL PAN (25) - FRONT AXLE SYSTEM

1

A38199

PIVOT

ASSY. - rear, radius rod, Includes: Ref. 2

1шт.

2

A29944

BUSHING

- rear pivot

2шт.

3

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

25-1010

NUT,5/8"-11, G5

2шт.

6

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. x 45 degrees

1шт.

7

A51538

PAN

- oil (Spark) (Replaces A38426) (See inset A)

1шт.

8

A51539

PAN

- oil (Diesel) (Replaces A38425) (See inset A)

1шт.

9

A51537

PIN

- pivot, radius rod, rear

1шт.

10

26-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 8

- (5/16 x 2-3/4" N.C. hex.)

1шт.

11

131-351

LOCK NUT,5/16"-18, GA

NUT - lock (5/16" N.C. hex.)

1шт.

12

A38426

PAN

- oil (Spark) (Order 1-A51538 oil pan, 1-A51537 pivot pin, 1-26-544 bolt & 1-131-351 nut) (See inset B)

1шт.

13

A38425

PAN

- oil (Diesel) (Order 1-A51539 oil pan, 1-A51537 pivot pin, 1-26-544 bolt & 1-131-351 nut) (See inset B)

1шт.

14

A51356

PIN

- rear pivot (Replaced A29725)

1шт.

15

135-361

GROOVED PIN,1/4" x 2", Type F

PIN - Grooved, 1/4" x 2", Type F

1шт.
