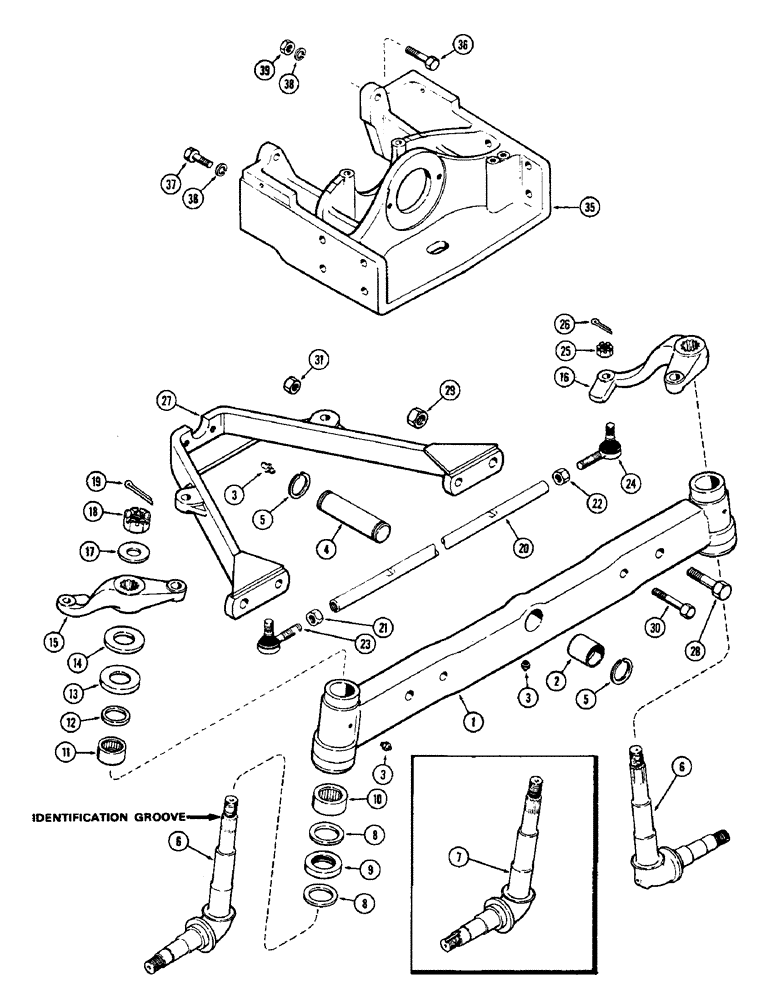

Запчасти Case 580 (122) - FRONT AXLE (25) - FRONT AXLE SYSTEM

1

A38382

AXLE, FRONT

AXLE ASSY. - front (w/2 grease fitting holes) (Used w/A38384 pin) (1st used trac. ser. no. 8358563), Includes: Ref. 2

1шт.

1

A36280

X

AXLE ASSY. - front (w/3 grease fitting holes) (Used w/A35975 pin) (Used prior to trac. ser. no. 8358563) (Order 1-A38382 axle & 1-A38384 pin), Includes: Ref. 2

1шт.

2

A36282

BUSHING,44.3mm ID x 56.21mm OD x 50.8mm L

- pivot

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

3шт.

4

A38384

PIN,44.09mm OD x 168.4mm L

- pivot (w/grease fitting hole) (Must be used w/A38382 front axle) (1st used trac. ser. no. 8358563)

1шт.

4

A35975

X

PIN - pivot (w/o grease fitting hole) (Used w/A36280 axle) (Used prior to trac. ser. no. 8358563) (Order A38384)

1шт.

5

A27085

RING

- snap, pivot pin

2шт.

6

A135648

SPINDLE

- front wheel (w/o keyway & w/ident. groove) (Replaces A39821)

2шт.

7

A57248

SPINDLE

- front wheel (w/keyway & w/o ident. groove) (Order A135648 spindle & A62918 washer)

1шт.

8

A36565

WASHER,51.2mm ID x 66.67mm OD x 6.35mm Thk

- thrust, spindle

4шт.

9

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

BEARING - thrust, wheel spindle (2 x 2-15/16 x 5/8")

2шт.

10

A28230

NEEDLE BEARING,Needle, 50.78mm ID x 60.34mm OD x 25.4mm W

BEARING - lower, spindle (2 x 2-3/8 x 1")

2шт.

11

A28229

NEEDLE BEARING,Needle, 44.44mm ID x 53.99mm OD x 25.4mm W

BEARING - upper, spindle (1-3/4 x 2-1/8 x 1")

2шт.

12

A27754

OIL SEAL

- oil, upper, spindle (1-3/4 x 2-1/8 x 3/16")

2шт.

13

A35344

SHIELD

- dust, spindle bearing

2шт.

14

A35345

SHIM,.0359" Thk

Wheel spindle (#20 gauge) .0359" Thk

1шт.

14

A35346

SHIM,.0598" Thk

Wheel spindle (16 gauge) .0598" Thk

1шт.

14

A35861

SHIM,.0149" Thk

Wheel spindle (28 gauge) .0149" Thk

1шт.

15

A37926

ARM

- steering, R.H.

1шт.

16

A37927

ARM

- steering, L.H.

1шт.

17

A35047

WASHER

- spindle nut

2шт.

18

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - 1-1/8" N.F. hex. sltd.

2шт.

19

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

20

A39120

TIE-ROD

TUBE - tie rod, 1-1/8" O.D. (Used w/8 bolt hub)

1шт.

20

A35567

TUBE

- tie rod, 1" O.D. (Used w/6 bolt hub)

1шт.

21

G49084

JAM NUT

- lock, R.H. tie rod end (11/16"-23 R.H. thread)

1шт.

22

G49085

JAM NUT

- lock, L.H. tie rod end (11/16"-23 L.H. thread)

1шт.

23

G45368

END ASSY.

END - tie rod, R.H.

1шт.

24

G45369

END ASSY.

END - tie rod, L.H.

1шт.

25

25-139

SLOTTED NUT,9/16"-18, G5

NUT - 9/16" N.F. hex. sltd.

2шт.

26

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

27

A36283

ROD

RADIUS ROD

1шт.

28

13-1664

BOLT,Hex, 1" - 8 x 4", Gr 5

2шт.

29

25-1616

NUT,1"-8, G5, Hvy

- 1" N.C. hex.

2шт.

30

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

2шт.

31

25-1012

NUT,3/4"-10, G5

2шт.

35

A39319

SUPPORT - front axle & radiator (Replaces A38302) (1st used trac. ser. no. 8343245)

1шт.

35

A36895

SUPPORT

- front axle & radiator (Used prior to trac. ser. no. 8343245) (Order 1-A39319 support & 2-A38303 bolts)

1шт.

36

113-633

SCREW

BOLT - 5/8 x 2-1/4" N.C. hex. (Lower)

2шт.

113-633 bolt - Change description to read (upper).

1шт.

37

A38303

BOLT

BOLT - 5/8 x 3-13/64" N.C. hex. (Upper) (Used w/A39319 support)

2шт.

A38303 bolt - Change description to read (lower).

1шт.

37

113-651

BOLT

- 5/8 x 3" N.C. hex. (Upper) (Used w/A36895 support)

2шт.

113-651 bolt - Change description to read (lower).

1шт.

38

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER - Shakeproof, 5/8" ext.

4шт.

39

25-1610

NUT,5/8"-11, G5, Hvy

- 5/8" N.C. hex.

2шт.
