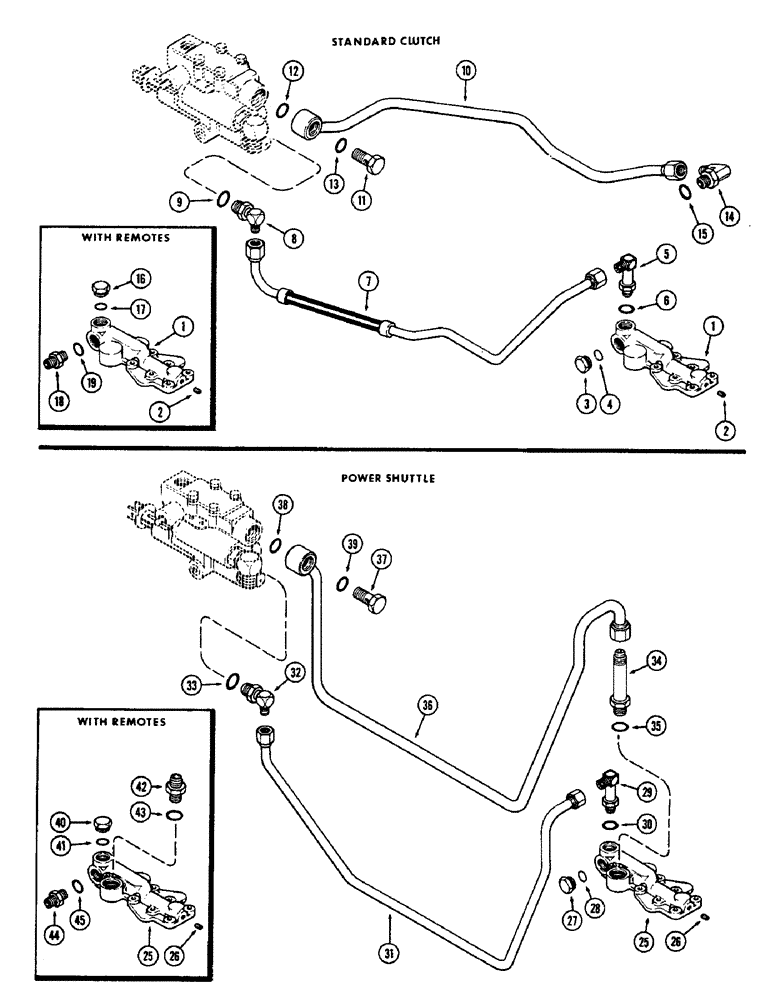

Запчасти Case 580 (139A[1]) - POWER SHUTTLE (21) - TRANSMISSION

1

A35425

COVER ASSY

COVER - adapter or valve

1шт.

2

221-1849

PLUG

- 3/8" P.T. socket hd.

1шт.

3

86512512

PLUG,7/8" - 14 ORB

Assy Hex Hd, 7/8"-14 ORB

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - plug (3/4 x 15/16 x 3/32")

1шт.

5

D23143

FITTING

ELBOW ASSY. - pressure tube

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (3/4 x 15/16 x 3/32")

1шт.

7

A37355

TUBE - pressure

1шт.

8

A37067

ELBOW ASSY. - pressure, Serial Range: tube-valve

1шт.

9

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

"O" RING - (1-3/64 x 1-9/32 x 1/8")

1шт.

10

A35490

TUBE

- return

1шт.

11

A35553

SCREW

- return, Serial Range: tube-valve

1шт.

12

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

"O" RING - inner, return tube (1-1/4 x 1-1/2 x 1/8")

1шт.

13

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

"O" RING - outer, return tube (1-1/16 x 1-5/16 x 1/8")

1шт.

14

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSY. - return tube

1шт.

15

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (15/16 x 1-5/32 x 1/8")

1шт.

16

86512512

PLUG,7/8" - 14 ORB

Assy, Cover Hex Hd, 7/8"-14 ORB

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (3/4 x 15/16 x 3/32")

1шт.

18

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSY. - pressure tube

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (3/4 x 15/16 x 3/32")

1шт.

25

A35443

RIVET

COVER - adapter or valve

1шт.

26

221-1849

PLUG

- 3/8" P.T. sckt. hd.

1шт.

27

86512512

PLUG,7/8" - 14 ORB

Assy Hex Hd, 7/8"-14 ORB

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - plug (3/4 x 15/16 x 3/32")

1шт.

29

D23143

FITTING

ELBOW ASSY. - pressure tube

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - elbow (3/4 x 15/16 x 3/32")

1шт.

31

A37894

TUBE - pressure

1шт.

32

A37067

ELBOW ASSY. - pressure, Serial Range: tube-valve

1шт.

33

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

"O" RING - elbow (1-3/64 x 1-9/32 x 1/8")

1шт.

34

A35446

CONNECTOR ASSY. - return tube

1шт.

35

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (15/16 x 1-5/32 x 1/8")

1шт.

36

A37857

TUBE - return

1шт.

37

A35553

SCREW

- return, Serial Range: tube-valve

1шт.

38

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

"O" RING - inner, return tube (1-1/4 x 1-1/2 x 1/8")

1шт.

39

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

"O" RING - outer, return tube (1-1/16 x 1-5/16 x 1/8")

1шт.

40

86512512

PLUG,7/8" - 14 ORB

Assy, Cover Hex Hd, 7/8"-14 ORB

1шт.

41

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - plug (3/4 x 15/16 x 3/32")

1шт.

42

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSY. - pressure tube

1шт.

43

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - connector (3/4 x 15/16 x 3/32")

1шт.

44

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY. - return tube

1шт.

45

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - connector (15/16 x 1-5/32 x 1/8")

1шт.
