Артикул
Название
Примечание
Количество
1
A36582

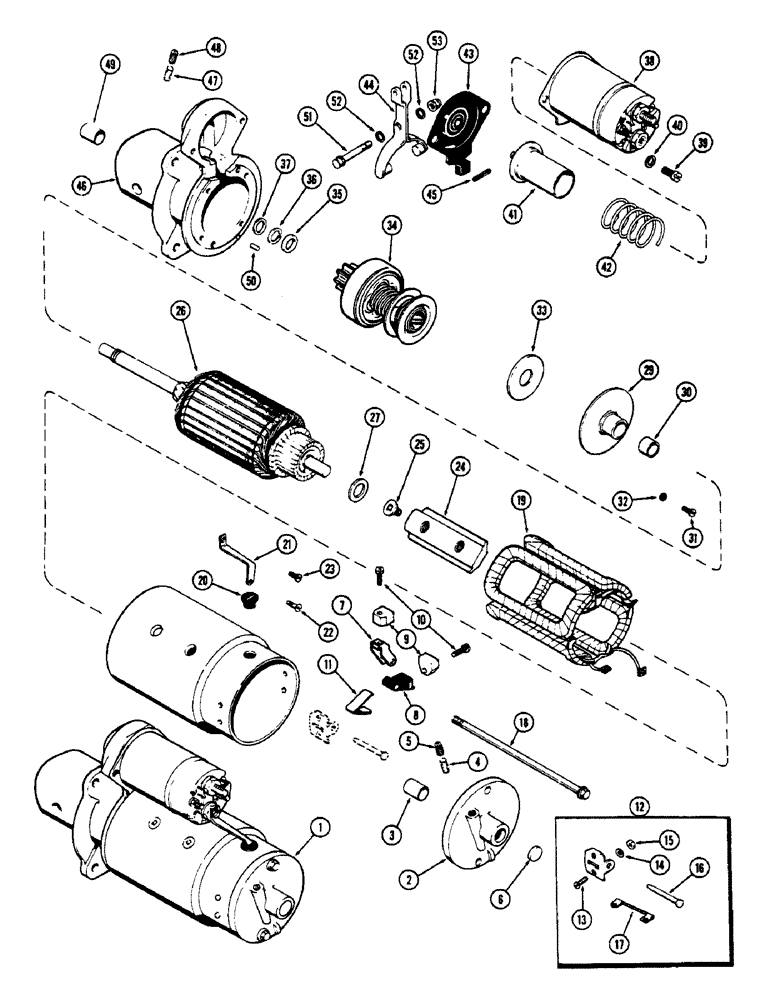

SPARE PART STARTER ASSY. - (Delco-Remy #1107584) (Order A36583) (See Figure 64) (See Figure 65C for rebuilt starter kit), Includes: Ref. 2 - 53
1шт.
1
104198A2R
REMAN-STARTER
Remanufactured Starter
1шт.
1
104198A1C
CORE-STARTER
Return Part Number
1шт.
2
A25304
FRAME
HEAD ASSY. - commutator end, Includes: Ref. 3 - 6
1шт.
3
R15020
BUSHING
BUSHING
1шт.
4
A41979
WICK
WICK - oil
1шт.
5
221-1041
PLUG
PLUG - oil wick hole (1/8" P.T., sltd. hd.)
1шт.
6
R15021
PLUG
PLUG - bushing hole
1шт.
7
R40217
HOLDER - brush, ground
1шт.
8
R15027
HOLDER
HOLDER - brush, insulated
1шт.
9
A25356
BRUSH, COMMUTATOR
BRUSH BRUSH
4шт.
10
D32481
SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW
SCREW - brush to holder
4шт.
11
A25359
SPRING
SPRING - brush tension
2шт.
12
A25379
KIT
SUPPORT KIT - brush holder, Includes: Ref. 13 - 17
2шт.
13
173-212
SCREW,Sl Rnd Hd, #10 - 24 x 1/2"
SCREW - brush support (#10 x 1/2" N.C., rd. hd.)
2шт.
14
192-18
LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND
WASHER, LOCK, #10
2шт.
15
R15032
X
NUT - #10 N.C. hex
2шт.
16
A41983
PIN
PIN -, Serial Range: holder-support
1шт.
17
A42494
ELECTRICAL WIRE
WIRE LEAD - brush ground (#12 wire, 1-5/8" long)
1шт.
18
A25552
BOLT
BOLT - thru
2шт.
19
A25319
COIL
COIL ASSY. - field
1шт.
20
A41980
GROMMET
GROMMET - coil connector (In frame)
1шт.
21
A40225
CONNECTOR, ELEC
CONNECTOR CONNECTOR -, Serial Range: coil-solenoid
1шт.
22
173-221
SCREW,Sl Rnd Hd, #10 - 32 x 7/16"
SCREW - connector to coil (#10 x 7/16" N.F. rd. hd.)
1шт.
23
A42023
SCREW,#10 - 32 x 1/2"
SCREW -, Serial Range: connector-solenoid
1шт.
24
A25391
SHOE
SHOE - pole
1шт.
25
74-610
SCREW,3/8" - 24 x 5/8"
SCREW - pole shoes
8шт.
26
A40219
ARMATURE
ARMATURE
1шт.
27
A41917
WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk
WASHER - brake, commutator end
1шт.
A40215
PLATE ASSY.
PLATE ASSY. - center bearing, Includes: Ref. 29 and 30
1шт.
29
NSS
NOT SOLD SEPARAT
PLATE - center bearing (Order A40215)
1шт.
30
A42125
BUSHING
BEARING - center
1шт.
31
A41959
SCREW,#10 - 32 x 3/8"
SCREW - center brg. to drive hsg.
2шт.
32
193-42
WASHER, LOCK,Ext-Int Tooth, #10
WASHER - #10 ext./int. skpf.
2шт.
33
R15043
WASHER
WASHER - thrust, center bearing
1шт.
34
A41871
DRIVE
DRIVE ASSY. - starter
1шт.
35
R15049
COLLAR
COLLAR - stop, starter drive
1шт.
36
R15048
RING
RING - snap, collar retaining
1шт.
37
A25385
WASHER
WASHER - thrust, starter drive
1шт.
38
G44891
SOLENOID
SOLENOID ASSY - (See Figure 65C)
1шт.
39
A42023
SCREW,#10 - 32 x 1/2"
SCREW - solenoid to drive hsg.
2шт.
40
192-18
LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND
WASHER, LOCK, #10
2шт.
41
A40218
PLUNGER
PLUNGER - solenoid
1шт.
42
A40221
SPRING
SPRING - plunger return
1шт.
43
A42126
GASKET
BOOT - solenoid cover
1шт.
44
A40220
LEVER
LEVER - shift (Replaces A25397)
1шт.
45
138-93
LOCK PIN,3/16" x 13/16", Slotted
Pin, , lever to plunger 3/16" x 13/16", Slotted
1шт.
46
A40226
FRAME
HOUSING ASSY. - drive end, Includes: Ref. 47 - 49
1шт.
47
R15023
WICK
WICK - oil (Replaces R15129)
1шт.
48
221-1041
PLUG
PLUG - oil wick hole (1/8" P.T. sltd. hd.)
1шт.
49
A25387
BEARING
BUSHING - (15/32 x 5/8 x 13/16")
1шт.
50
R15041
SPARE PART PIN - locating, drive end hsg.
1шт.
51
A40520
BOLT
PIVOT - shift lever
1шт.
52
A42181
SEALING WASHER
SEAL - pivot stud
2шт.
53
425-145
JAM NUT,Jam, 5/16"-18, G5
NUT, , Pivot stud Jam, 5/16"-18, G5
1шт.
Выбрано товаров: 55
