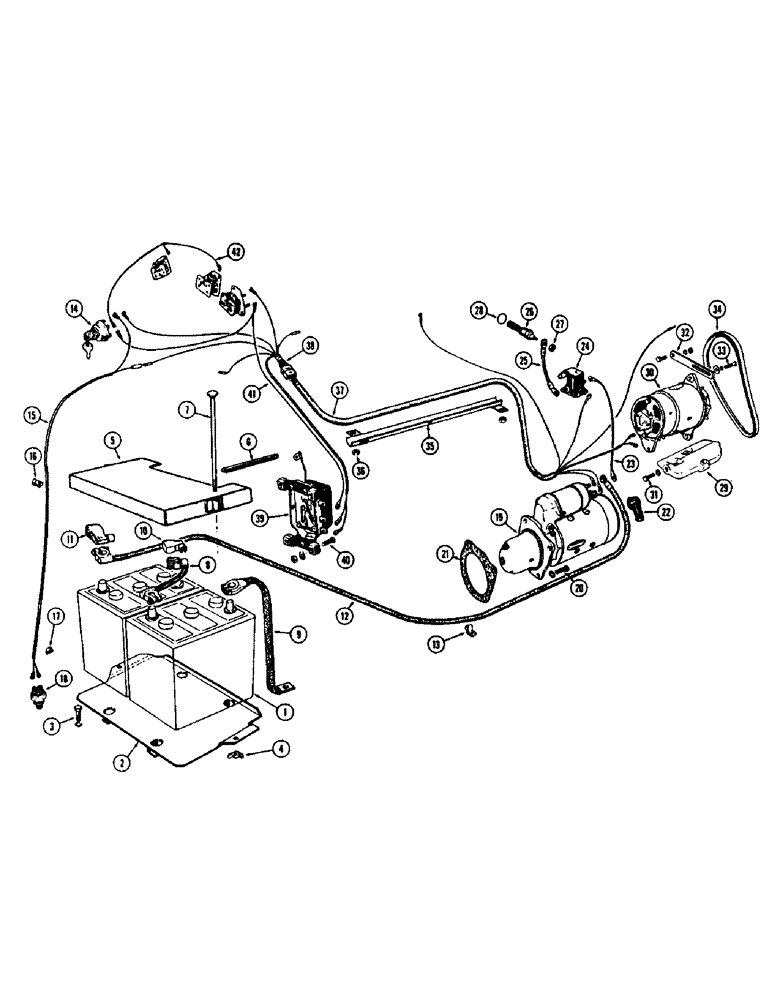

Запчасти Case 530CK (060) - ELECTRICAL SYSTEM, (188) DIESEL ENGINE (55) - ELECTRICAL SYSTEMS

1

1M-105R

BATTERY - 6 volt

2шт.

2

G30295

PAN - battery base

1шт.

3

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex. hd.

4шт.

4

G49020

NUT

- wing, cover bolt (5/16" N.C.)

2шт.

5

G30296

COVER ASSY

COVER - battery, Inlcudes: Ref. 6

1шт.

6

G46881

MOULDING - rubber

2шт.

7

111-213

CARRIAGE BOLT,Short NK, 5/16"-18 x 9", G2

BOLT - 5/16" x 9" rd. hd. sq. nk.

2шт.

8

G44055

CABLE PULLING GRIP

CABLE -, Serial Range: battery-battery

1шт.

9

A29987

STRAP

- ground, Serial Range: -8232882

1шт.

9

A36368

STRAP

- ground, Start Serial: 8232882

1шт.

10

G46880

COVER

- terminal (ER)

1шт.

11

G46879

COVER

- terminal (EL)

2шт.

12

G44049

CABLE

- batt. to solenoid, Serial Range: -8232882

1шт.

12

A27987

CABLE

- batt. to solenoid, Start Serial: 8232882

1шт.

13

A26696

NO LONGER SERVICED

CLIP - battery cable

1шт.

14

A24510

SWITCH

- starting (Order 1-A38959 switch & 1-A24509 key)

1шт.

15

G44066

CABLE

- safety switch

1шт.

16

A27211

CLIP - cable to fuel tank

1шт.

17

G46047

CLIP - cable to battery pan

1шт.

18

A20990

SWITCH

- safety, neutral start

1шт.

19

G44927

STARTING MOTOR - (Delco 1107516) Order A36583

1шт.

19

A36582

STARTING MOTOR - (Delco 1107584) Order A36583

1шт.

19

A36583

STARTER MOTOR

STARTING MOTOR - (Delco 1107583)

1шт.

20

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" x 2" N.C. hex. hd.

3шт.

21

G46873

GASKET

- starting motor (w/torque conv.)

1шт.

22

A21753

CAP

NIPPLE - terminal

1шт.

23

A36896

CABLE PULLING GRIP

CABLE - starter to heater solenoid

1шт.

24

A57069

SOLENOID

- heater switch (Replaces A21481)

1шт.

25

A21483

CABLE

- solenoid to manifold heater

1шт.

26

A37775

HEATER

- manifold, Includes: Ref. 27

1шт.

27

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

28

A20916

MANIFOLD GASKET

GASKET -, Serial Range: heater-manifold

1шт.

29

A38746

BRACKET

- generator mounting (Replaces G2131)

1шт.

30

G44877

GENERATOR - (Delco #1100385) Order A36563

1шт.

30

A36563

GENERATOR

- (Delco #1100443)

1шт.

31

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

32

A37017

STRAP

- generator adjusting

1шт.

33

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N.F. hex. hd.

1шт.

34

G46238

BELT,0.55" W x 17.78" L

Generator Drive 0.55" W x 17.78" L

1шт.

35

A20411

CONDUIT - master cable

1шт.

36

25-104

NUT,1/4"-20, G5

- 1/2" N.C. hex.

2шт.

37

A35304

HARNESS

CABLE - master, lower half

1шт.

38

A35305

CABLE

- master, upper half

1шт.

39

G44856

REGULATOR

- voltage (Replaces G44889)

1шт.

39

A35233

REGULATOR

- voltage, Start Serial: 8232882

1шт.

40

14-424

SCREW,Hex, 1/4" - 28 x 1 1/2", Gr 5

BOLT - 1/4" x 1-1/2" N.F. hex. hd.

4шт.

41

G44051

CABLE PULLING GRIP

CABLE -, Serial Range: switch-regulator

1шт.

42

G44057

CABLE - temp. & fuel, Serial Range: gauge-switch

1шт.
