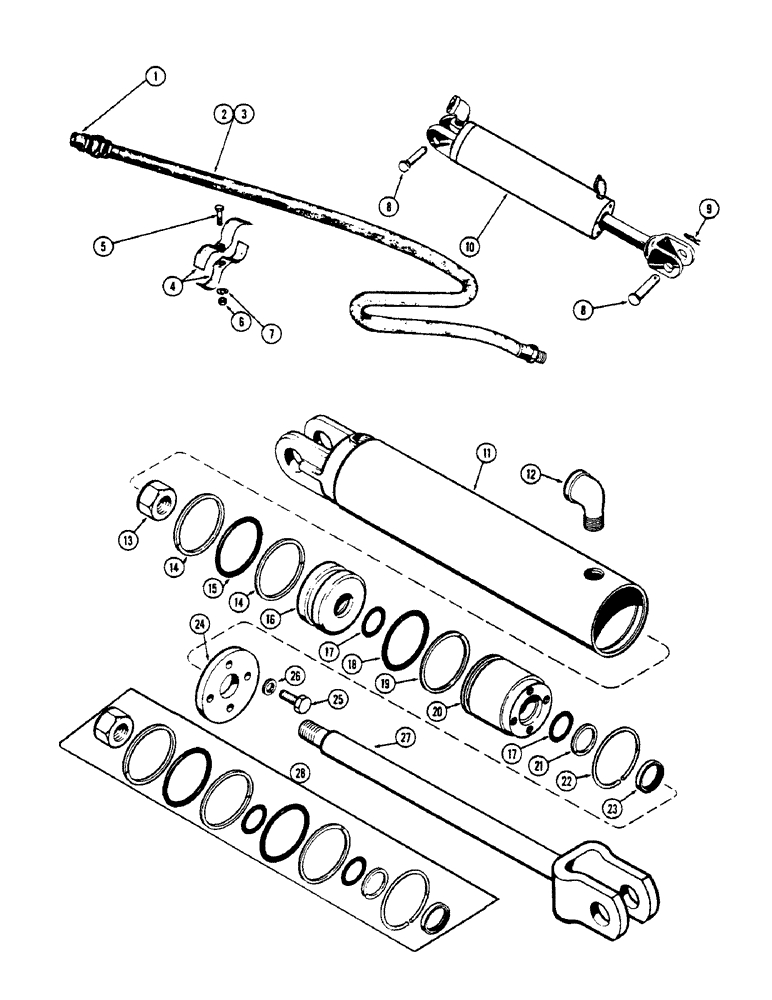

Запчасти Case 530CK (140) - 2-1/2" X 8" REMOTE HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
A28541
COUPLING, BREAK AWAY
COUPLING - male (For repairs see Figure 138)
1шт.
2
A20816
HOSE
- tractor to cylinder (92")
1шт.
3
A20817
HOSE
- tractor to cylinder (104")
1шт.
4
A27440
CLAMP
- remote hose
2шт.
5
14-512
BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd
1шт.
6
25-115
NUT,5/16"-24, G5
- 5/16" NF hex
1шт.
7
92-5
LOCK WASHER,5/16"
std., Incl. Ref 8 5/16"
1шт.
8
A23555
O-RING,2.984" ID x 3.262" OD x 0.139"
"O" RING - head
1шт.
9
A29054
HAIR PIN COTTER
- cotter, coupling pin
2шт.
10
A35900
CYLINDER - remote hydraulic, Includes: Ref. 11 - 27
1шт.
11
A35893
CYLINDER
TUBE ASSY. - cylinder
1шт.
12
221-561
ELBOW
- reduceing, 1/2" x 3/8"
2шт.
13
230-46112
LOCK NUT,3/4"-16, GA
NUT - lock, piston (3/4" N.F.)
1шт.
Part of Repair Kit, P/N A24671
1шт.
14
A35810
RING
- piston
2шт.
Part of Repair Kit, P/N A24671
1шт.
15
A30971
O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro
"O" RING - piston (2-1/2" O.D.)
1шт.
Part of Repair Kit, P/N A24671
1шт.
16
A35897
PISTON ASSY.
PISTON
1шт.
17
A7623
O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro
"O" RING - piston rod (1-1/4" O.D.)
2шт.
Part of Repair Kit, P/N A24671
1шт.
18
A14506
O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro
"O" RING - inner head (2-1/2" O.D.)
1шт.
Part of Repair Kit, P/N A24671
1шт.
19
A35901
RING
- back-up (2-1/2" O.D.)
1шт.
Part of Repair Kit, P/N A24671
1шт.
20
A35895
HEAD - inner
1шт.
21
A35899
RING
- back-up (1-1/4" O.D.)
1шт.
Part of Repair Kit, P/N A24671
1шт.
22
A35898
RING, SNAP
SNAP RING -, Serial Range: head-cylinder
1шт.
Part of Repair Kit, P/N A24671
1шт.
23
A35902
OIL SEAL
- piston rod
1шт.
Part of Repair Kit, P/N A24671
1шт.
24
A35896
PLATE - end
1шт.
25
13-514
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
4шт.
26
92-5
LOCK WASHER,5/16"
std. 5/16"
4шт.
27
A35894
ROD - piston
1шт.
28
A24671
KIT
- repair (Includes ref. 13, 14, 15, 17, 18, 19, 21, 22, 23)
1шт.
