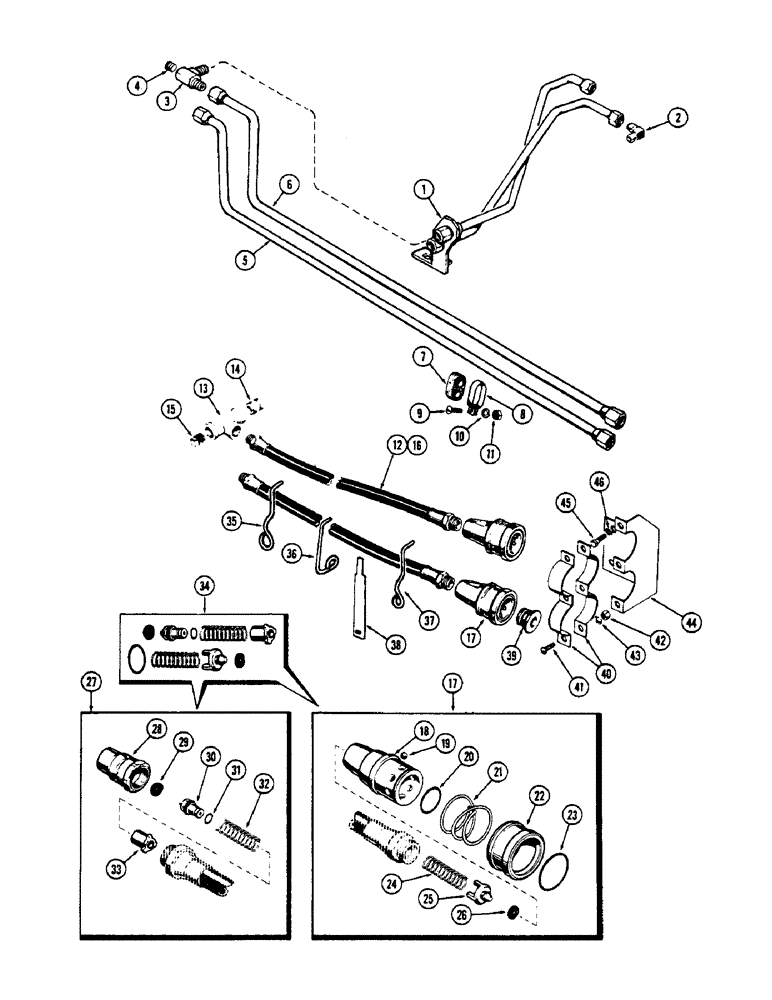

Запчасти Case 530CK (138) - HYDRAULIC FRONT HOSE AND COUPLINGS (35) - HYDRAULIC SYSTEMS

1

A35612

MANIFOLD - cross-over (w/torque conv.)

1шт.

2

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

- tube to valve (w/torque converter)

2шт.

3

A35607

TEE - cross-over (w/torque conv.)

2шт.

4

221-1483

PLUG - tee fitting (w/torque conv.)

2шт.

5

A35720

TUBE - lower (w/torque conv.)

1шт.

6

A35719

SPLIT PIN/SAFETY PIN

TUBE - upper (w/torque conv.)

1шт.

7

G46835

GROMMET

- rubber, tube clamp

1шт.

8

G46194

CLAMP

- tube

1шт.

9

173-24

SCREW - #10-32 x 3/4" rd. hd.

1шт.

10

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

11

129-17

NUT,Hex, #10 - 24

NUT - #10-32 hex.

1шт.

12

A35453

HOSE - tube to coupling (22") (w/torque conv.)

2шт.

13

221-423

TEE,3/8" NPT

hose to valve (w/std. clutch) 3/8" NPT

2шт.

14

221-160

FITTING

NIPLE - 3/8" P.T. x 1-3/8" (w/std. clutch)

2шт.

15

221-1843

PLUG

- 3/8" P.T. socket hd. (w/std. clutch)

2шт.

16

A35438

HOSE

- valve to coupling (62") (w/std. clutch)

2шт.

17

A28542

COUPLING, QUICK, FEM

SOCKET - break-away coupling, Includes: Ref. 18 - 26

2шт.

18

A27349

BODY

1шт.

19

211-7

BALL,1/4" Dia

- locking 1/4" Dia

8шт.

20

A34848

O-RING

"O" RING - body

1шт.

21

A27354

SPRING

- ball sleeve

1шт.

22

A27353

SLEEVE

SLEEVE - ball retainer

1шт.

23

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING - sleeve

1шт.

24

A11324

SPRING

- piston

1шт.

25

A26215

PISTON

1шт.

26

A33964

SEAL

- piston

1шт.

27

A28541

COUPLING, BREAK AWAY

PLUG ASSY. - break-away coupling, Includes: Ref. 28 - 33

1шт.

28

A27356

PIPE FITTING

BODY

1шт.

29

A33964

SEAL

1шт.

30

A27508

PISTON

1шт.

31

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING - piston

1шт.

32

A27351

SPRING

- piston

1шт.

33

A9631ASY

SPARE PART

- piston

1шт.

34

A40459

KIT

- repair, break-away couplings (Includes ref. 20, 24, 25, 26, 29, 30, 31, 32, & 33)

1шт.

35

A36402

SUPPORT

- hose (w/std. clutch only)

1шт.

36

G15434

SUPPORT - hose to trans. case

1шт.

37

G10996

SUPPORT - hose to brake cover

1шт.

38

A35209

CLAMP

- hose (w/std. clutch only)

1шт.

39

A22768

PLUG

- dust, socket

1шт.

40

A29224

CLAMP - coupling

2шт.

41

75-416

SCREW,Rd, 1/4" - 20 x 1"

- 1/4" x 3/4" rd. hd.

3шт.

42

25-104

NUT,1/4"-20, G5

3шт.

43

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

44

A35439

BRACKET - coupling

1шт.

45

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

46

92-6

LOCK WASHER,3/8"

2шт.
