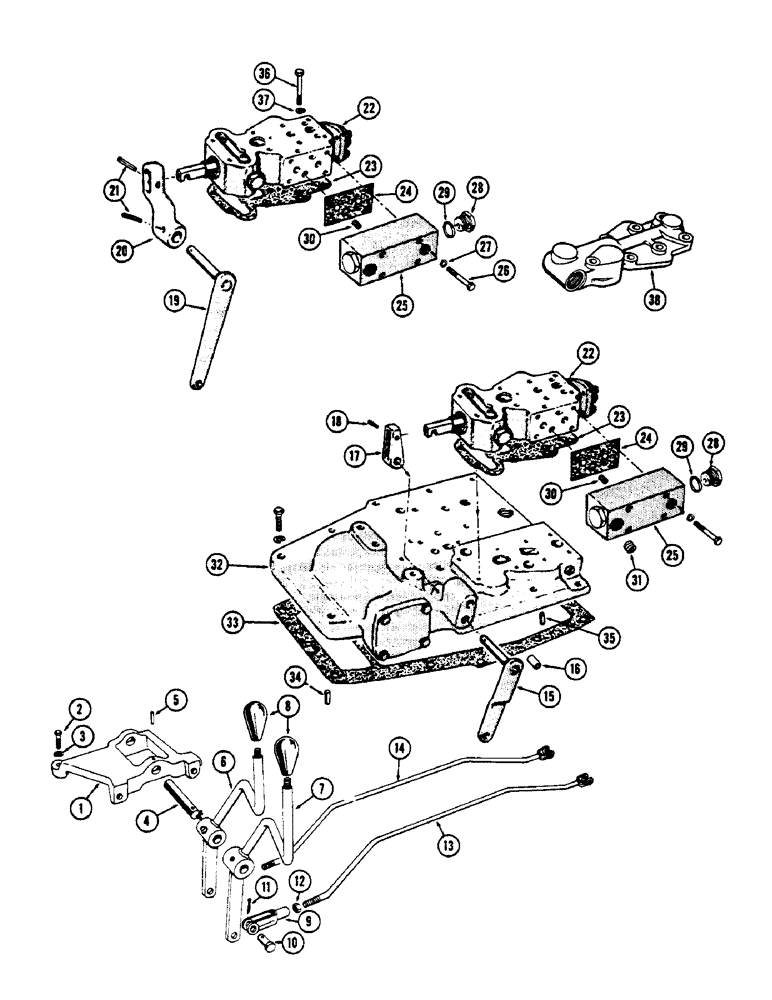

Запчасти Case 530CK (136) - REMOTE HYDRAULIC CONTROLS TORQUE CONVERTER DRIVE (35) - HYDRAULIC SYSTEMS

1

A35478

BRACKET

mounting, hand lever

1шт.

2

16-632

SCREW,Hex, 3/8" - 24 x 2"

BOLT 3/8" x 2" N.C. hex. hd.

2шт.

3

92-6

LOCK WASHER,3/8"

std. 3/8"

2шт.

4

A35488

SHAFT

pivot, hand lever

1шт.

5

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

6

A35481

LEVER hand, inner

1шт.

7

A35485

LEVER hand, outer

1шт.

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - 1/4" str. drive

2шт.

8

A14051

GRIP

KNOB hand lever

2шт.

9

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE rod to lever

2шт.

10

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

11

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

12

25-116

NUT,Hex, 3/8"-24, G5

3/8" N.F. hex.

2шт.

13

A35480

ROD control, outer (Upper valve)

1шт.

14

A35479

ROD control, inner (Lower valve)

1шт.

15

A35448

CRANK

inner control rod to lower valve

1шт.

16

A35428

CRANKSHAFT BEARING,0.504" ID x 0.6285" OD x 5"

BUSHING crank

4шт.

17

G1108

ARM ASSY.

BELLCRANK lower valve spool

1шт.

18

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

2шт.

19

A35449

CRANK outer control rod to upper valve

1шт.

20

G1107

CRANK

BELLCRANK upper valve spool

1шт.

21

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

2шт.

22

A35618

LOCK VALVE

VALVE control

2шт.

23

A35617

GASKET

- valve

3шт.

24

G10930

GASKET

, Serial Range: manifold-valve

2шт.

25

A35437

MANIFOLD

valve

2шт.

26

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

6шт.

13-538

SCREW,Hex, 5/16" - 18 x 2 3/8", Gr 5

BOLT 5/16" x 2-3/8" N.C. hex. hd.

2шт.

27

92-5

LOCK WASHER,5/16"

std. 5/16"

8шт.

28

A14280

PLUG

end, manifold

4шт.

29

A27927

OIL PAN GASKET SET

- end plug

4шт.

30

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe, Manifold inner Hex Soc, 1/4"-18 NPTF

2шт.

31

221-843

PLUG,Hex Soc, 3/8"-18

pipe, lower manifold outer port

2шт.

32

A37869

HOUSING

- adapter, (Replaces A35441)

1шт.

33

G46818

GASKET

adapter housing

1шт.

34

G10711

PIN

dowel, adapter hsg rear

1шт.

35

A29426

AXLE PIN

PIN- dowel, adapter housing front

1шт.

36

13-584

BOLT,Hex, 5/16" - 18 x 5-1/4", Gr 5

valve, 5/16" x 5-1/4" N.C. hex. hd.

7шт.

13-592

BOLT,Hex, 5/16" - 18 x 5-3/4", Gr 5

Valve Hex, 5/16"-18 x 5 3/4", G5

1шт.

37

92-5

LOCK WASHER,5/16"

std. 5/16"

8шт.

38

A35440

COVER valve (w/o Draft-O-Matic)

1шт.
