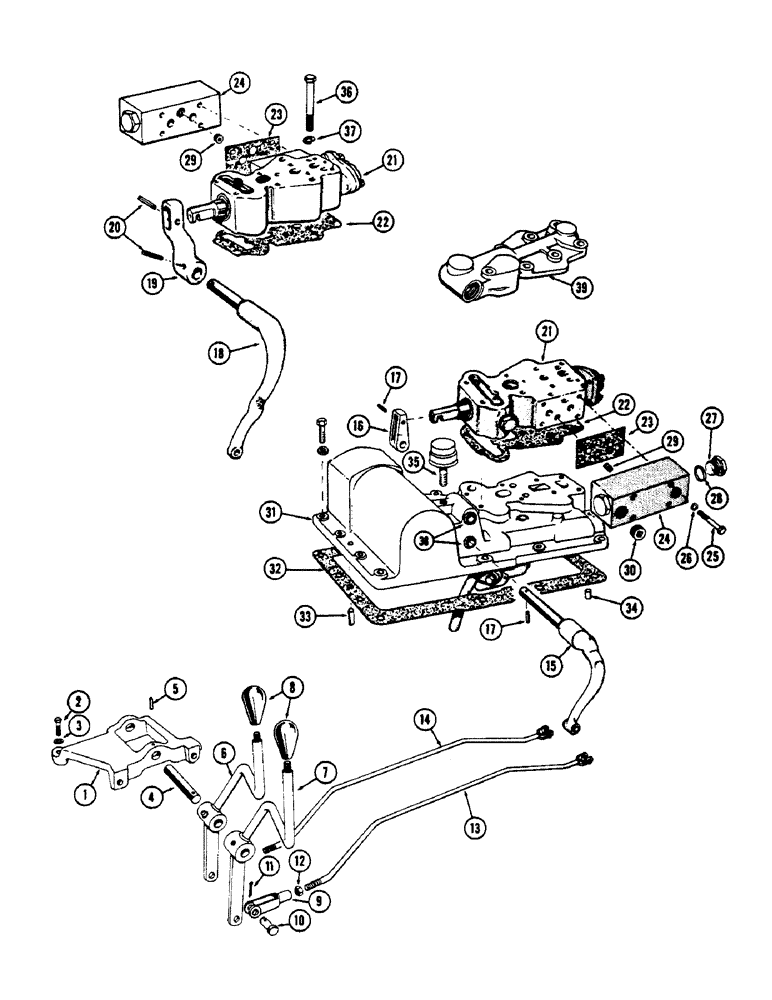

Запчасти Case 530CK (134) - REMOTE HYDRAULIC CONTROLS STANDARD CLUTCH (35) - HYDRAULIC SYSTEMS

1

A35478

BRACKET

mounting, hand lever

1шт.

2

16-632

SCREW,Hex, 3/8" - 24 x 2"

BOLT 3/8" x 2" N.C. hex. hd.

2шт.

3

92-6

LOCK WASHER,3/8"

std. 3/8"

2шт.

4

A35488

SHAFT

pivot, hand lever

1шт.

5

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

6

A35481

LEVER - hand, inner

1шт.

7

A35485

LEVER - hand, outer

1шт.

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - 1/4" str. drive

2шт.

8

A14051

GRIP

KNOB hand lever

2шт.

9

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE rod to lever

2шт.

10

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

11

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

12

25-116

NUT,Hex, 3/8"-24, G5

3/8" N.F. hex.

2шт.

13

A35480

ROD control, outer (Upper valve)

1шт.

14

A35479

ROD control, inner (Lower valve)

1шт.

15

G30632

CRANK inner control rod to lower valve

1шт.

16

G1108

ARM ASSY.

BELLCRANK lower valve spool

1шт.

17

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

2шт.

18

G30634

BUSHING

CRANK outer control rod to upper valve

1шт.

19

G1107

CRANK

BELLCRANK upper valve spool

1шт.

20

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

2шт.

21

A35618

LOCK VALVE

VALVE control

2шт.

22

A35617

GASKET

- valve

3шт.

23

G10930

GASKET

, Serial Range: manifold-valve

2шт.

24

A35437

MANIFOLD

valve

2шт.

25

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

6шт.

13-538

SCREW,Hex, 5/16" - 18 x 2 3/8", Gr 5

BOLT 5/16" x 2-3/8" N.C. hex. hd.

2шт.

26

92-5

LOCK WASHER,5/16"

std. 5/16"

8шт.

27

A14280

PLUG

end manifold

4шт.

28

A27927

OIL PAN GASKET SET

- plug

4шт.

29

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe, Manifold inner Hex Soc, 1/4"-18 NPTF

2шт.

30

221-843

PLUG,Hex Soc, 3/8"-18

pipe, lower manifold outer

2шт.

31

A35424

HOUSING

- adapter, hydraulic (Order 1-A37790, 1-G10349 & 1-G10351)

1шт.

32

G10876

GASKET

adapter housing

1шт.

33

G10711

PIN

dowel, adapter housing rear

1шт.

34

A29426

AXLE PIN

PIN - dowel, adapter housing front

1шт.

35

A27173

BREATHER

- oil

1шт.

36

13-584

BOLT,Hex, 5/16" - 18 x 5-1/4", Gr 5

valve, 5/16" x 5-1/4" N.C. hex. hd.

7шт.

13-592

BOLT,Hex, 5/16" - 18 x 5-3/4", Gr 5

Valve Hex, 5/16"-18 x 5 3/4", G5

1шт.

37

92-5

LOCK WASHER,5/16"

std. 5/16"

8шт.

38

A35428

CRANKSHAFT BEARING,0.504" ID x 0.6285" OD x 5"

BUSHING crank

4шт.

39

A35440

COVER - valve (w/o Draft-O-Matic)

1шт.
