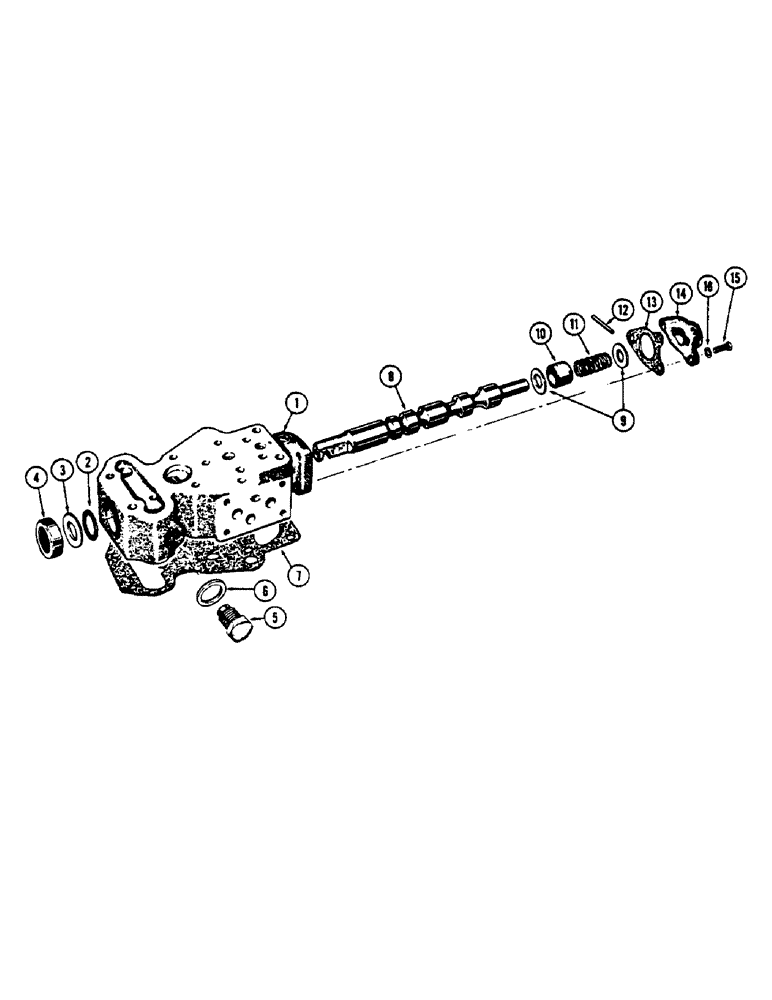

Запчасти Case 530CK (132[1]) - PARTS FOR A35618 CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

A35435

BODY

1шт.

2

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

"O" RING

1шт.

3

G49403

WASHER

retainer, "O" ring

1шт.

4

G13807

OIL SEAL

OIL SEAL

1шт.

5

G10902

PLUG opening

1шт.

6

A31053

COPPER SEAL

GASKET - plug

1шт.

7

A35617

GASKET

valve body

1шт.

8

A35436

SPOOL

1шт.

9

A35302

WASHER spool

2шт.

10

G10901

SLEEVE

stop, spool spring

1шт.

11

A30083

VALVE SPRING

SPRING - valve spool

1шт.

12

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

13

G10903

GASKET

end cap

1шт.

14

G1102

CAP end

1шт.

15

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

16

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.
