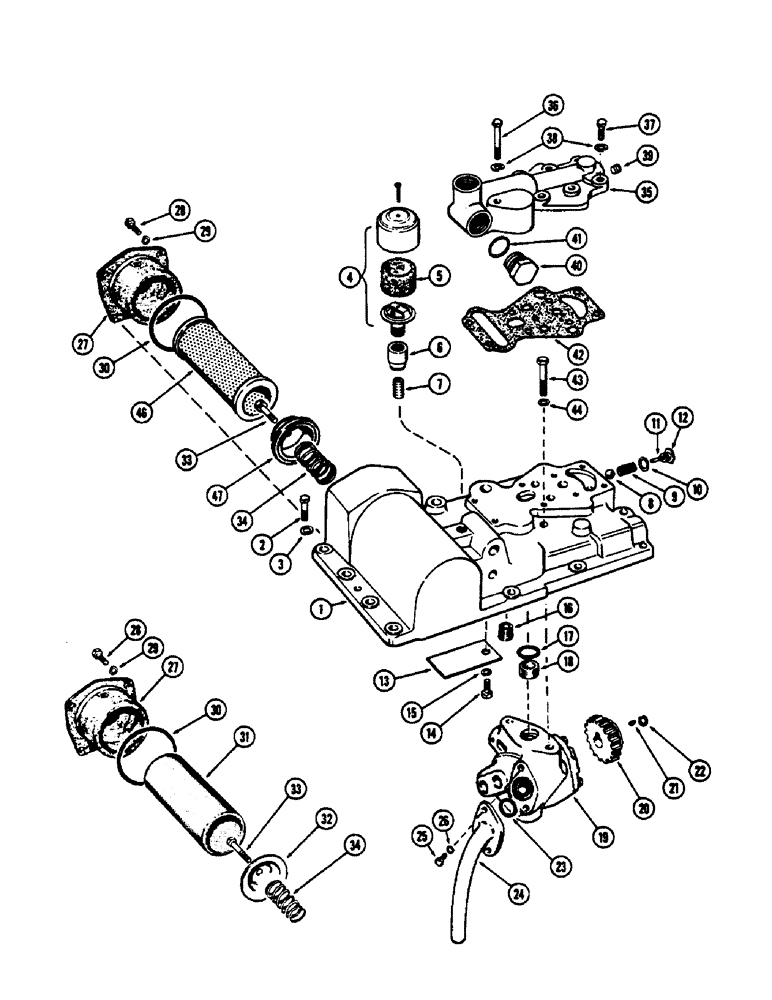

Запчасти Case 530CK (128) - HYDRAULIC PUMP AND ADAPTER STANDARD DRIVE (35) - HYDRAULIC SYSTEMS

1

A35424

HOUSING

- adapter, hydraulic (Order 1-A37790, 1-G10349 & 1-G10351)

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

9шт.

2

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

3

92-6

LOCK WASHER,3/8"

std. 3/8"

11шт.

4

A9238

BREATHER

- oil (Includes ref. 5)

1шт.

5

A10059

FILTER, ELEMENT

ELEMENT - filter, oil breather

1шт.

6

221-731

COUPLING - reducing, 3/4" x 1/2"

1шт.

7

221-130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - pipe, 1/4" P.T. x 7/8" long

1шт.

8

211-14

BALL,9/16" Dia

- drop check valve (.) 9/16" Dia

1шт.

9

A35427

SPRING

- drop check valve

1шт.

10

G10964

WASHER

GASKET - plug, drop check valve

1шт.

11

138-106

LOCK PIN,3/16" x 2 1/2", Slotted

PIN, , Drop check valve 3/16" x 2 1/2", Slotted

1шт.

12

A14280

PLUG

- drop check valve

1шт.

13

G10922

BAFFLE - oil

1шт.

14

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

15

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

16

221-32

PLUG,Sq Soc, 3/8"-18 NPTF

- pipe, 3/8" sq. socket hd. (Short)

1шт.

17

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - pump to adapter

1шт.

18

G10929

BUSHING

- dowel, Serial Range: pump-adapter

1шт.

19

A35081

PUMP

- hydraulic

1шт.

20

A35082

GEAR

- pump drive

1шт.

21

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

1шт.

22

G46176

SNAP RING,#56, Ext

Ring, Snap, , gear to pump #56, Ext

1шт.

23

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

"O" RING - suction tube to pump

1шт.

24

A35213

TUBE

- suction, pump

1шт.

25

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

26

92-5

LOCK WASHER,5/16"

std. 5/16"

2шт.

27

A35108

CAP

- cover, oil filter

1шт.

28

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

29

92-5

LOCK WASHER,5/16"

std. 5/16"

4шт.

30

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - cap to housing

1шт.

31

G13113

ELEMENT,2.25" OD x 6" L

ELEMENT - filter, fiber tube (Order ref, 46 and 47)

1шт.

32

A29236

CYLINDER END CAP

CAP - retainer (w/fiber type element) (See ref. 47)

1шт.

33

13-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

1шт.

34

A29993

VALVE SPRING

SPRING - retainer, filter element

1шт.

35

A35425

COVER ASSY

COVER - valve to housing (w/Draft-O-Matic)

1шт.

36

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- 5/16" x 1-3/4" N.C. hex. hd.

1шт.

37

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16" x 1-1/4" N.C. hex. hd.

7шт.

38

92-5

LOCK WASHER,5/16"

std. 5/16"

8шт.

39

221-1849

PLUG

- pipe, 1/8" socket hd.

1шт.

40

86512512

PLUG,7/8" - 14 ORB

5/8" O.D. (Incl. Ref. 41) Hex Hd, 7/8"-14 ORB

1шт.

41

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - plug to cover

1шт.

42

A35617

GASKET

- cover

1шт.

43

165-116

SCREW - pump to housing, 5/16" x 2" socket hd.

2шт.

44

92-7

LOCK WASHER,7/16"

std. 7/16"

2шт.

46

A36524

FILTER, ELEMENT

ELEMENT - filter, hydraulic oil (Metal type)

1шт.

47

A36523

CAP

- retainer, filter element (Metal type)

1шт.
