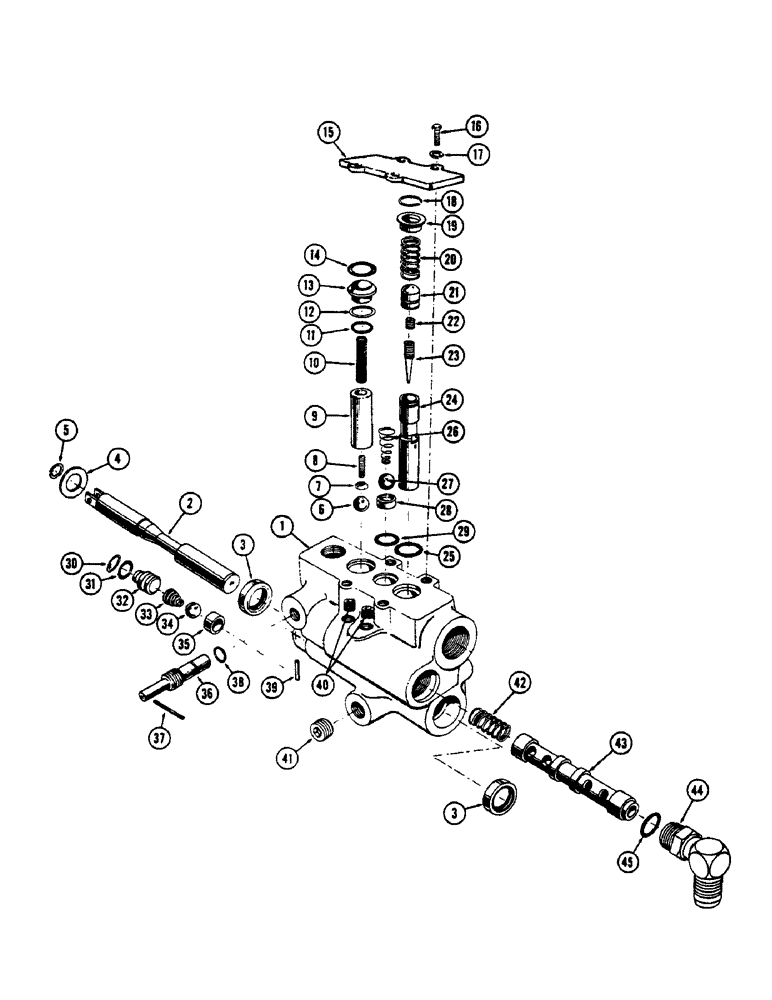

Запчасти Case 530CK (126) - PARTS FOR A35685 CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

NSS

NOT SOLD SEPARAT

BODY - (Order A35685)

1шт.

2

A35092

SPOOL

1шт.

3

A11507

OIL SEAL

OIL SEAL spool

2шт.

4

A35093

WASHER

spool stop

1шт.

5

A35094

SNAP RING,#81, Ext

Ring, Snap, , spool stop washer #81, Ext

1шт.

6

211-13

BALL,1/2" Dia

lowering piston 1/2" Dia

1шт.

7

A35102

NUT

set screw, lowering piston

1шт.

8

A35101

SET SCREW,Hex Skt, #10 - 32 x 1 1/4", Gr 5

SET SCREW lowering piston

1шт.

9

A35695

PISTON

lowering

1шт.

10

A35103

SPRING

lowering piston

1шт.

11

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - lowering piston

1шт.

12

A35698

BACK-UP RING

RING back-up, lowering piston

1шт.

13

A35696

SLEEVE

lowering piston

1шт.

14

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

"O" RING - sleeve (Replaces A35697)

1шт.

15

A35105

COVER

valve

1шт.

16

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

17

92-5

LOCK WASHER,5/16"

4шт.

18

A35690

RING

SNAP RING open center poppet

1шт.

19

A35689

RETAINER

1шт.

20

A35691

SPRING

trigger valve

1шт.

21

A35097

PLUG

open ctr. poppet

1шт.

22

A35785

SET SCREW,5/16" - 18 x 1/4"

SET SCREW needle valve

1шт.

23

A35784

VALVE

needle

1шт.

24

A36434

VALVE POPPET

POPPET - open center (Incl. ref. 18, 21, 22 & 23)

1шт.

25

A35548

RING

GASKET open center poppet

1шт.

26

A35099

SPRING

load check

1шт.

27

211-12

BALL,7/16 Dia

load check (7/16" dia.)

1шт.

28

L10120

SEAT

- ball

1шт.

29

A35547

RING

GASKET load check opening

1шт.

30

A35694

SNAP RING,0.688", Int, #68

Ring, Snap, , choke plug 0.688", Int, #68

1шт.

31

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - check plug

1шт.

32

A35693

PLUG

check

1шт.

33

A35099

SPRING

check

1шт.

34

211-12

BALL,7/16 Dia

check (7/16" dia.)

1шт.

35

L10120

SEAT

- ball

1шт.

36

A35106

SPOOL throttle

1шт.

37

138-65

LOCK PIN,1/8" x 1 1/2", Slotted

PIN, , Throttle spool 1/8" x 1 1/2", Slotted

1шт.

38

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

"O" RING - throttle spool

1шт.

39

138-39

LOCK PIN,3/32" x 5/8", Slotted

PIN, , Throttle spool 3/32" x 5/8", Slotted

1шт.

40

221-849

PLUG,Hex Soc, 1/8"-27

pipe, 1/8" hex. socket hd.

2шт.

41

221-843

PLUG,Hex Soc, 3/8"-18

pipe, 3/8" hex. sckt. hd.

1шт.

42

A35700

SPRING

flow regulator

1шт.

43

A35699

PISTON flow regulator

1шт.

44

A37067

ELBOW - pressure line to valve, Includes: Ref. 45

1шт.

45

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - elbow to valve

1шт.
