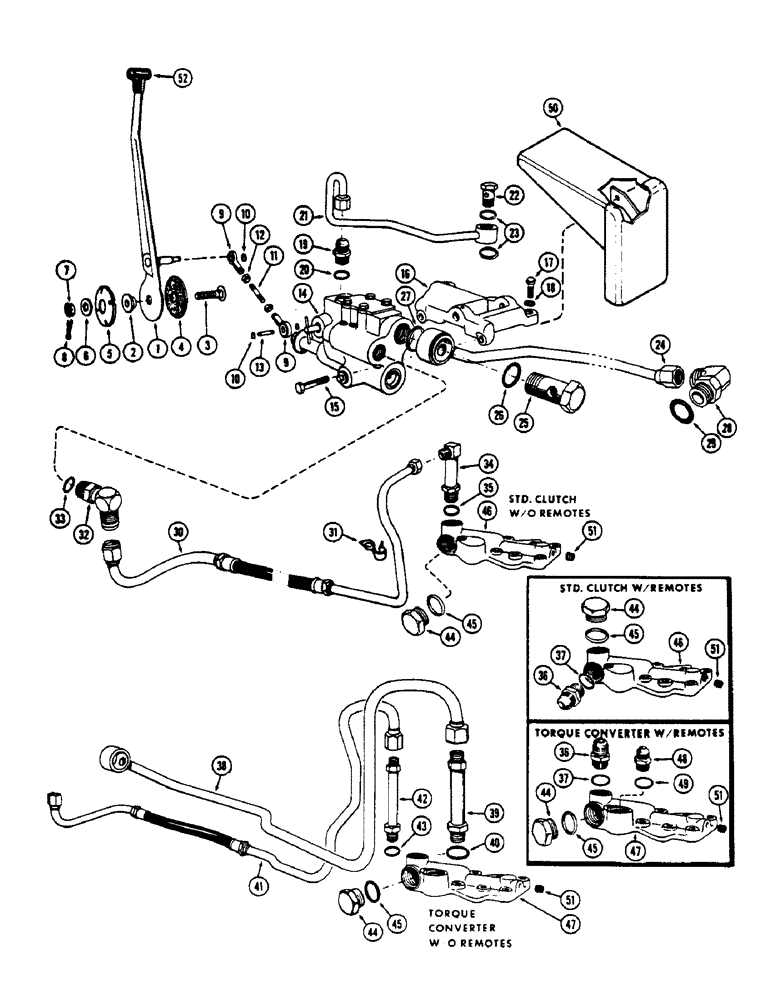

Запчасти Case 530CK (124) - DRAFT-O-MATIC CONTROL AND VALVE (35) - HYDRAULIC SYSTEMS

1

A35701

LEVER hand, Includes: Ref. 2

1шт.

2

G15947

BUSHING

1шт.

3

G49100

BOLT - hand lever

1шт.

4

G10786

DISC

friction, hand lever

1шт.

5

G49412

WASHER

spring

1шт.

6

195-433

WASHER 1/2" plain

1шт.

7

425-128

SLOTTED NUT,1/2"-13, G5

NUT slotted, 1/2" N.C. (7/16" thick)

1шт.

8

132-27

COTTER PIN,3/32" x 7/8"

Pin, Split (Cotter), 3/32" x 7/8"

1шт.

9

A35134

BEARING

EYE adjusting, lever to valve rod

2шт.

10

A27810

CIRCLIP,#X31, .243" Dia, E-Type

Ring, Retaining, , adjusting eye pin #X31, .243" Dia, E-Type

3шт.

11

A35135

ROD

hand, Serial Range: lever-valve

1шт.

12

25-155

JAM NUT,Jam, 5/16"-24, G5

jam, 5/16" N.F. hex.

2шт.

13

A35137

PIN

eye to valve spool

1шт.

14

A35685

VALVE

control (For repairs see Figure 126)

1шт.

15

13-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

5/16" x 3-1/4" N.C. hex. hd.

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16" N.C. hex.

2шт.

92-5

LOCK WASHER,5/16"

std. 5/16"

2шт.

16

A35478

BRACKET

valve mounting

1шт.

17

14-632

BOLT,Hex, 3/8" - 24 x 2", Gr 5

- 3/8" x 2" N.F. hex. hd.

2шт.

18

92-6

LOCK WASHER,3/8"

std. 3/8"

2шт.

19

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, HYD., (Incl. Ref 20) 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

20

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING 1/2" tube

1шт.

21

A35507

TUBE valve to rockshaft housing

1шт.

22

A35146

SCREW,5/8" - 11 x 1 9/16"

tube to rockshaft housing

1шт.

23

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING - tube to rockshaft housing

1шт.

24

A35490

TUBE

- return (w/std. drive)

1шт.

25

A35553

SCREW

return, Serial Range: tube-valve

1шт.

26

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

"O" RING - outer (1-1/16" O.D.)

1шт.

27

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

"O" RING - inner (1-1/4" O.D.)

1шт.

28

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- return tube, Incl. Ref. 29

1шт.

29

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING 3/4" tube

1шт.

30

A35489

TUBE pressure (w/std. drive)

1шт.

31

A35142

CLAMP pressure tube to torque tube

1шт.

32

A37067

ELBOW - pressure tube, Includes: Ref. 33

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING 5/8" tube

1шт.

34

D23143

FITTING

ELBOW pressure tube to cover (Std. drv. w/o remote controls), Includes: Ref. 35

1шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING 5/8" tube

1шт.

36

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR pressure tube to cover (w/remote)

1шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING 5/8" tube

1шт.

38

A35551

TUBE return (w/torque converter drive)

1шт.

39

A35446

CONNECTOR return tube to cover (Torque conv. drive w/o remote controls), Includes: Ref. 40

1шт.

40

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING 3/4" tube

1шт.

41

A35520

TUBE pressure (w/torque conv. drive)

1шт.

42

A35444

CONNECTOR pressure tube to cover (Torque conv. drv. w/o remote controls), Includes: Ref. 43

1шт.

43

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING 5/8" tube

1шт.

44

86512512

PLUG,7/8" - 14 ORB

(Incl. ref. 45) Hex Hd, 7/8"-14 ORB

1шт.

45

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 5/8" tube

1шт.

46

A35425

COVER ASSY

COVER (w/standard drive)

1шт.

47

A35443

RIVET

COVER (w/converter drive)

1шт.

48

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - return to cover (w/remote), Incl. Ref. 49

1шт.

49

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - 3/4" tube

1шт.

50

A36515

GUARD

SHIELD - valve

1шт.

51

221-1849

PLUG

- 3/8" socket hd.

1шт.

52

A36509

KNOB - hand lever

1шт.

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

1шт.
