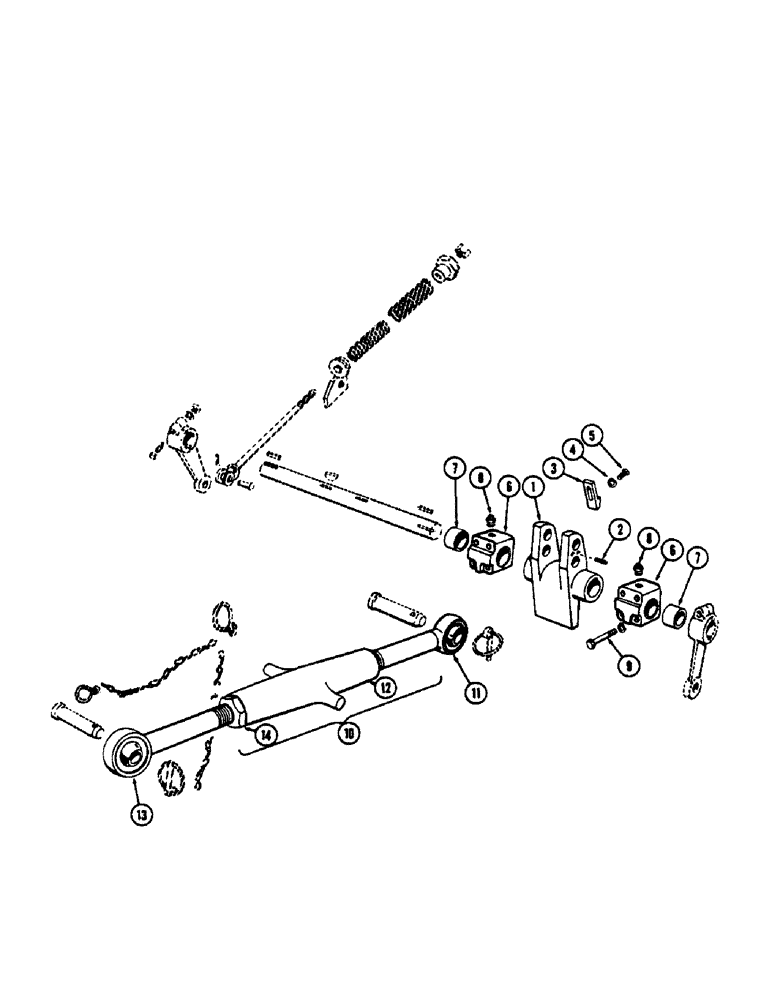

Запчасти Case 530CK (123A) - SENSING LINKAGE LATCH TYPE LOCK (35) - HYDRAULIC SYSTEMS

1

A36992

BRACKET

- mast, adjuting link, Includes: Ref. 2

1шт.

2

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

2шт.

3

A36766

STOP

- lock-out

1шт.

4

195-18

WASHER,1/4"

- SAE plain 1/4"

1шт.

5

113-9

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

- 1/4" x 7/8" N.C. hex. hd. (Pltd.)

1шт.

6

A36889

BRACKET - pivot shaft, Includes: Ref. Ref. 7

2шт.

7

A35117

BUSHING - pivot

1шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" str.

2шт.

9

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8" x 2-1/2" N.C. hex. hd.

8шт.

10

A36228

UPPER LINK

TURNBUCKLE - adjusting (w/fine thread), Includes: Ref. 11 -14

1шт.

11

NLS

NO LONGER SERVICED

LINK - front half (w/fine thread)

1шт.

12

A36223

TURNBUCKLE

- (w/fine thread)

1шт.

13

A36226

LINK

- rear half (w/fine thread)

1шт.

14

25-1518

JAM NUT,Jam, 1 1/8"-12, G5

- jam, 1-1/8" N.F. hex.

1шт.
