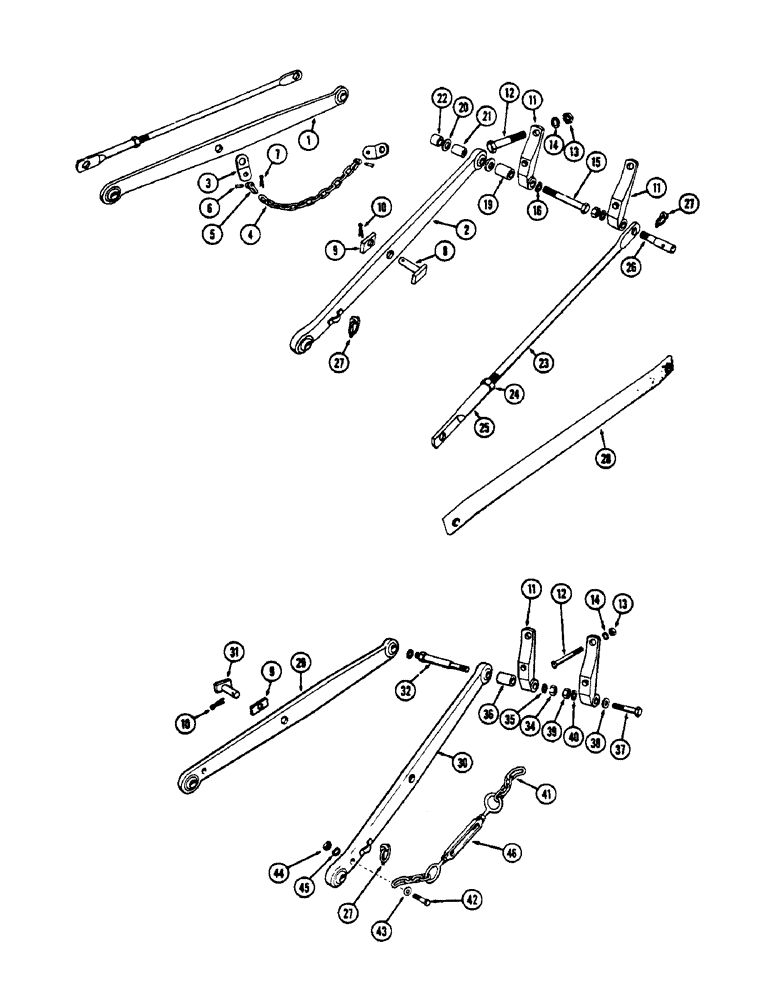

Запчасти Case 530CK (120) - DRAFT ARMS AND STABILIZER BARS (35) - HYDRAULIC SYSTEMS

1

G45353

ARM - draft, L.H. (See ref. 29)

1шт.

2

G45352

ARM - draft, R.H. (See ref. 30)

1шт.

3

G16736

LINK - sway chain

4шт.

4

A30117

CHAIN - sway (See ref. 41)

2шт.

5

G45127

SHACKLE - chain (Includes ref. 6 and 7)

4шт.

6

G46139

PIN

- shackle

4шт.

7

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

8

A35471

PIN AND LOCK - yoke to draft arm (See ref. 31)

2шт.

9

A35472

PLATE

LOCK - float

2шт.

10

132-148

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

11

G16911

BRACKET

- pivot, draft arm and stabilizer bar

4шт.

12

16-10128

BOLT - upper, 5/8" x 8" N.F. hex. hd.

4шт.

12

16-10136

BOLT

- lower, 5/8" x 8-1/1" N.F. hex. hd.

4шт.

13

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

8шт.

14

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Standard 5/8"

8шт.

15

115-509

BOLT

- pivot, 5/8" x 6-1/4" N.C. hex. hd. gr. 8 (Used ref. 32 and 36)

2шт.

16

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Standard 5/8"

2шт.

19

A35148

SPACER - outer, draft arm (w/old style draft arm) (See Figure 35)

2шт.

20

A35147

WASHER

- spacer (w/old style stud only)

4шт.

21

G16734

BUSHING - pivot, draft arm (w/old style stud only)

2шт.

22

A35827

SPACER - inner, draft arm (w/old style stud only)

2шт.

23

A35541

BAR - stabilizer, adjustable (See ref. 28 and 41)

2шт.

24

25-1412

JAM NUT,Jam, 3/4"-10, G5

- jam, 3/4" N.C. hex.

2шт.

25

A35542

END - stabilizer bar

2шт.

26

A35543

PIN

- mounting, stabilizer bar

2шт.

27

A33509

PIN,11.18mm OD

KLIK PIN - stabilizer bar

4шт.

28

G16757

BAR - stablilizer, solid

2шт.

29

A26769

GASKET

ARM - draft, L.H. (Heavy duty)

1шт.

30

A36768

ARM - draft, R.H. (Heavy duty)

1шт.

31

A36883

PIN

AND LOCK - yoke to heavy duty draft arm

2шт.

32

A38215

STUD

- pivot, draft arm (Replaces A36388)

2шт.

34

25-1010

NUT,5/8"-11, G5

2шт.

35

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Standard 5/8"

2шт.

36

A38214

SPACER

- draft arm (Replaces A36386)

2шт.

37

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

Chain to bracket Hex, 5/8"-11 x 3", G5

2шт.

38

A21818

WASHER - plain

2шт.

39

25-1010

NUT,5/8"-11, G5

2шт.

40

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Standard 5/8"

2шт.

41

A36767

CHAIN (AG)

CHAIN - sway and stabilizer

2шт.

42

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Chain to draft arm Hex, 5/8"-11 x 2 1/4", G5

2шт.

43

A21818

WASHER - plain

2шт.

44

25-1010

NUT,5/8"-11, G5

2шт.

45

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Standard 5/8"

2шт.

46

A38201

TURNBUCKLE

- stabilizer chain

2шт.
