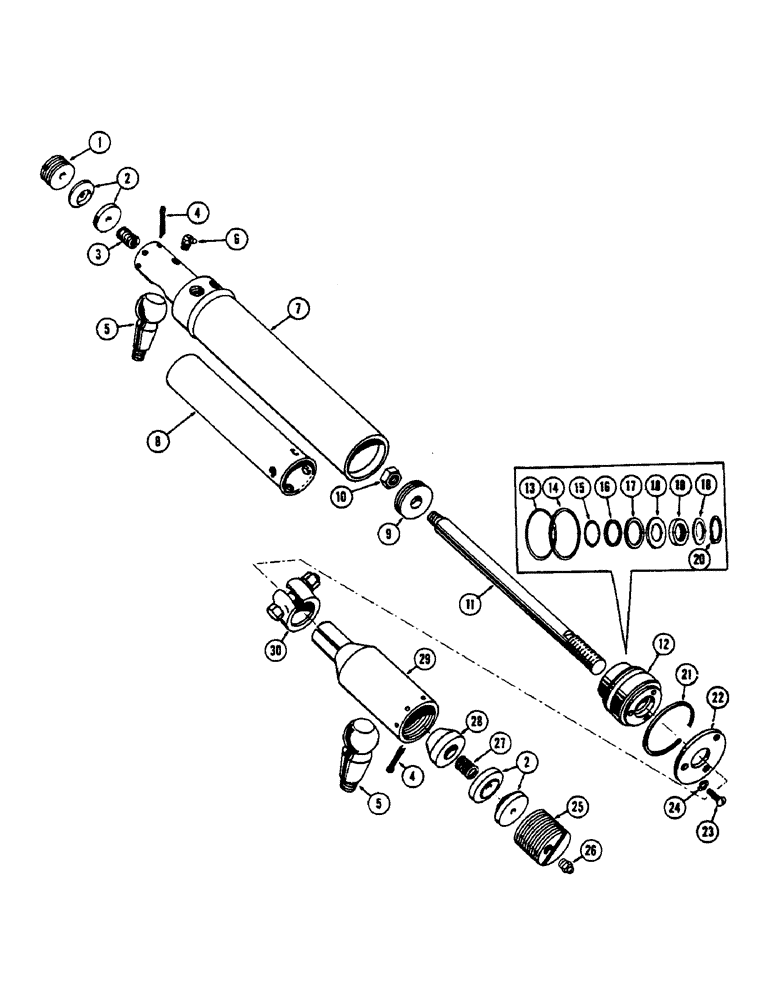

Запчасти Case 530CK (116) - PARTS FOR A36392 CYLINDER (35) - HYDRAULIC SYSTEMS

1

A35890

PLUG

- adjusting

1шт.

2

A35889

SEAT

- ball

4шт.

3

A35888

VALVE SPRING

SPRING - ball seat

1шт.

4

132-58

COTTER PIN

PIN - cotter, 1/8" x 2-1/4"

2шт.

5

A35870

STUD

- ball

2шт.

6

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - 1/8" 67-1/2"

1шт.

7

NSS

NOT SOLD SEPARAT

CYLINDER AND HEAD ASSY.

1шт.

8

NSS

NOT SOLD SEPARAT

TUBE - piston

1шт.

9

A36395

PISTON

ASSY.

1шт.

A36395 piston assy. includes teflon ring and replaces piston which was equipped with ring and seal.

1шт.

10

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock, piston to rod (3/8" N.F.)

1шт.

11

A35873

ROD

- piston

1шт.

12

A36443

GLAND

- cylinder (Incl. following), Includes: Ref. 13 - 20

1шт.

13

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O" RING - (See A36396)

1шт.

14

A35884

WASHER

RING - back-up (A36396)

1шт.

15

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING - inner (Replaces A11060)

1шт.

16

A9886

RING - retaining (Replaces A35880)

1шт.

18

F9887

WASHER

RINGF - retaining, oil seal (Replaces A35881)

2шт.

19

A11061

SEAL

OIL SEAL - gland (See A36396)

1шт.

20

A37550

SNAP RING,1.00", Int, #100

Ring, Snap, , seal (replaces A35882) 1.00", Int, #100

1шт.

A36396

SEAL KIT

KIT - gland seal (Incl. ref. 13 thru 20)

1шт.

21

A35885

RING

SNAP RING -, Serial Range: gland-cylinder

1шт.

22

A35887

PLATE ASSY.

PLATE - end, cylinder

1шт.

23

182-125

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

#10-24 x 1/2" pan hd. slotted

3шт.

24

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

25

A35892

PLUG

- adjusting, front

1шт.

26

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" str.

1шт.

27

F19615

SPRING

- ball seat, front

1шт.

28

A35891

SEAT

- spring

1шт.

29

A35869

SOCKET

- ball stud

1шт.

30

A27080

CLAMP

- socket

1шт.
