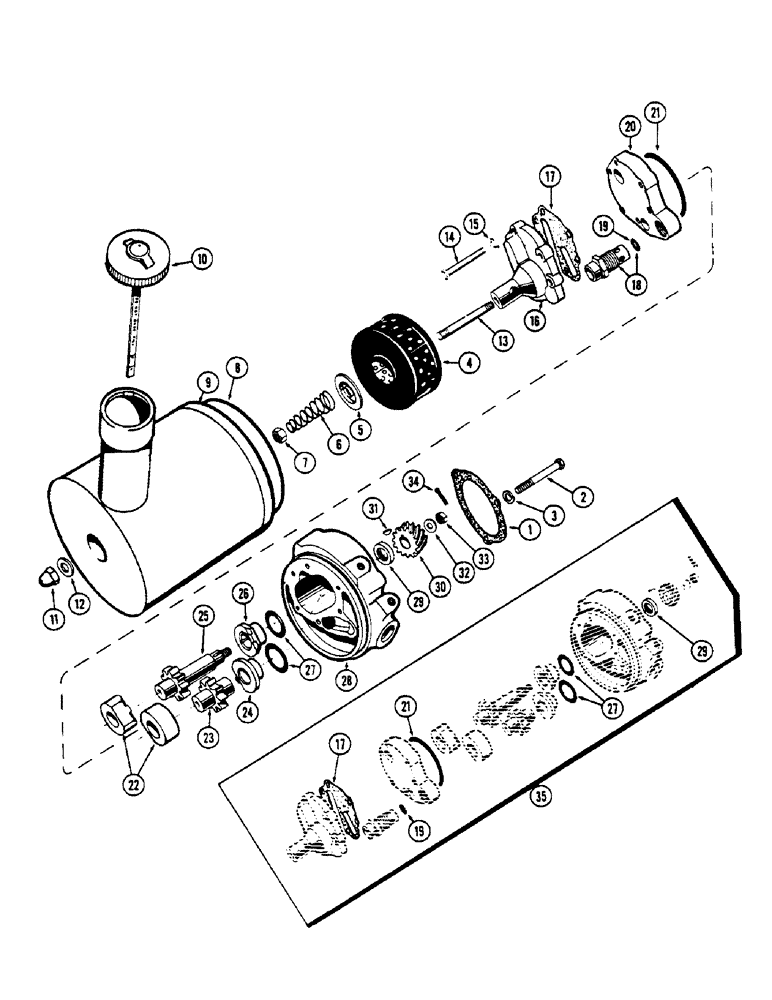

Запчасти Case 530CK (114) - PARTS FOR A36559 POWER PUMP (35) - HYDRAULIC SYSTEMS

1

A30042

GASKET

Pump Engine

1шт.

2

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

3/8" x 8-1/4" N.C. hex. hd.

3шт.

3

92-6

LOCK WASHER,3/8"

std. 3/8"

3шт.

4

A42242

FILTER, ELEMENT

ELEMENT - filter (Replaces A30834)

1шт.

5

A35962

CAP

filter element

1шт.

6

A35963

SPRING

filter element

1шт.

7

25-156

JAM NUT,Jam, 3/8"-24, G5

jam, 3/8" N.F. hex.

1шт.

8

A35965

O-RING,2.87mm Thk x 120.27mm ID

GASKET reservoir to pump

1шт.

9

A35951

RESERVOIR

1шт.

10

A35967

GAUGE

CAP filter (Includes dipstick)

1шт.

10

A35967AM

DIPSTICK

CAP filter (Includes dipstick)

1шт.

11

129-525

CROWN NUT,Crown, 3/8"-16

acorn, 5/16" N.F.

1шт.

12

A35961

WASHER

fiber

1шт.

13

A35952

STUD

Reservoir Pump

1шт.

14

A35964

BOLT (SPREADER)

BOLT pump cover

6шт.

15

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

16

A35950

COVER

rear

1шт.

17

A35966

GASKET

rear cover

1шт.

Part of Seal Kit, P/N A35970

1шт.

18

A35968

CARTRIDGE

VALVE relief, complete (Incl. ref. 19)

1шт.

19

A42187

O-RING,0.426" ID x 0.566" OD x 0.07"

"O" RING - relief valve (Replaces A35969)

1шт.

Part of Seal Kit, P/N A35970

1шт.

20

A35949

COVER

intermediate

1шт.

21

A35959

O-RING,2.55" ID x 2.756" OD x 0.103"

GASKET intermediate cover

1шт.

Part of Seal Kit, P/N A35970

1шт.

22

A35956

BEARING

rear

2шт.

23

A35954

GEAR

driven

1шт.

24

A35955

BEARING

BERAING front, driven gear

1шт.

25

A25593

GEAR

- drive, Start Serial: 8241697

1шт.

25

A35953

GEAR - drive, Serial Range: -8241697

1шт.

26

A35957

BEARING

front, drive gear

1шт.

27

A35958

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

"O" RING front bearing

2шт.

Part of Seal Kit, P/N A35970

1шт.

28

A35948

BODY

pump

1шт.

29

A50421

OIL SEAL,19.05mm ID x 31.95mm OD x 6.73mm Thk

OIL SEAL - drive shaft (Replaces A35960 & G13827)

1шт.

Part of Seal Kit, P/N A35970

1шт.

30

A25594

GEAR

- pump drv., Start Serial: 8241697

1шт.

30

F18389

GEAR

- pump drv., Serial Range: -8241697

1шт.

31

126-109

WOODRUFF KEY,#3, 1/8" x 1/2", HT

Drive gear #3, 1/8" x 1/2", HT, Start Serial: 8241697

1шт.

31

F18392

KEY - drive gear, Serial Range: -8241697

1шт.

32

195-25

WASHER,3/8"

plain, 13/32" SAE

1шт.

33

F18390

NUT

gear

1шт.

34

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

35

A35970

KIT

- seal (Incl. ref. 17, 19, 21, 27 & 29)

1шт.
