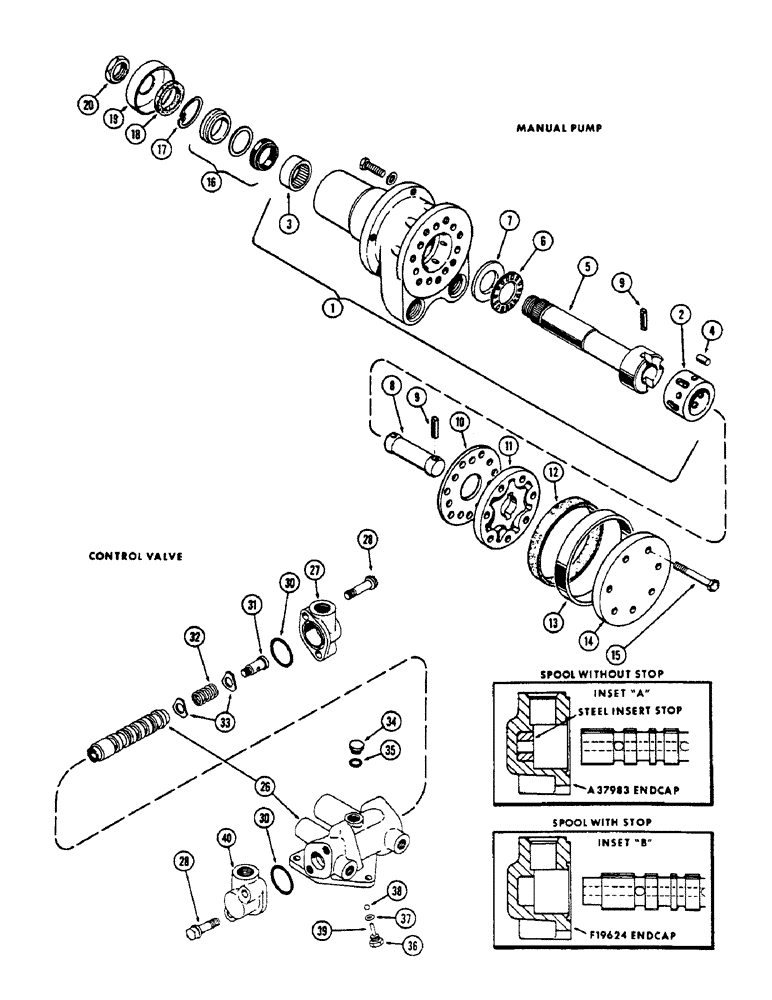

Запчасти Case 530CK (112) - PARTS FOR A35579 MANUAL PUMP (35) - HYDRAULIC SYSTEMS

1

F82945

BODY

ASSY., Inlcudes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

COMMUTATOR (Order F82945)

1шт.

3

A30588

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 12.7mm W

BEARING - needle, coupling shaft

1шт.

4

F19631

PIN

- commutator

1шт.

5

A40735

SHAFT

- coupling

1шт.

6

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

BEARING - thrust

1шт.

7

F19634

BEARING WASHER

RACE - thrust bearing

1шт.

8

F19635

LINK

- rotor drive

1шт.

9

F19636

PIN

- link

2шт.

10

A42206

SPACER

PLATE - spacer (Replaces F19637)

1шт.

11

A35786

STATOR

- rotor set

1шт.

12

84286702

RUBBER SEAL

- rotor

1шт.

13

A35787

RETAINER

- seal

1шт.

14

F19641

COVER - end, pump

1шт.

15

F19642

SCREW - end cover

7шт.

16

A40624

SEAL

KIT (Includes packing, backup washer and spacer washer)

1шт.

17

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125

1шт.

18

F19645

BUSHING

- felt

1шт.

19

F19644

SEAL

- water

1шт.

20

A14567

JAM NUT

- coupling shaft (Replaces F19646)

1шт.

F82739

VALVE

ASSY. - complete (Use A37980 when depleted), steering control valve, Includes: Ref. 26 - 40

1шт.

A37980

VALVE

ASSY. - complete, steering control valve, Includes: Ref. 26 - 40

1шт.

26

NSS

NOT SOLD SEPARAT

VALVE BODY AND SPOOL, steering control valve

1шт.

27

F19624

CAP

- end (See ref. 40), steering control valve

1шт.

28

L30404

CAPTIVE WASHER SCREW,Hex, 3/8" - 16 x 2"

BOLT - end cap (Includes washer), steering control valve

4шт.

30

F21003

O-RING,1.237" ID x 1.443" OD

"O" RING - end cap, steering control valve

2шт.

31

F19623

SCREW,3/8" - 24 x 15/16"

- centering, steering control valve

1шт.

32

F19622

VALVE SPRING

SPRING - centering, steering control valve

1шт.

33

F19619

WASHER

- centering, steering control valve

2шт.

34

F83122

PLUG

ASSY. - top, valve body, steering control valve, Includes: Ref. 35

1шт.

35

F19628

O-RING

"O" RING - relief screw, steering control valve

1шт.

36

F82943

VALVE

PLUG - relief, steering control valve, Inlcudes: Ref. 37 - 39

1шт.

37

F19630

O-RING

"O" RING - relief plug, steering control valve

1шт.

38

211-7

BALL,1/4" Dia

- relief valve, steering control valve 1/4" Dia

1шт.

39

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, , Steering control valve 1/8" x 15/16", Slotted

1шт.

40

F19624

CAP

- end (w/o stop), steering control valve

1шт.

A37983 end cap with stop must be used when valve spool does not have stop per inset "A" F19624 end cap must be used when valve spool does not have built in stop per inset "B"

1шт.

40

A37983

CAP

- end (w/stop), steering control valve

1шт.

A37983 end cap with stop must be used when valve spool does not have stop per inset "A" F19624 end cap must be used when valve spool does not have built in stop per inset "B"

1шт.
