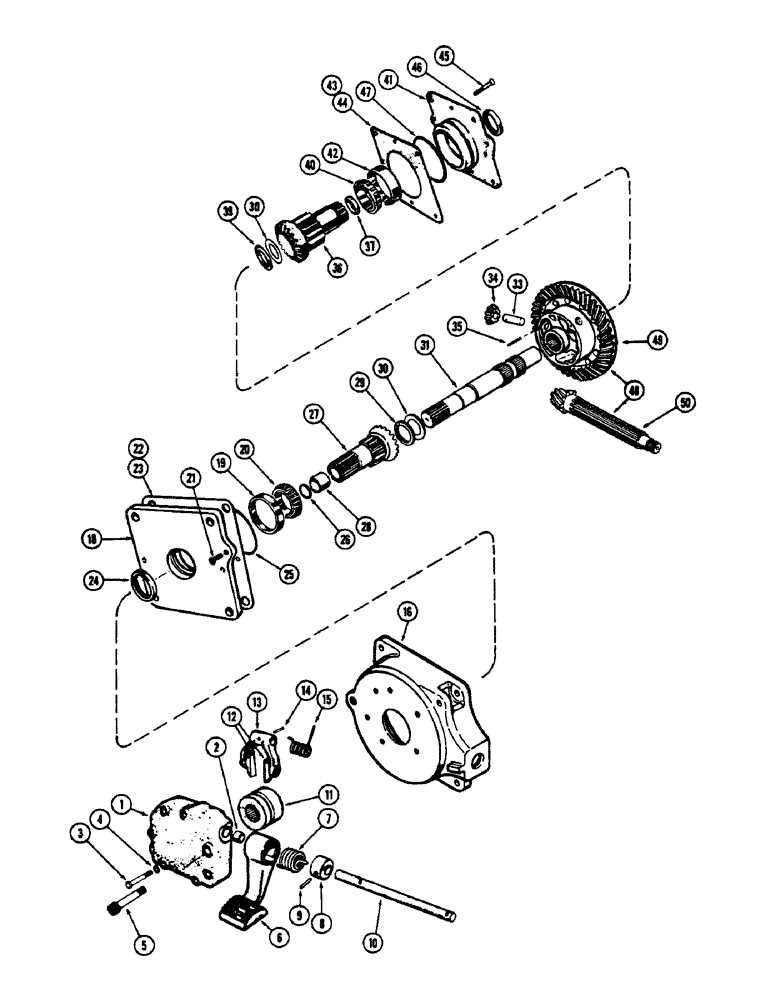

Запчасти Case 530CK (103A) - PARTS FOR DIFFERENTIAL LOCK (27) - REAR AXLE SYSTEM

1

A35923

HOUSING

COVER - lock assembly, Includes: Ref. 2

1шт.

2

A35925

BUSHING

- pedal & lever

1шт.

3

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

5шт.

4

92-5

LOCK WASHER,5/16"

std. 5/16"

5шт.

5

61-536

HEX SOC SCREW,5/16"-18 x 2 1/4"

SCREW - 5/16" x 2-1/4" N.C. hex. socket hd.

1шт.

6

A37043

PEDAL - foot, diff. lock, Serial Range: -8286659

1шт.

6

A36445

PEDAL - foot, diff. lock, Start Serial: 8286659

1шт.

7

A36446

SPRING

- foot pedal

1шт.

8

A36447

RETAINER

COLLAR - pedal spring

1шт.

9

138-99

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, 3/16" x 1 3/8", Slotted

1шт.

10

A36444

SHAFT - pedal & lever

1шт.

11

A35929

CLAMP

COLLAR - locking

1шт.

12

A35928

FINGER

- locking collar

2шт.

13

A35927

LEVER

- locking collar

1шт.

14

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

15

A35933

SPRING

- inner

1шт.

16

A37052

COVER

- R.H. brake, Serial Range: -8286659

1шт.

16

A36599

X

COVER - R.H. brake (Order A37052), Start Serial: 8286659

1шт.

18

G30490

CARRIER

- bearing, R.H. side gear, Includes: Ref. 19

1шт.

19

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, side gear

1шт.

20

A30114

CONE

- bearing, side gear

1шт.

21

171-202

SCREW,Phil Flat Hd, Spin Lock, 3/8" - 16 x 3/4"

- 3/8" x 3/4" flat hd. (Spin-lok)

2шт.

22

G10719

SHIM,.005" Thk

Bearing carrier .005" Thk

1шт.

23

G10720

SHIM,.010" Thk

Bearing carrier .010" Thk

1шт.

24

G10689

SEAL

OIL SEAL - bearing carrier

1шт.

25

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - bearing carrier

1шт.

26

A35919

OIL SEAL

OIL SEAL - R.H. side gear

1шт.

27

A35920

GEAR WHEEL

GEAR - R.H. side, Includes: Ref. 28

1шт.

28

A35921

BUSHING,34.89mm ID x 39.83mm OD x 20.65mm L

- R.H. side gear

1шт.

29

A35912

WASHER - thrust, R.H. side gear (.089")

1шт.

29

A35913

WASHER

- thrust, R.H. side gear (.094")

1шт.

29

A35914

WASHER

- thrust, R.H. side gear (.099")

1шт.

29

A35915

WASHER

- thrust, side gear (.104")

1шт.

29

A35916

WASHER

- thrust, R.H. side gear (.109")

1шт.

29

A35917

WASHER

- thrust, side gear (.119")

1шт.

30

A29388

WASHER

SHIM - side gear (.010")

1шт.

31

A35918

SHAFT

- cross, differential

1шт.

33

A37097

PIN

SHAFT - pinion gear (Repl. A35911)

3шт.

34

G15483

GEAR

- pinion

3шт.

35

138-103

LOCK PIN,3/16" x 1 7/8", Slotted

PIN, LOCK, 3/16" x 1 7/8", Slotted

3шт.

36

G30596

GEAR

- L.H. side, Includes: Ref. 37

1шт.

37

A29902

PLUG

- L.H. side gear

1шт.

39

A30539

WASHER

- thrust, L.H. side gear (.089")

1шт.

39

A39007

WASHER

- thrust, L.H. side gear (.094")

1шт.

39

A30533

WASHER

- thrust, L.H. side gear (.099")

1шт.

39

A30045

WASHER

- thrust, L.H. side gear (.104")

1шт.

39

A30543

WASHER

- thrust, L.H. side gear (.109")

1шт.

39

A30051

WASHER

- thrust, L.H. side gear (.119")

1шт.

40

A30114

CONE

- bearing, side gear

1шт.

41

G30491

CARRIER

- bearing, L.H. side gear, Includes: Ref. 42

1шт.

42

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, side gear

1шт.

43

G10719

SHIM,.005" Thk

Bearing carrier .005" Thk

1шт.

44

G10720

SHIM,.010" Thk

Bearing carrier .010" Thk

1шт.

45

171-202

SCREW,Phil Flat Hd, Spin Lock, 3/8" - 16 x 3/4"

- 3/8" x 3/4" flat hd. (Spin-lok)

2шт.

46

G10689

SEAL

OIL SEAL - bearing

1шт.

47

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - bearing carrier

1шт.

48

A37196

CENTER WHEEL - w/matched ring gear & pinion, Includes: Ref. 49 and 50

1шт.

49

A35909

GEAR

CENTER WHEEL & RING GEAR ASSY. (Order A37196 when exhausted)

1шт.

50

G10319

COUNTERSHAFT & PINION (Order A37196 when exhausted)

1шт.
