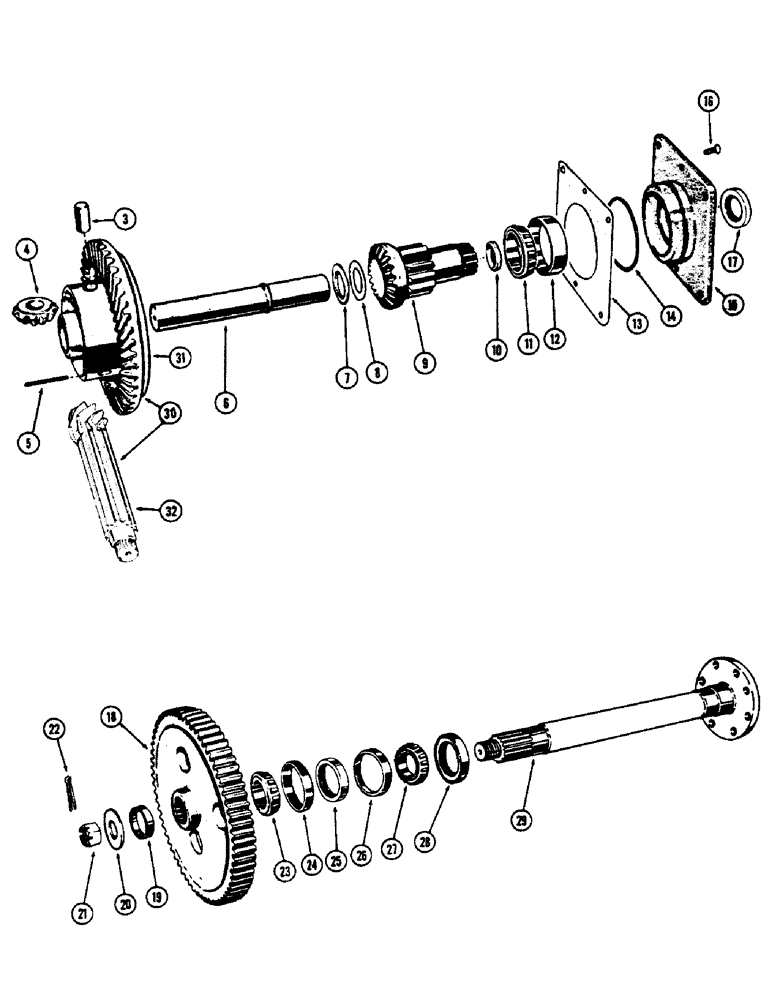

Запчасти Case 530CK (102) - DIFFERENTIAL AND FINAL DRIVE (27) - REAR AXLE SYSTEM

3

A37097

PIN

- oinion gear (Replaces A29318)

3шт.

4

G15483

GEAR

pinion

3шт.

5

138-103

LOCK PIN,3/16" x 1 7/8", Slotted

PIN, LOCK, 3/16" x 1 7/8", Slotted

3шт.

6

A37186

SHAFT

- cross (Replaces A36911)

1шт.

7

A30539

WASHER

- thrust (.090")

1шт.

A39007

WASHER

- thrust (.094")

1шт.

A30533

WASHER

- thrust (.009")

1шт.

A30045

WASHER

- thrust (.104")

1шт.

A30543

WASHER

- thrust (.109")

1шт.

A30051

WASHER

- thrust (.119")

1шт.

8

A29388

WASHER

SHIM - thrust washer (.010")

2шт.

9

G30596

GEAR

- side (Incl. ref. 10)

2шт.

10

A29902

PLUG

- side gear

2шт.

11

A30114

CONE

- brg., side gear

2шт.

12

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - brg., side gear

2шт.

13

G10719

SHIM,.005" Thk

Bearing retainer carrier .005" Thk

1шт.

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING bearing carrier

2шт.

15

G30490

CARRIER

- bearing, R.H. side gear (Incl. ref. 12)

1шт.

G30491

CARRIER

- bearing, L.H. side gear (Incl. ref. 12)

1шт.

16

171-202

SCREW,Phil Flat Hd, Spin Lock, 3/8" - 16 x 3/4"

lock, bearing carrier

2шт.

17

G10689

SEAL

OIL SEAL bearing carrier

2шт.

18

G30353

GEAR

- final drive, 66T (Incl. 19)

2шт.

19

G49616

SPACER

drive gear

2шт.

20

F62105

WASHER,38.89mm ID x 69.85mm OD x 6.35mm Thk

- take-up, axle shaft

2шт.

21

A30075

WHEEL NUT

- axle, 1-1/2" N.F. hex. slotted

2шт.

22

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

23

G10414

ROLLER BEARING

CONE inner bearing, rear axle

2шт.

24

G10415

BEARING CUP

CUP inner bearing, rear axle

2шт.

25

G13801

OIL SEAL

OIL SEAL inner, axle shaft

2шт.

26

G15208

BEARING CUP,110mm OD x 18.82mm W

CUP outer bearing, rear axle

2шт.

27

G15207

ROLLER BEARING

CONE outer bearing, rear axle

2шт.

28

G13822

SEAL,73.66mm ID x 110.13mm OD x 11mm Thk

OIL SEAL outer rear axle

2шт.

29

G17178

SHAFT - rear axle

2шт.

30

A37195

CENTER WHEEL - w/matched ring gear and pinion (Order A38402), Includes: Ref. 32

1шт.

A38402

KIT

CENTER WHEEL - (Replaces A37195), Inlcudes: Ref. 32

1шт.

31

G30454

CENTER WHEEL & RING GEAR ASSY. (Order A37195 when exhausted), Includes: Ref. 32

1шт.

32

G10319

COUNTERSHAFT & PINION (Order A37195 when exhausted)

1шт.
