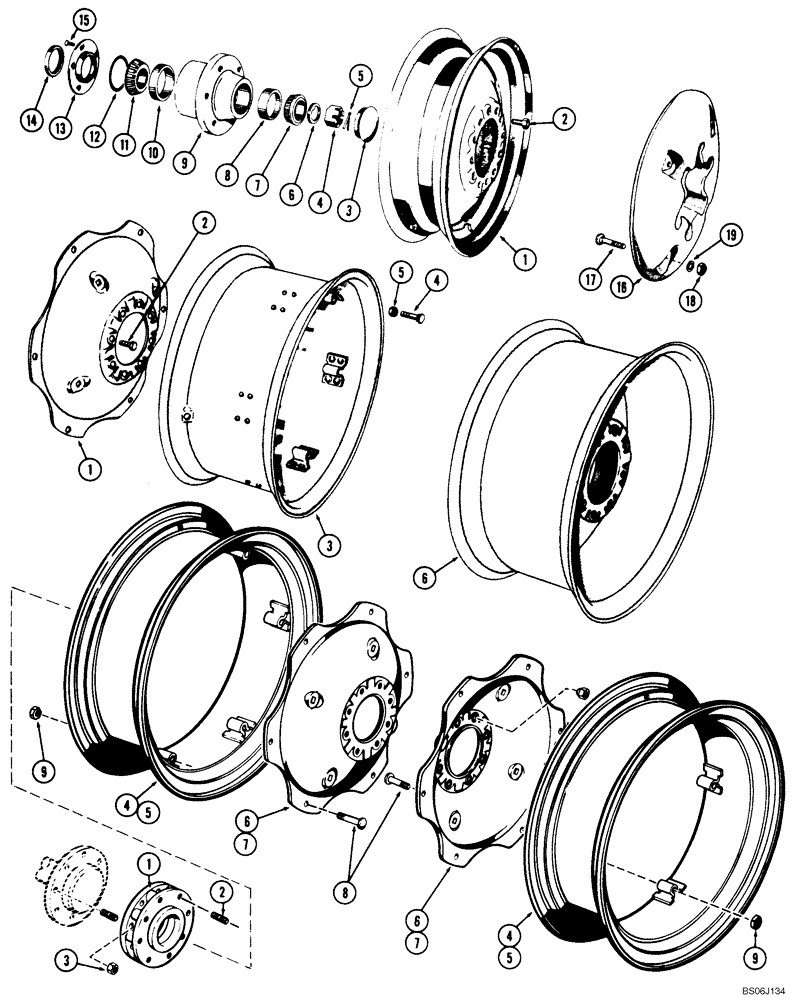

Запчасти Case 530CK (106) - FRONT WHEEL AND HUB, REAR WHEEL, DUAL REAR WHEEL ATTACHMENT (25) - FRONT AXLE SYSTEM

REF

INSTRUCTION

FRONT WHEEL AND HUB

1шт.

1

A38404

RIM

WHEEL - (7.50 x 16 tire) (Replaces A36017)

2шт.

2

A30064

BOLT

-, Serial Range: wheel-hub

12шт.

3

A29425

CAP

- wheel hub

2шт.

4

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - castle, 1-1/8" N.F. hex. (Thick)

2шт.

5

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

6

A26789

BEARING WASHER

WASHER - spindle nut

2шт.

7

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - outer bearing (Timken #28577)

2шт.

8

A27631

CUP

- outer bearing (Timken #25820)

2шт.

9

G14042

X

HUB - (Includes ref. 8 and 10) (Order 1-A38187 & 6-B18264)

2шт.

10

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - inner bearing (Timken #25520)

2шт.

11

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - inner bearing (Timken #25580)

2шт.

12

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

"O" RING - wheel hub

2шт.

13

A27140

RETAINER

- oil seal

2шт.

14

A27139

SEAL

OIL SEAL - wheel hub

2шт.

15

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

machine, 1/4" x 5/8" flat hd.

10шт.

16

G12050M

WEIGHT - wheel, set of 2, Includes: Ref. 17 - 19

1шт.

17

11-848

BOLT - 1/2" x 3" rd. hd. sq. nk.

4шт.

18

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

4шт.

19

92-8

LOCK WASHER,1/2"

std. 1/2"

4шт.

REF

INSTRUCTION

REAR WHEEL

1шт.

1

G46240

DISC

- wheel (24" rim)

2шт.

1

G12001

DISC

- wheel (28" rim)

2шт.

2

B18264

WHEEL BOLT

BOLT -, Serial Range: wheel-hub

16шт.

3

G45204

RIM

wheel (W12-24 for 13 x 24 tire)

2шт.

3

G12002

RIM

- wheel (W10-28 for 12 x 28 tire)

2шт.

3

G45710

RIM

- wheel (W12-28 for 13.6 or 14.9 x 28 tire)

1шт.

4

G10701

BOLT

, Serial Range: rim-disc

12шт.

5

129-127

NUT,5/8"-18, G5

12шт.

6

A35578

WHEEL - integral (14.9 x 24 tire) See A35906

2шт.

6

A35906

WHEEL

- integral, 58" tread (14.9 x 24 tire)

2шт.

Cannot be used with back-hoe

1шт.

REF

INSTRUCTION

DUAL REAR WHEEL ATTACHMENT

1шт.

1

A36528

ADAPTER - dual wheel

2шт.

2

A36527

STUD - adapter to hub & wheel

32шт.

3

F62206

NUT

- stud (3/8" N.F.)

32шт.

4

G45205

RIM

- (11" or 12" x 24" tire)

4шт.

5

G12002

RIM

- (11" x 28" tire)

4шт.

6

G46240

DISC

WHEEL DISC (24" rim)

4шт.

7

G12001

DISC

WHEEL DISC (28" rim)

4шт.

8

G10701

BOLT

-, Serial Range: rim-wheel

24шт.

9

129-127

NUT,5/8"-18, G5

Rim bolt 5/8"-18, G5

24шт.
