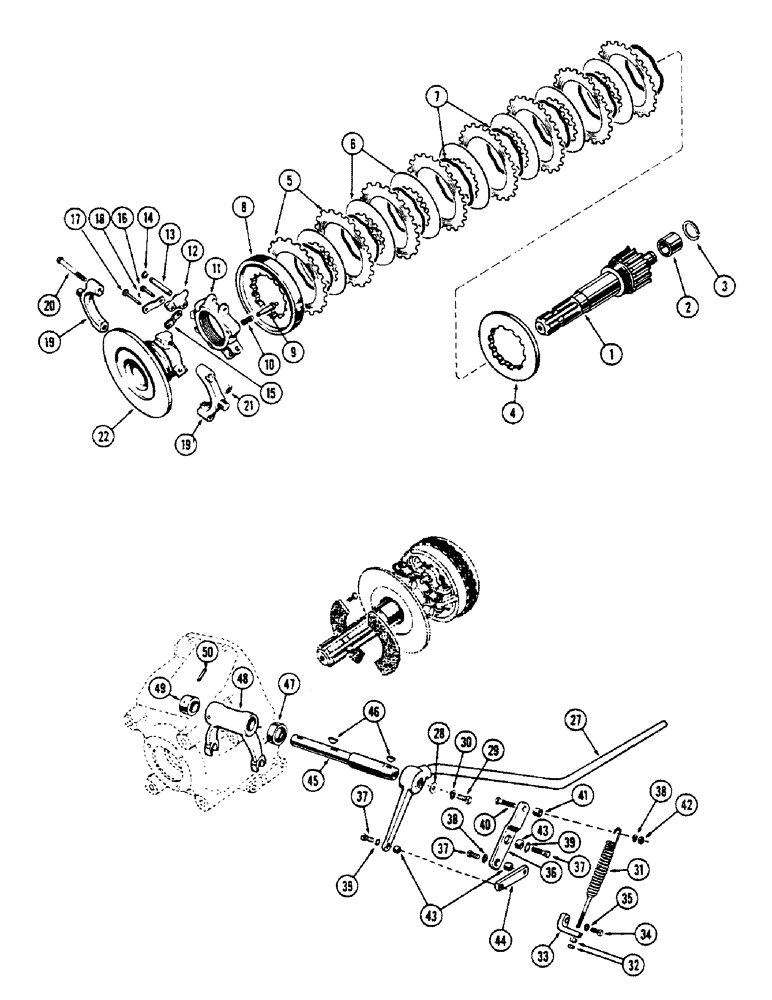

Запчасти Case 530CK (146) - INDEPENDENT P.T.O. CLUTCH (21) - TRANSMISSION

1

G17123

SHAFT - driven

1шт.

2

G15212

RACE

- brg., driven shaft (Torrg. #IR-1416)

1шт.

3

G46173

RING, SNAP

RING - snap, bearing, Serial Range: race-shaft

1шт.

4

A7101

PLATE

- backing (Replaces G16868)

1шт.

5

A11127

PLATE

- drive, clutch (External tooth)

8шт.

6

A57170

BRAKE DISC

PLATE - drive, clutch (Internal tooth) (Replaces A7102)

7шт.

7

A27591

VALVE SPRING

SPRING - separator, clutch plate

8шт.

8

A26225

LARGE PLATE

PLATE - pressure (Replaces G16867)

1шт.

9

A34248

LOCK PIN,7.85mm OD x 39.62mm L

PIN - lock, clutch adj. yoke

2шт.

10

A26944

VALVE SPRING

SPRING - lock pin, clutch adj.

2шт.

11

A27592

FORK

YOKE - adjusting, clutch

1шт.

12

A36552

FINGER

- clutch

3шт.

13

G10658

AXLE PIN

PIN - pivot, clutch finger

3шт.

14

G10659

SNAP RING,#31, Ext

Ring, Snap, , pivot pin #31, Ext

6шт.

15

A57917

DRAG LINK

LINK - clutch finger (Replaces A27596)

6шт.

16

A8823

PIN,6.29mm OD x 26.99mm L

- link, outer (1-1/32")

3шт.

17

A8824

PIN

- link, inner (1-15/16")

3шт.

18

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

6шт.

19

A28596

COLLAR CLAMP

COLLAR ASSY. - throwout (Set of 2 halves), Includes: Ref. 20 and 21

1шт.

20

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

- 5/16" x 2" N.F. hex.

2шт.

21

131-3

LOCK NUT,5/16"-24, GB

NUT - stop, 5/16" N.F., hex.

2шт.

22

G1304

SLEEVE

SLLEVE - sliding, clutch throwout

1шт.

27

A35624

LEVER - control linkage-independent PTO

1шт.

28

A40794

DISC

WASHER - retainer, lever (Replaces A30108), control linkage-independent PTO

1шт.

29

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - 5/16" x 1/2" N.C. hex., control linkage-independent PTO

1шт.

30

92-5

LOCK WASHER,5/16"

control linkage-independent PTO 5/16"

1шт.

31

G45129

SPRING

- over center, control linkage-independent PTO

1шт.

32

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C., hex., control linkage-independent PTO

2шт.

33

G16883

BRACKET - anchor, spring, control linkage-independent PTO

1шт.

34

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Control linkage-independent PTO Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

35

92-6

LOCK WASHER,3/8"

control linkage-independent PTO 3/8"

1шт.

36

G16877

pivot, over center, control linkage-independent PTO

1шт.

37

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

Control linkage-independent PTO Hex, 3/8"-16 x 5/8", G5, Full Thd

3шт.

38

92-6

LOCK WASHER,3/8"

control linkage-independent PTO 3/8"

2шт.

39

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, , Control linkage-independent PTO Int Tooth, 3/8"

2шт.

40

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- 3/8" x 1-1/2" N.C., hex., control linkage-independent PTO

1шт.

41

G16875

RETAINER - spring, control linkage-independent PTO

1шт.

42

25-160

CLUTCH

NUT - 3/8" N.C., hex., control linkage-independent PTO

1шт.

43

G16872

BUSHING - pivot, control linkage-independent PTO

3шт.

44

G16878

LINK - conng., hand lever to pivot , control linkage-independent PTO

1шт.

45

G16869

SHAFT

- shift yoke, control linkage-independent PTO

1шт.

46

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Control linkage-independent PTO #6, 5/32" x 5/8"

2шт.

47

G13818

OIL RESERVOIR

SEAL - oil, shaft, control linkage-independent PTO

1шт.

48

G10439

COUPLING

YOKE - shift, control linkage-independent PTO

1шт.

49

G16873

SPACER - yoke shaft, control linkage-independent PTO

1шт.

50

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, , Control linkage-independent PTO 3/16" x 1 1/8", Slotted

1шт.
