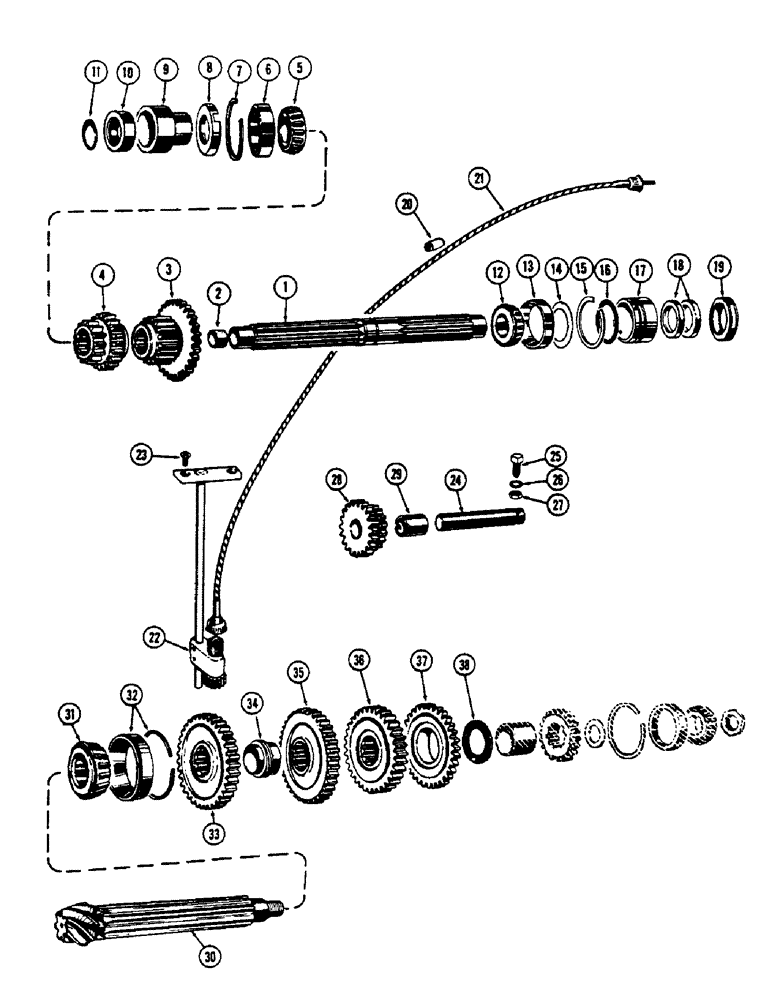

Запчасти Case 530CK (100) - TRANSMISSION SHAFT AND GEARS (21) - TRANSMISSION

1

G10314

SHAFT - main drv. (Incl. ref. 2) See G13462

1шт.

G13462

SHAFT

main drv. (Incl. ref. 2) w/shuttle or Case-O-Matic

1шт.

2

G10315

BUSHING

main drv. shaft

1шт.

3

G10318

GEAR

3rd (25T), mainshaft (See G16526)

1шт.

G16526

GEAR WHEEL

GEAR 3rd (25T), 4th (44T), mainshaft (High speed 4th gear)

1шт.

5

A29976

ROLLER BEARING

CONE - rear brg., mainshaft

1шт.

6

A29977

BEARING CUP

CUP - rear brg., mainshaft

1шт.

7

A29971

RING

SNAP RING - bearing retainer

1шт.

8

G10616

CUP

oiling

1шт.

9

G10338

HOUSING

rear oil seal

1шт.

10

G13802

OIL SEAL

OIL SEAL rear

1шт.

11

41-24

PLUG

- rear, manishaft (Used w/no. P.T.O.)

1шт.

12

G10424

CONE

- frt. brg. mainshaft

1шт.

13

G10425

CUP

- frt. brg. mainshaft

1шт.

14

G10340

SHIM,.007" Thk

Bearing adjusting .007" Thk

1шт.

14

G10341

SHIM,.005" Thk

Bearing adjusting .005" Thk

1шт.

15

A30092

RING

SNAP RING - front oil seal hsg.

1шт.

16

G10389

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

"O" RING frt. oil seal hsg. (2-7/8" O.D.)

1шт.

17

G16605

HOUSING

front oil seal

1шт.

18

G10422

OIL SEAL

OIL SEAL front

2шт.

19

G10311

COLLAR

pilot

1шт.

20

G10799

SEAL

SEAL speedometer cable

1шт.

21

G45230

HOUSING

CABLE speedometer dry (Incl. hsg.)

1шт.

22

G13067

DRIVE ASSEMBLY speedometer

1шт.

23

171-201

SCREW,Flat Hd, 5/16" x 1/2"

speedometer drv., 5/16" x 1/2" flat hd. spin lock

2шт.

24

G10328

SHAFT

reverse idler

1шт.

25

181-248

SET SCREW,Sq Hd, 3/8"-16 x 1 1/4"

SCREW set, 3/8" x 1-1/4" N.C. sq. hd. dog point

1шт.

26

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

27

25-106

NUT,3/8"-16, G5

3/8" N.C.

1шт.

28

G10312

GEAR

reverse idler (Incl. ref. 29)

1шт.

29

A30196

BUSHING

- idler gear

1шт.

30

G10319

COUNTERSHAFT (See Figure 102 & 103A)

1шт.

COUNTERSHAFT - USE A38401 FOR UNITS WITH DIFF. LOCK AND A38402 FOR UNITS WITHOUT DIFF LOCK.

1шт.

31

A30116

ROLLER BEARING,1.625" ID x 1.1875"

CONE - rear brg., countershaft

1шт.

32

A30115

CUP

- rear brg. countershaft

1шт.

33

A38157

SPRING

- countershaft, 1st (47T) (Replaces G10320)

1шт.

34

G13066

GEAR speedometer drive

1шт.

35

G10321

GEAR WHEEL

GEAR 2nd (42T, countershaft)

1шт.

36

G10322

GEAR

3rd. (38T), countershaft

1шт.

37

A37982

GEAR WHEEL

GEAR - oil slinger (38T) (Replaces G1182)

1шт.

38

G46070

WASHER

retainer, oil slinger (2-3/8" O.D. x 1-5/8" I.D. x 1/8")

1шт.

USE A39249 - WHEN THIS SPACER IS USED DO NOT USE G46070 & G13260 PER ECS 7571-9.

1шт.

39

G13260

BUSHING

SPACER gear

1шт.

40

G10323

GEAR 4th speed (24T), countershaft (See G16527)

1шт.

G16527

GEAR

4th speed (19T) countershaft (High speed)

1шт.

41

G10790

SPACER

gear (.164")

1шт.

G16530

SPACER

gear (.169")

1шт.

G10791

SPACER

gear (.174")

1шт.

G16531

SPACER

gear (.179)

1шт.

G10792

SPACER

gear (.184")

1шт.

G16532

SPACER

gear (189")

1шт.

G10793

SPACER

gear (.194")

1шт.

G16533

SPACER

gear (.199")

1шт.

G10794

SPACER

gear (.204")

1шт.

G16534

X

SPACER gear (.209")

1шт.

G10795

SPACER

gear (.214")

1шт.

G16535

SPACER

gear (.219")

1шт.

G16510

SPACER

gear (.224")

1шт.

G16536

SPACER

gear (.299")

1шт.

G16511

SPACER

gear (.234")

1шт.

G16537

X

SPACER gear (.239")

1шт.

G16512

SPACER

gear (.244")

1шт.

42

A29971

RING

SNAP RING - bearing retainer

1шт.

43

A29977

BEARING CUP

CUP - frt. bearing, countershaft

1шт.

44

A30072

ROLLER BEARING,1.19" ID x 0.771"

CONE - frt. brg. countershaft

1шт.

45

G49010

LOCK NUT

adjusting, countershaft

1шт.
