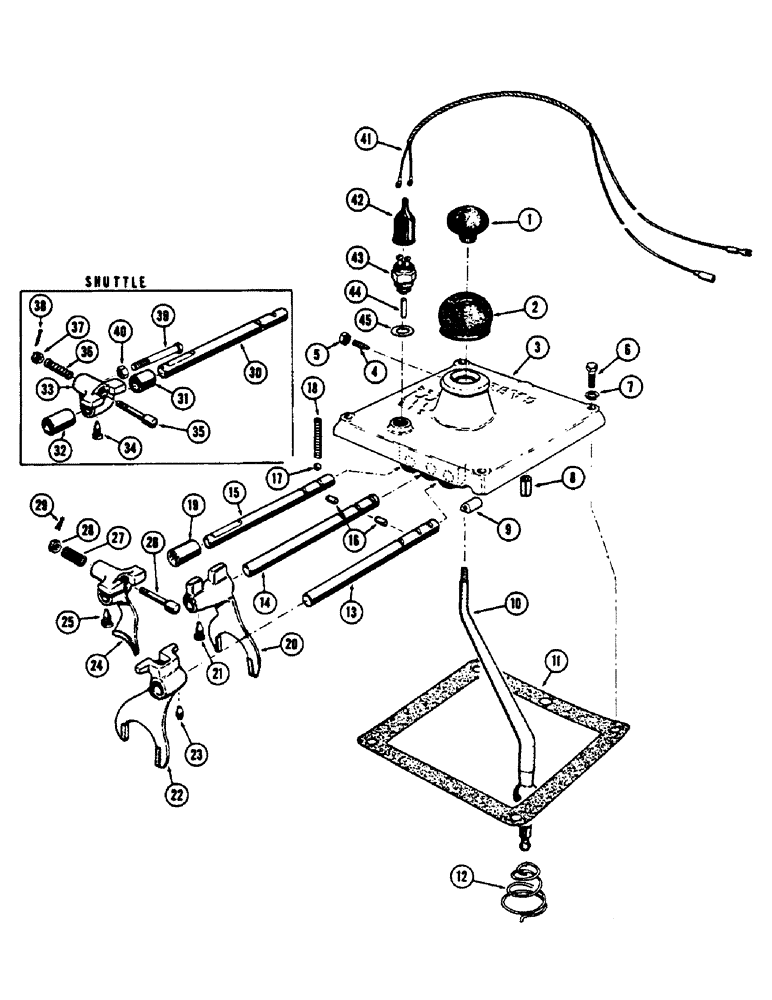

Запчасти Case 530CK (096) - GEAR SHIFT COVER (21) - TRANSMISSION

1

A26727

BALL

KNOB - shift lever

1шт.

2

A57876

COVER

- dust, shift lever (Replaces A26956)

1шт.

3

G1328

COVER ASSY

COVER control

1шт.

4

G15468

SET SCREW,5/16" - 18 x 3/4"

retaining, shift lever

1шт.

5

25-145

JAM NUT,Jam, 5/16"-18, G5

jam, 5/16" N.C. hex.

1шт.

6

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

cover, 3/8" x 1-1/2" N.C. hex. hd.

4шт.

7

92-6

LOCK WASHER,3/8"

std. 3/8"

4шт.

8

138-200

LOCK PIN,1/2" x 1", Slotted

Pin, , cover to trans. case 1/2" x 1", Slotted

1шт.

9

G15628

LEVER

gear shift

1шт.

11

G10342

GASKET

cover to transmission case

1шт.

12

G10611

SPRING

support, shift lever

1шт.

13

G10327

ROD

RAIL - shift, 3rd and 4th speeds

1шт.

14

G10326

ROD

RAIL - shift, 1st and 2nd speeds

1шт.

15

A35313

RAIL

- reverse shift

1шт.

16

A29060

PLUG

- interlock, shift rail

2шт.

17

211-11

BALL,3/8" Dia

- mesh lock, shift rail (.) 3/8" Dia

3шт.

18

G47039

SPRING

mesh lock

3шт.

19

G49611

SPACER

reverse shift rail (1-1/4" long)

1шт.

20

A41467

FORK

- shift, 1st and 2nd speeds (Replaces G10332)

1шт.

21

A29964

LOCK SCREW,Sq Hd, 3/8" - 24 x 27/32", Drilled

- lock

1шт.

22

A41468

PACKAGE, REPAIR

FORK - shift, 3rd and 4th speeds (Replaces G10333)

1шт.

23

A29965

LOCK SCREW,3/8" - 24 x 11/16", Drilled

- lock

1шт.

24

G10334

FORK TEDDER

FORK shift, reverse (Not used with shuttle)

1шт.

25

A29964

LOCK SCREW,Sq Hd, 3/8" - 24 x 27/32", Drilled

- lock

1шт.

26

A29963

PLUNGER

- reverse latch

1шт.

27

T25643

VALVE SPRING

SPRING - plunger, reverse latch

1шт.

28

25-135

SLOTTED NUT,5/16"-24, G5

NUT slotted, 5/16" N.F.

1шт.

29

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

30

A35313

RAIL

reverse shift

1шт.

31

G49632

SPACER

rear, reverse shift rail (3/4" lg.) w/shuttle only

1шт.

32

G49611

SPACER

reverse shift rail (1-1/4" lg.)

1шт.

33

G15585

LUG reverse shift rail (w/shuttle only)

1шт.

34

A29964

LOCK SCREW,Sq Hd, 3/8" - 24 x 27/32", Drilled

- lock

1шт.

35

A29963

PLUNGER

- reverse latch

1шт.

36

T25643

VALVE SPRING

SPRING - plunger, reverse latch

1шт.

37

25-135

SLOTTED NUT,5/16"-24, G5

NUT slotted, 5/16" N.F.

1шт.

38

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

39

13-548

CAP,Hex, 5/16" - 18 x 3", Gr 5

BOLT - 5/16" x 3" N.C. hex

1шт.

40

9635082

NUT,5/16" - 18, Gr 5

5/16" N.C. hex.

1шт.

41

G44066

CABLE

safety sw. to starting sw & solenoid

1шт.

42

A20991

BOOT

cover, safety sw

1шт.

43

A20990

SWITCH

- safety, neutral start

1шт.

44

G15574

PLUNGER

safety switch

1шт.

45

G49401

SHIM,.005" Thk

Safety switch .005" Thk

1шт.

G49402

SHIM,.010" Thk

Safety switch .010" Thk

1шт.
