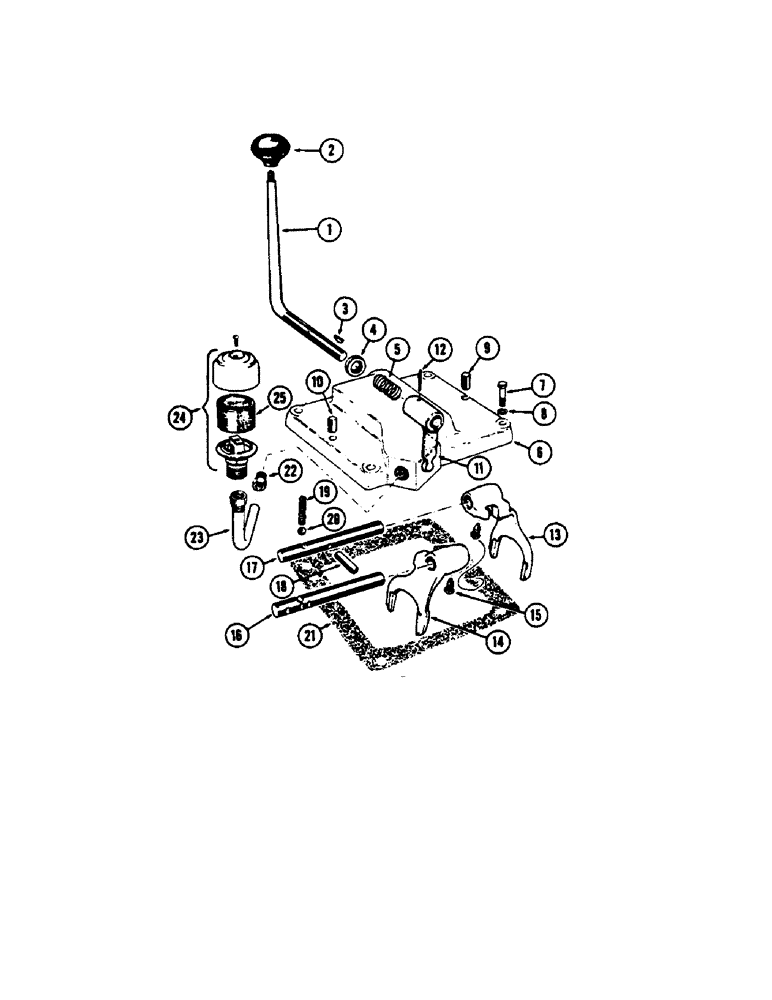

Запчасти Case 530CK (092) - TRIPL-RANGE CONTROL COVER (21) - TRANSMISSION

1

G15655

X

LEVER - hand (Order 1-A36859, 1-A36873 & 1-138-2024)

1шт.

2

A26727

BALL

KNOB - hand lever

1шт.

3

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

4

A26778

SEAL

OIL SEAL - hand lever

1шт.

5

G10715

VALVE SPRING

SPRING hand lever

1шт.

6

G1361

SPARE PART

COVER control

1шт.

7

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3/8" x 1-1/2" N.C. hex. hd.

1шт.

8

92-6

LOCK WASHER,3/8"

std. 3/8"

1шт.

9

G10711

PIN

dowel, rear (1/2 x 3/4")

1шт.

10

A29426

AXLE PIN

PIN - dowel, front (3/8 x 3/4")

1шт.

11

G16663

LEVER - shift fork, low range

1шт.

12

138-45

LOCK PIN,3/32" x 1", Slotted

PIN, 3/32" x 1", Slotted

1шт.

13

G10399

FORK - shift, low range

1шт.

14

G10398

FORK TEDDER

FORK - shift, direct and high range

1шт.

15

A29964

LOCK SCREW,Sq Hd, 3/8" - 24 x 27/32", Drilled

- lock, shift fork

2шт.

16

G10392

RAIL shift, direct and high range

1шт.

17

G10394

RAIL shift, low range

1шт.

18

G10391

PLUG interlock, shift rail

1шт.

19

G47039

SPRING

detent, shift rail

2шт.

20

211-11

BALL,3/8" Dia

- detent, shift rail

2шт.

21

G46842

GASKET

control cover

1шт.

22

222-508

TUBE NUT,1"-18

NUT breather tube to cover (81LB-3/4")

1шт.

23

G30309

BREATHER,0.7535" OD x 1.5" L

TUBE breather

1шт.

24

A9238

BREATHER

oil, torque tube (Incl. ref. 25)

1шт.

25

A10059

FILTER, ELEMENT

ELEMENT filter, oil breather

1шт.
