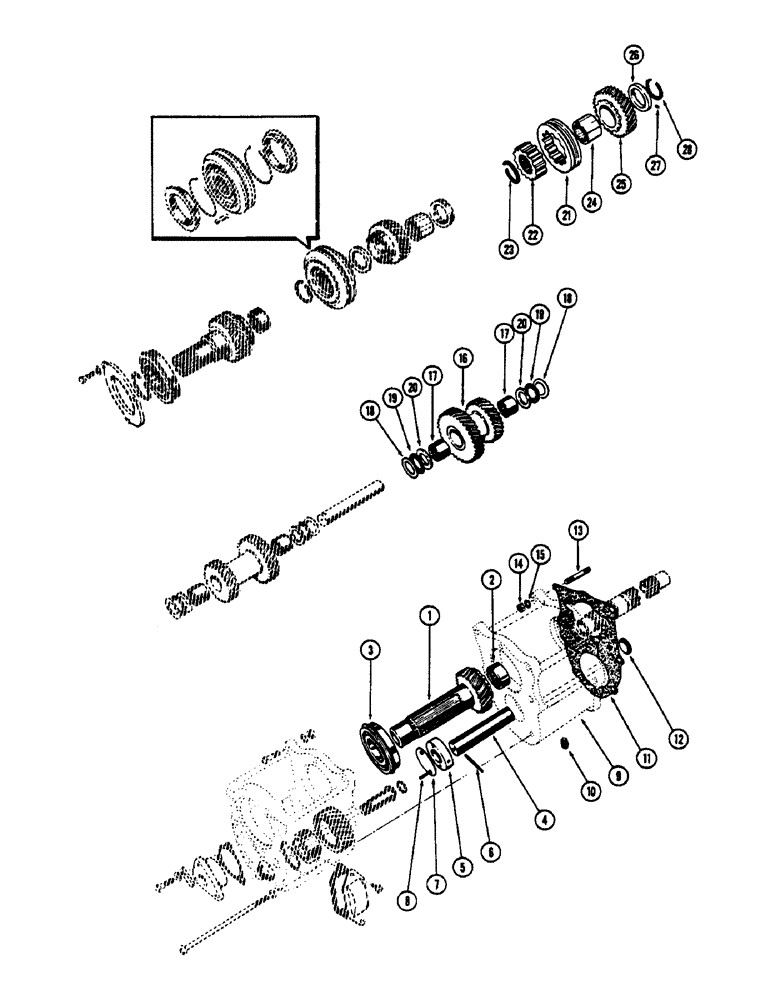

Запчасти Case 530CK (090) - DUAL RANGE GEAR HOUSING (21) - TRANSMISSION

1

G16623

GEAR

- input (25T)

1шт.

2

G10419

NEEDLE BEARING

BEARING - needle, input gear

1шт.

3

G13606

BALL BEARING

BEARING - ball, input gear (N.D. #43208 LYIA)

1шт.

4

G16606

SHAFT

COUNTERSHAFT - low range

1шт.

5

G16607

COLLAR

- countershaft

1шт.

6

138-104

LOCK PIN,3/16" x 2", Slotted

PIN, , Collar to countershaft 3/16" x 2", Slotted

1шт.

7

G16608

SHIM,.005" Thk

Countershaft .005" Thk

1шт.

8

138-88

LOCK PIN,3/16" x 1/2", Slotted

ROLL PIN - shim to collar, 3/16 x 3/8"

2шт.

9

G1254

HOUSING - low range gear

1шт.

11

G46841

GASKET

- housing to trans. case

1шт.

12

A30084

PLUG

- rear, housing (1-1/2" Welch)

1шт.

13

G10710

STUD

- hsg. to trans. case (3/8 x 1-3/4")

7шт.

14

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

7шт.

15

92-6

LOCK WASHER,3/8"

stud 3/8"

7шт.

16

G16611

GEAR

- cluster, countershaft (34 T and 27 T)

1шт.

17

F51079

NEEDLE BEARING

BEARING - needle, cluster gear (Torrington #JH 1616-OH)

2шт.

18

G46081

BEARING WASHER

WASHER - thrust, outer, cluster gear (.031")

2шт.

19

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST, Cluster gear (Torrington #NTA-1625)

2шт.

20

G46082

WASHER

- thrust, inner cluster gear (.125")

2шт.

21

A38153

COLLAR

- shift (Replaces G16622)

1шт.

22

G16621

CARRIER

- shift collar (24 T)

1шт.

23

A27565

RING

SNAP RING - shift cover (.076")

1шт.

A27566

RING

SNAP RING - shift collar (.080")

1шт.

A27567

RING

SNAP RING - shift collar (.083")

1шт.

G46097

RING

SNAP RING - shift collar (.087")

1шт.

A27568

RING

SNAP RING - shift collar (.091")

1шт.

24

G16619

SLEEVE

- output gear

1шт.

25

G16620

GEAR

- output (32 T)

1шт.

26

G13458

COLLAR

- thrust, output gear (Includes ref. 27)

1шт.

27

138-18

LOCK PIN,5/64" x 3/8", Slotted

PIN, , Thrust collar 5/64" x 3/8", Slotted

1шт.

28

A26946

RING

SNAP RING - thrust collar

1шт.
