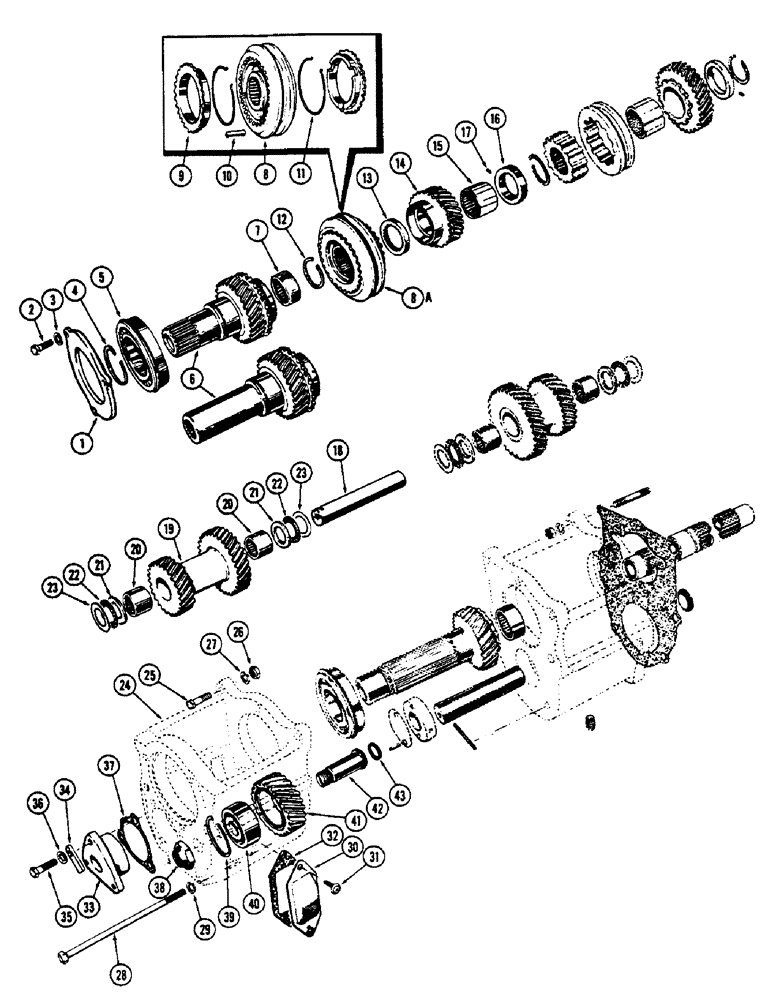

Запчасти Case 530CK (088) - SHUTTLE GEAR HOUSING (21) - TRANSMISSION

1

G16627

RETAINER

bearing, shuttle input gear

1шт.

2

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

3

92-6

LOCK WASHER,3/8"

std. 3/8"

3шт.

4

A27209

RING

SNAP RING - bearing to shuttle input gear

1шт.

5

G13607

BALL BEARING

BEARING - ball, input gear (N D #4321-LXIA)

1шт.

6

G16799

GEAR WHEEL

GEAR input, w/torque conv. drv. (Ext. splines); Mates with G14278 Shaft on Figure 144

1шт.

G16626

GEAR

input w/std. drv. (Internal splines); Mates with G15967 Shaft on Figure 74

1шт.

7

A35767

NEEDLE BEARING,Needle, 34.91mm ID x 44.46mm OD x 19.05mm W

BEARING needle, input gear (Torrington #JH-2212)

1шт.

8a

G45049

SYNCHRONIZER

UNIT - complete, Includes: Ref. 8 - 11

1шт.

8

NSS

NOT SOLD SEPARAT

HUB & SLEEVE - synchronizer (Order G45049)

1шт.

9

G46077

RING

- blocking

2шт.

10

G46078

PLATE

- shifter

3шт.

11

A40766

SPRING

- synchronizer unit

2шт.

12

A27565

RING

SNAP RING - synchronizer unit (.076")

1шт.

A27566

RING

SNAP RING - synchronizer unit (.080")

1шт.

A27567

RING

SNAP RING - synchronizer (.083")

1шт.

G46097

RING

SNAP RING synchronizer unit (.087")

1шт.

A27568

RING

SNAP RING - synchronizer unit (.091")

1шт.

13

G16625

COLLAR

thrust, shuttle output gear

1шт.

14

G16624

GEAR

output, shuttle (27T)

1шт.

15

G16619

SLEEVE

output gear, shuttle

1шт.

16

G13459

COLLAR

thrust, shuttle output gear (Incl. ref. 17)

1шт.

17

138-18

LOCK PIN,5/64" x 3/8", Slotted

PIN, 5/64" x 3/8", Slotted

1шт.

18

G16617

SHAFT

COUNTERSHAFT cluster gear

1шт.

19

G16615

GEAR

cluster, shuttle countershaft (25T and 30T)

1шт.

20

G10420

NEEDLE BEARING

BEARING - cluster gear (Torrington #B1616)

2шт.

21

G46082

WASHER

thrust, inner, cluster gear (.125")

2шт.

22

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST, Cluster gear (Torrington #NTA-1625)

2шт.

23

G46081

BEARING WASHER

WASHER thrust, outer, cluster gear (.031")

2шт.

24

G1255

HOUSING shuttle gear (w/torque conv. drv.)

1шт.

G1205

HOUSING

shuttle gear (w/std. drive)

1шт.

25

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.

26

25-106

NUT,3/8"-16, G5

3/8" N.C. hex.

3шт.

27

92-6

LOCK WASHER,3/8"

std. 3/8"

3шт.

28

13-6104

BOLT,Hex, 3/8" - 16 x 6-1/2", Gr 5

4шт.

29

92-6

LOCK WASHER,3/8"

std. 3/8"

4шт.

30

G16794

COVER gear opening (w/torque conv. only)

1шт.

31

182-506

SCREW 5/16" x 1/2 pan hd. recessed Phillips (Spin lock)

2шт.

32

G46816

GASKET

gear cover (w/torque conv. only)

1шт.

33

G1206

RING

BUSHING frt. countershaft

1шт.

34

G16618

LATCH

LOCK countershaft

1шт.

35

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3/8" x 1-1/2" N.C. hex. hd.

1шт.

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

36

92-6

LOCK WASHER,3/8"

std. 3/8"

3шт.

37

G16616

SHIM,.005" Thk

Cluster gear .005" Thk

1шт.

38

G16614

NUT

idler gear stud

1шт.

39

A27150

RING

SNAP RING - bearing, idler gear

1шт.

40

G13608

BALL BEARING

BEARING ball idler, gear (N.D. #5304LXIA)

1шт.

41

G16612

GEAR

reverse idler (24T)

1шт.

42

G16613

STUD

reverse idler gear

1шт.

43

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - between housings

1шт.
