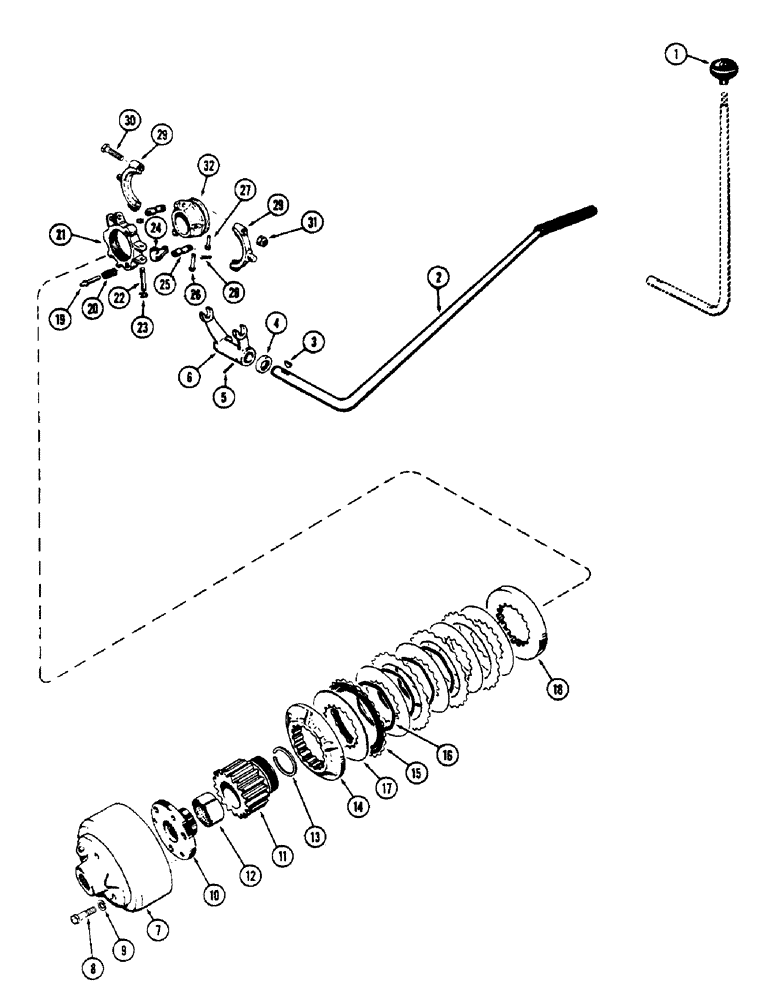

Запчасти Case 530CK (094) - HAND CLUTCH (18) - CLUTCH

1

A26727

BALL

KNOB - clutch lever (For old style lever)

1шт.

2

A37018

LEVER

- hand clutch

1шт.

3

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

4

A50421

OIL SEAL,19.05mm ID x 31.95mm OD x 6.73mm Thk

OIL SEAL - hand lever (Replaces G13827)

1шт.

5

138-99

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, , Yoke to clutch lever 3/16" x 1 3/8", Slotted

1шт.

6

G10439

COUPLING

YOKE clutch throwout

1шт.

7

G10440

DRUM HUB

DRUM clutch

1шт.

8

G49021

BOLT (SPREADER)

BOLT drilled, Serial Range: drum-hub

3шт.

9

92-6

LOCK WASHER,3/8"

3шт.

10

G10441

HUB CAP

HUB clutch drum

1шт.

11

G14059

HUB CAP

HUB clutch asembly (Incl. ref. 12 and 13)

1шт.

12

G10437

BEARING

BUSHING clutch hub

1шт.

13

G10438

RING

SNAP RING clutch hub

1шт.

14

A7107

PLATE

locking

1шт.

15

A11127

PLATE

clutch drv. (External tooth)

5шт.

16

A27591

VALVE SPRING

SPRING - separator, clutch plate

5шт.

17

A57170

BRAKE DISC

PLATE - clutch drv. (Internal tooth) (Replaces A7102)

6шт.

18

A26225

LARGE PLATE

PLATE - pressure

1шт.

19

A34248

LOCK PIN,7.85mm OD x 39.62mm L

PIN - lock, clutch adjusting yoke

2шт.

20

A26944

VALVE SPRING

SPRING - lock, pin, clutch adjusting

2шт.

21

A27592

FORK

YOKE - adjusting, clutch

1шт.

22

G10658

AXLE PIN

PIN pivot, clutch finger

3шт.

23

G10659

SNAP RING,#31, Ext

Ring, Snap, , pivot pin #31, Ext

6шт.

24

A36552

FINGER

- clutch

3шт.

25

A57917

DRAG LINK

LINK - clutch finger (Replaces A27596)

6шт.

26

A8824

PIN

inner, link (1-15/64")

3шт.

27

A8823

PIN,6.29mm OD x 26.99mm L

outer, link (1-1/32")

3шт.

28

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

6шт.

29

A28596

COLLAR CLAMP

COLLAR - throwout (Includes ref. 30 and 31)

1шт.

30

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

5/16" x 2" N.F. hex. hd.

2шт.

31

131-3

LOCK NUT,5/16"-24, GB

NUT stop, 5/16" N.F. hex.

2шт.

32

A26226

SLEEVE CYLINDER

SLEEVE - sliding clutch throwout

1шт.
