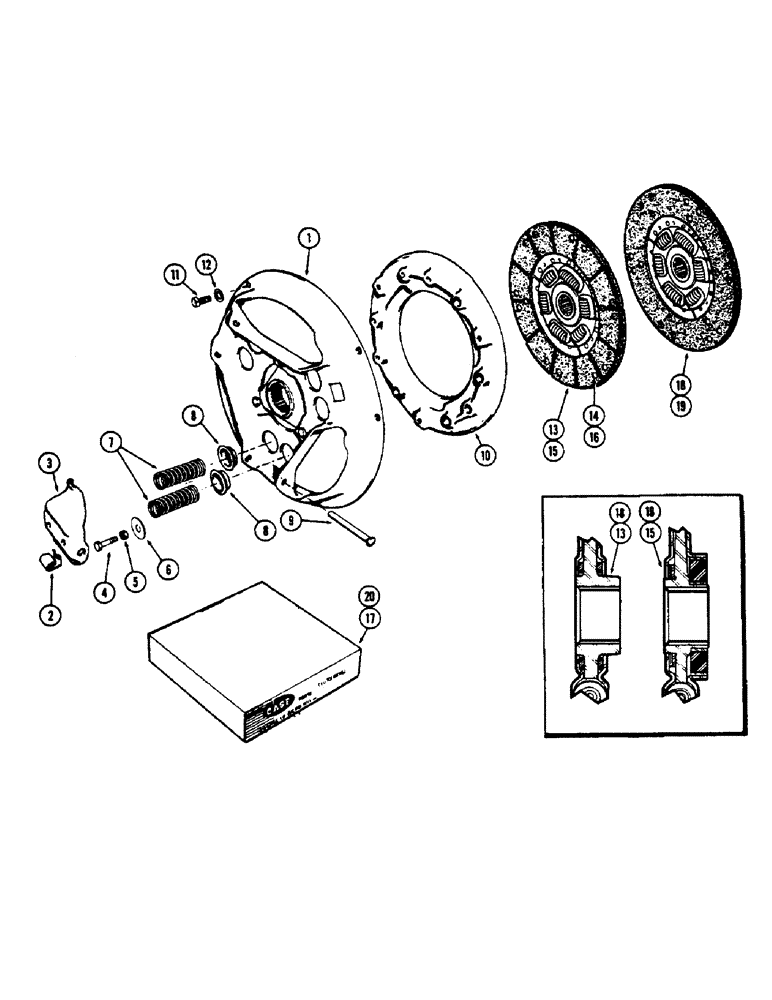

Запчасти Case 530CK (072[1]) - STANDARD CLUTCH ASSEMBLY (18) - CLUTCH

A36962

PLATE

ASSY. - pressure, Includes: Ref. 1 - 10

1шт.

A36962C

CORE-CLUTCH PLATE

Return Number, Plate, Pressure, N.A. Only

1шт.

1

NSS

NOT SOLD SEPARAT

BRACKET & HUB

1шт.

2

G46061

CLIP

clutch return

3шт.

3

G47010

LEVER

3шт.

4

G49004

SCREW

- adjusting (Replaces A40205)

3шт.

5

G49005

NUT jam

3шт.

6

G49048

WASHER

3шт.

7

G47013

SPRING

lever (White)

6шт.

8

G47012

CUP spring

6шт.

9

A41427

AXLE PIN

PIN - pivot (Replaces G47011)

3шт.

10

G4506

PLATE

- pressure

1шт.

11

G11207

BOLT

pressure plate to flywheel (5/16" x 1")

6шт.

13

A36414

PLATE ASSY.

PLATE - driving (Gas engine) , 17 splines 11", See ref. 18

1шт.

14

A30316

RIVET

18шт.

15

A41911

PLATE

- driving (Diesel engine) (See ref. 19) (Replaces A36036)

1шт.

16

A30316

RIVET

12шт.

17

A36149

KIT

FACING - A36414 & A36036 plates

1шт.

18

G45797

PLATE

- driving (Gas. eng. w/fork lift), 17 splines 11"

1шт.

19

A37192

PLATE

- driving (Diesel eng. w/fork lift)

1шт.

20

G45702

FACING KIT - G45797 & A37192 plates, 11" diameter, 18 holes

1шт.

A36142

PLATE

clutch, 10 spline 11"

1шт.
