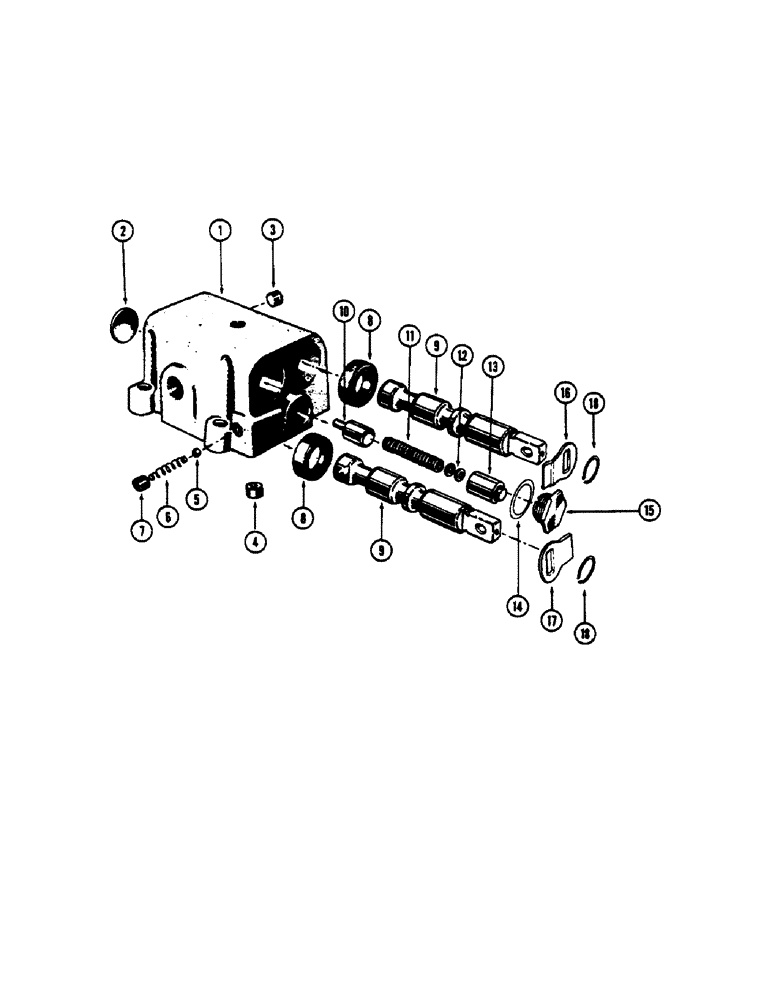

Запчасти Case 530CK (082) - G14458 TORQUE CONVERTER CONTROL VALVE (17) - TORQUE CONVERTER

1

A11504

BODY

1шт.

2

41-16

PLUG,Exp, 1"

- spool opening

2шт.

3

221-1849

PLUG

- pipe, 1/8" hex. socket hd.

1шт.

4

A20092

PLUG

- pressure, regulator orifice

1шт.

5

211-7

BALL,1/4" Dia

- steel, check valve 1/4" Dia

1шт.

6

A11517

VALVE SPRING

SPRING - check valve

1шт.

7

221-1849

PLUG

- pipe, 1/8" hex. socket hd.

1шт.

8

A11507

OIL SEAL

OIL SEAL - spool

2шт.

9

A11506

SPOOL

2шт.

10

A11510

PLUNGER

- small, pressure regulator

1шт.

11

A11512

VALVE SPRING

SPRING - pressure regulator

1шт.

12

195-10

WASHER,#8

- 3/16" plain

3шт.

13

A11511

PLUNGER

- large, pressure regulator

1шт.

14

A11513

GASKET

- cap, pressure regulator

1шт.

15

A11514

CAP - pressure regulator

1шт.

16

G16809

PLATE ASSY.

PLATE - interlock, R.H. spool

1шт.

17

G16808

PLATE ASSY.

PLATE - interlock, L.H. spool

1шт.

18

A29329

RING, SNAP

SNAP RING - interlock plate

2шт.
