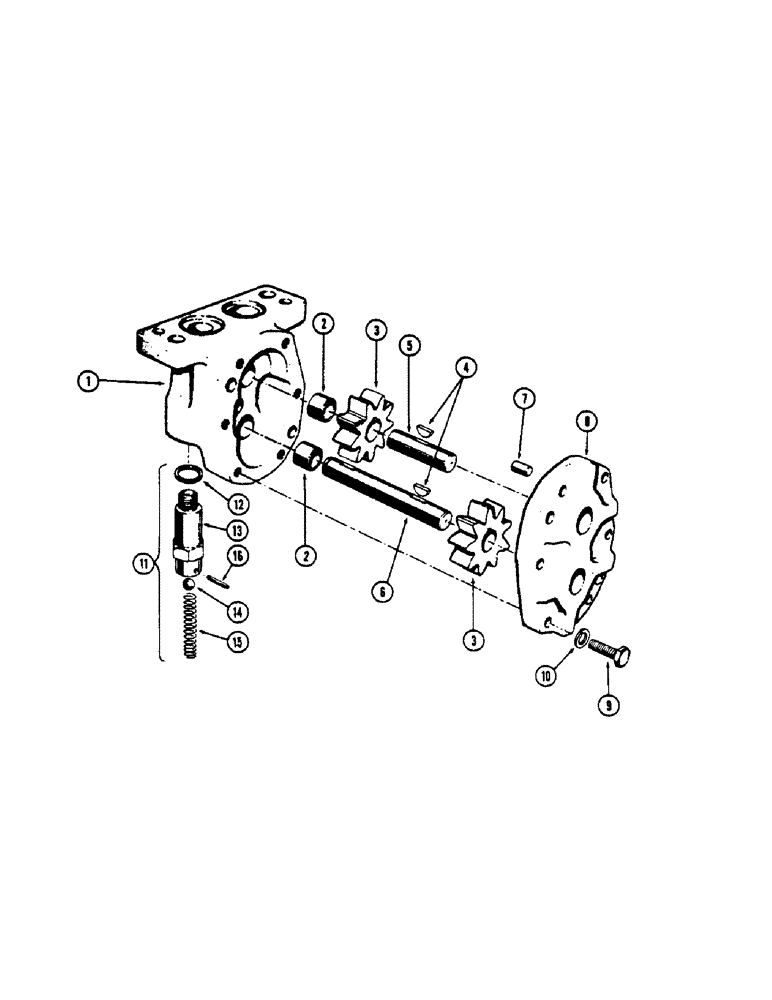

Запчасти Case 530CK (082[1]) - G45386 TORQUE CONVERTER PUMP (17) - TORQUE CONVERTER

1

A11535

HOUSING - (Includes ref. 2)

1шт.

2

NSS

NOT SOLD SEPARAT

BUSHING

1шт.

3

A11523

GEAR

2шт.

4

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

Gear to shaft #3, 1/8" x 1/2"

2шт.

5

A11525

SHAFT

- idler

1шт.

6

A11522

SHAFT

- drive

1шт.

7

A11528

PIN,7.81mm OD x 14.29mm L

- dowel

2шт.

8

A11536

COVER - (Includes ref. 2)

1шт.

9

15-412

X

BOLT - 1/4 x 3/4" N.C. hex. hd.

6шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

11

G30570

VALVE

- relief, complete, Includes: Ref. 12 - 16

1шт.

12

A11530

GASKET

-, Serial Range: valve-body

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - (Order G30570)

1шт.

14

211-9

BALL,5/16" Dia

- (5/16" chrome)

1шт.

15

G48512

SPRING

- relief

1шт.

16

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.
