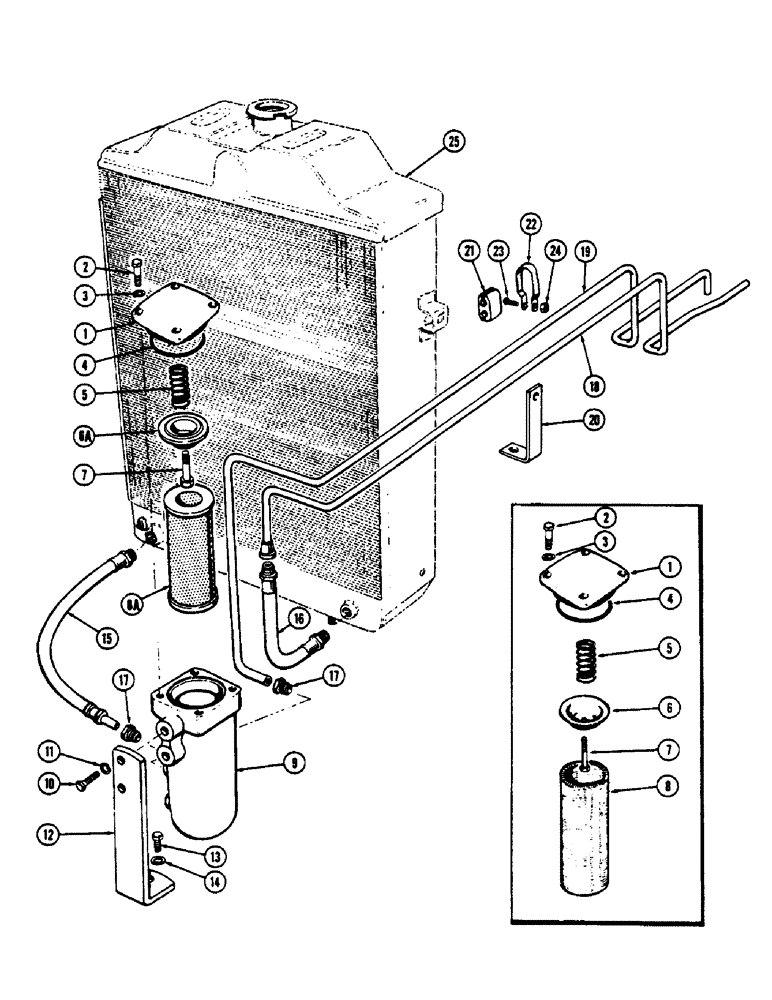

Запчасти Case 530CK (080) - OIL FILTER AND COOLING TUBES TORQUE CONVERTER DRIVE (17) - TORQUE CONVERTER

1

G1248

COVER

CAP cover, filter body

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

3

92-6

LOCK WASHER,3/8"

std. 3/8"

4шт.

4

A29884

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

"O" RING - cover cap

1шт.

5

A29993

VALVE SPRING

SPRING - filter element retainer

1шт.

6

A29236

CYLINDER END CAP

CAP - retainer (Use with paper element)

1шт.

6a

A36523

CAP

- retainer (Use with metal covered element)

1шт.

7

13-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

1шт.

8

G13113

ELEMENT,2.25" OD x 6" L

ELEMENT - filter (Paper) Use ref. 6A & 8A

1шт.

8a

A36524

FILTER, ELEMENT

ELEMENT - filter (Metal covered)

1шт.

9

G1295

HOUSING

oil filter element

1шт.

10

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

11

92-6

LOCK WASHER,3/8"

std. 3/8"

2шт.

12

A35596

BRACKET

filter housing

1шт.

13

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

14

92-6

LOCK WASHER,3/8"

std. 3/8"

2шт.

15

A35584

HOSE ASSY.

HOSE, Serial Range: filter-radiator

1шт.

16

G45133

HYDRAULIC HOSE,0.50" ID x 16.00"

HOSE radiator to return tube

1шт.

17

222-506

TUBE NUT,11/16"-16

NUT tube and hose (81LB-1/2" O.D.)

5шт.

18

A36537

TUBE

- return, Serial Range: hose-valve

1шт.

19

A36536

TUBE

- torque, Serial Range: tube-filter

1шт.

20

A35709

BRACKET support, oil, Serial Range: tubes-engine

1шт.

21

G46835

GROMMET

rubber, oil tubes

3шт.

22

G46194

CLAMP

oil tubes

3шт.

23

174-100

SCREW,Sl Rnd Hd, #10 - 32 x 3/4"

mach., #10-32 x 3/4" rd. hd.

3шт.

24

129-27

NUT,Hex, #10 - 32

hex. #10-32

3шт.

25

A35583

RADIATOR

1шт.
