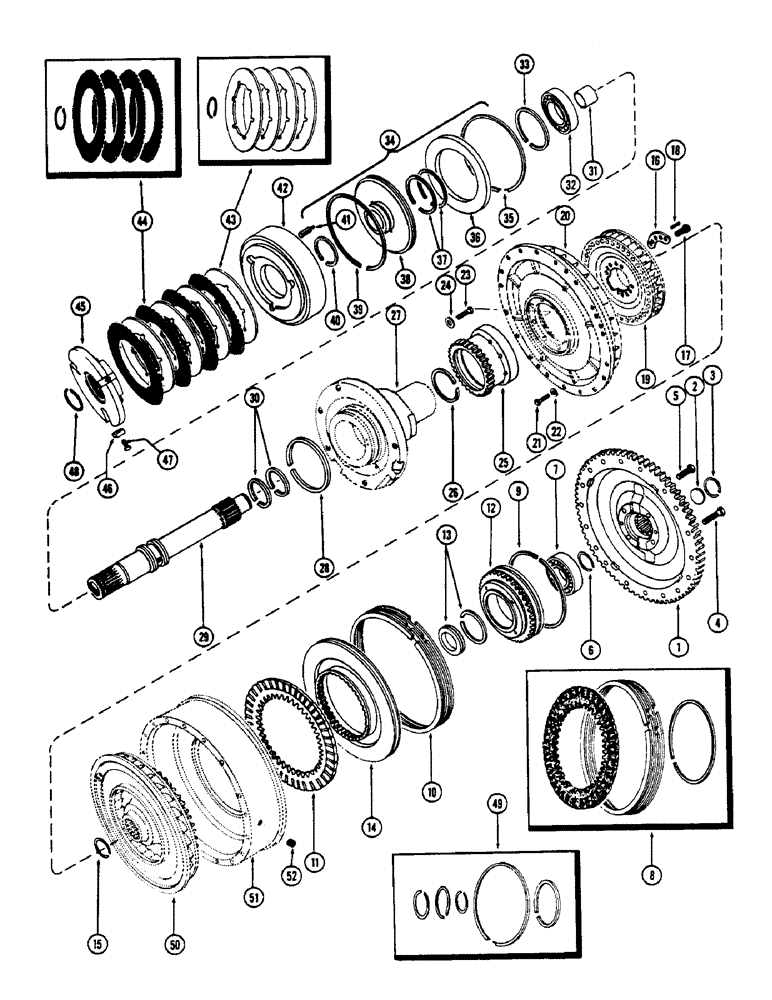

Запчасти Case 530CK (077A) - G30373 TORFQUE CONVERTER PARTS (17) - TORQUE CONVERTER

1

A36378

CARRIER - clutch, Includes: Ref. 2 and 3

1шт.

2

A36372

PLUG

1шт.

3

A36277

SNAP RING,1.125", Int, #112

1шт.

4

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- carrier to hsg. 5/16" x 1-1/4" N.C. hex. hd.

18шт.

5

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Brg. carrier Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

6

A36385

RING

SNAP RING - frt. bearing

1шт.

7

A36266

BEARING

- front

1шт.

8

A36260

PLATE

KIT - front clutch plate, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

RING - seal

1шт.

10

NSS

NOT SOLD SEPARAT

RING - piston

5шт.

11

NSS

NOT SOLD SEPARAT

PLATE - clutch

1шт.

12

A36265

CARRIER

- bearing

1шт.

13

A36267

SEAL

OIL SEAL - bearing carrier

1шт.

14

A36264

PISTON

- clutch

1шт.

15

G46700

SNAP RING

-, Serial Range: turbine-sleeve

1шт.

16

A36278

PLATE

- lock

2шт.

17

166-24

12 PT SCREW,Flg, 5/16" - 18 x 3/4", Gr 8

SCREW - cap, 5/16" x 3/4" N.C. socket hd.

6шт.

18

138-150

LOCK PIN,5/16" x 13/16", Slotted

PIN, 5/16" x 13/16", Slotted

4шт.

19

A41480

STATOR

1шт.

20

A41478

IMPELLER

1шт.

21

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Impeller to hsg. Hex, 5/16"-18 x 3/4", G5, Full Thd

18шт.

22

95-5

WASHER,3/8" x 7/8" x .083"

- plain, 5/16"

18шт.

23

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Gear to impeller Hex, 5/16"-18 x 3/4", G5, Full Thd

8шт.

24

95-5

WASHER,3/8" x 7/8" x .083"

- plain, 5/16"

8шт.

25

A36270

X

GEAR - pump drive (Order 1-A43275 & 1-A36273), Includes: Ref. 26

1шт.

A36272

BUSHING,76.44mm ID x 81.08mm OD x 19.05mm L

BUSHING - drive gear

1шт.

26

A36273

RING

- seal

1шт.

27

A41477

CARRIER

ASSY. - stator

1шт.

A41482

SLEEVE, split (Not illust.)

1шт.

28

A36412

SEAL ASSY.

RING - seal

1шт.

29

A36274

SLEEVE - output, Includes: Ref. 30 and 31

1шт.

30

A20229

RING

- seal

2шт.

31

G49634

BUSHING

1шт.

32

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

BEARING - rear

1шт.

33

A36373

RING, SNAP

SNAP RING -, Serial Range: bearing-sleeve

1шт.

34

G45476

PISTON ASSY.

- master clutch, Includes: Ref. 35 - 42

1шт.

35

A36374

RING, SNAP

SNAP RING -, Serial Range: plate-piston

1шт.

36

NSS

NOT SOLD SEPARAT

PLATE - piston

1шт.

37

A36376

SEAL

RING - seal, piston carrier

2шт.

38

NSS

NOT SOLD SEPARAT

CARRIER - piston

1шт.

39

A36379

SEALING RING

RING - seal, piston carrier

1шт.

40

A36380

SEAL

RING - piston

1шт.

41

A40842

AXLE PIN

PIN - piston carrier

1шт.

42

NSS

NOT SOLD SEPARAT

PISTON - clutch

1шт.

43

G14280

CLUTCH ASSEMBLY

KIT - internal tooth clch. plate (Incl. ref. 48)

1шт.

44

G14281

CLUTCH ASSEMBLY

KIT - external tooth clch. plate (Incl. ref. 48)

1шт.

45

G45438

PLATE ASSY.

PLATE - back, master clutch, Includes: Ref. 46 and 47

1шт.

46

A36383

KEY

3шт.

47

A36382

SCREW

3шт.

48

G46700

SNAP RING

- backplate

1шт.

49

A36276

KIT

- snap ring (Incl. A36277, A36385, (2) G46700, A36373 and A36374)

1шт.

50

A41479

TURBINE

1шт.

51

A41492

CONVERTER

HOUSING

1шт.

52

221-1842

DRAIN PLUG,Hex Soc, 3/8"-18 NPTF

PLUG - pipe, 1/8" hex. sckt. hd.

1шт.

G46817

GASKET,293.62mm ID x 314.58mm OD x 4.95mm Thk

- conv. to flywheel (Not shown)

1шт.

G30373

CONVERTER

TORQUE CONVERTER - complete

1шт.
