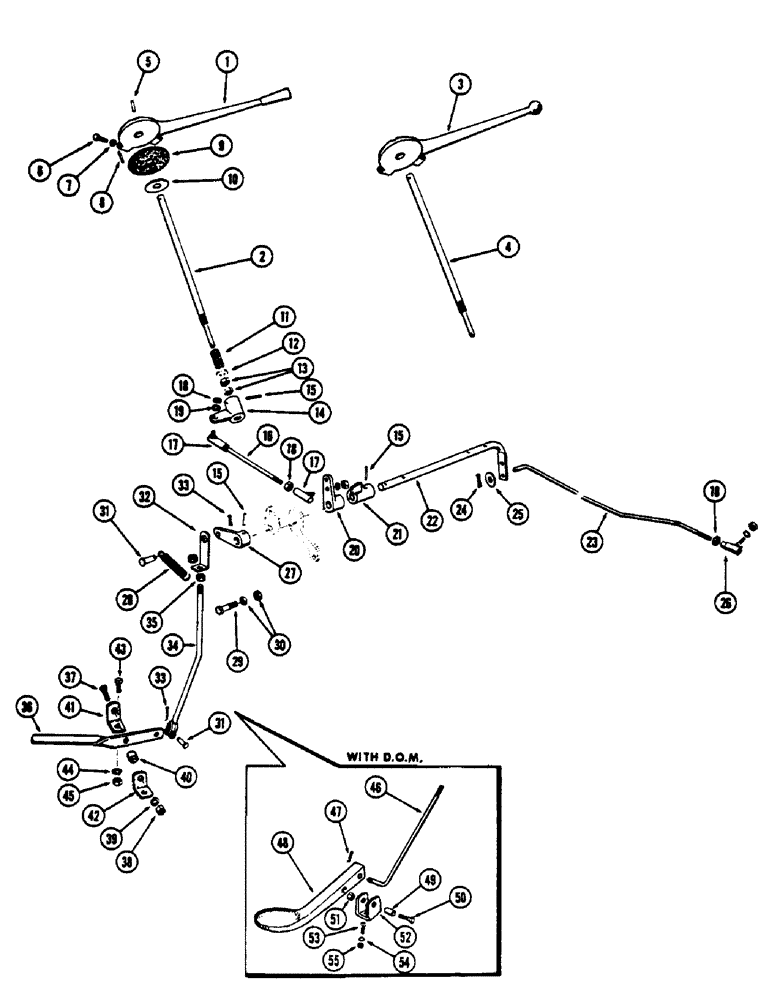

Запчасти Case 530CK (058) - THROTTLE CONTROL LINKAGE, (188) DIESEL ENGINE (10) - ENGINE

1

A38018

LEVER

- hand, Start Serial: 8245396

1шт.

2

A36512

SHAFT

- hand lever, Start Serial: 8245396

1шт.

3

A35632

X

LEVER - hand (Can use ref. 1 and 2)

1шт.

4

A35643

SHAFT - hand lever (Can use ref. 1 and 2)

1шт.

5

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

6

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

7

25-104

NUT,1/4"-20, G5

2шт.

8

138-130

LOCK PIN,1/4" x 3/4", Slotted

PIN, , Lever stop 1/4" x 3/4", Slotted

1шт.

9

A11969

GASKET

DISC. - friction

1шт.

10

A32838

WASHER

- friction disc.

1шт.

11

A34113

SPRING

- tension

1шт.

12

195-33

WASHER,1/2"

- plain 1/2"

1шт.

13

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam, 1/2" N.F. hex.

2шт.

14

A35644

LEVER - lower, hand lever shaft

1шт.

15

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

4шт.

16

A35642

ROD

- intermediate

1шт.

17

A10329

BALL JOINT,1/4" - 28 x 1"

- intermediate shaft

2шт.

18

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

4шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

20

A35638

LEVER

- cross shaft

1шт.

21

A35639

LEVER

- override, foot throttle

1шт.

22

A35636

SHAFT

- cross, throttle lever

1шт.

23

A35635

ROD - cross shaft to injection pump

1шт.

24

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

25

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" plain

1шт.

26

A10329

BALL JOINT,1/4" - 28 x 1"

-, Serial Range: rod-pump

1шт.

27

A35640

LEVER - foot throttle to cross shaft

1шт.

28

B18277

SPRING

- return

1шт.

29

14-648

CAPSCREW,Hex, 3/8" - 24 x 3", Gr 5

BOLT - 3/8" x 3" NF hex. hd.

1шт.

30

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" N.F. hex.

2шт.

31

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (w/o Draft-O-Matic) 3/8" x 1.060"

2шт.

32

G16898

LINK - foot, Serial Range: throttle-lever

1шт.

33

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

34

G46256

ROD - throttle (w/o Draft-O-Matic)

1шт.

35

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

36

G16902

PEDAL - foot throttle (w/Draft-O-Matic)

1шт.

37

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex. hd.

1шт.

38

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

1шт.

39

92-6

LOCK WASHER,3/8"

std. 3/8"

1шт.

40

G49606

BUSHING - pedal (w/o Draft-O-Matic)

1шт.

41

G16901

BRACKET - lower half (w/o Draft-O-Matic)

1шт.

42

G16904

BRACKET - upper half (w/o Draft-O-Matic)

1шт.

43

77-512

SCREW

- truss hd., 5/16" x 3/4"

1шт.

44

92-5

LOCK WASHER,5/16"

std. 5/16"

1шт.

45

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

1шт.

46

A35641

ROD

- foot throttle (w/Draft-O-Matic)

1шт.

47

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

48

G15692

PEDAL

- foot (w/Draft-O-Matic)

1шт.

49

G49618

BUSHING

- pedal pivot (w/Draft-O-Matic)

1шт.

50

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

- 5/16" x 1-1/2" N.F. hex. hd.

1шт.

51

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

52

G15694

BRACKET

- pedal (w/Draft-O-Matic)

1шт.

53

77-512

SCREW

- truss hd., 5/16" x 3/4"

1шт.

54

92-5

LOCK WASHER,5/16"

std. 5/16"

1шт.

55

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

1шт.
