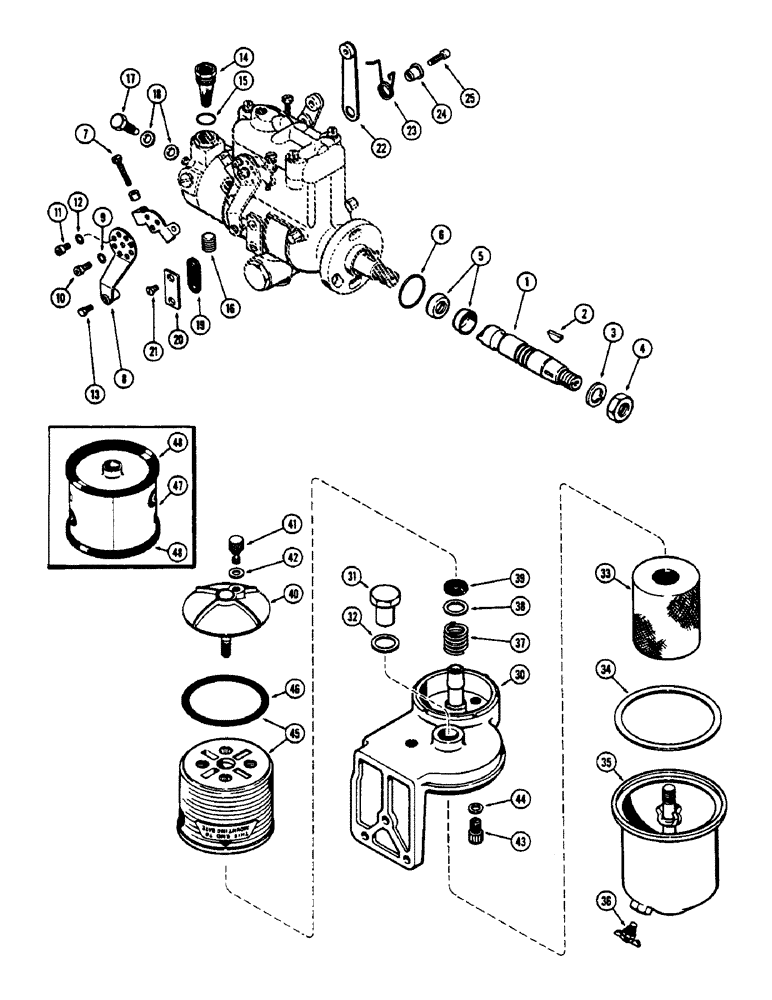

Запчасти Case 530CK (056) - PARTS FOR FUEL INJECTION PUMP (10) - ENGINE

1

G47113

SHAFT

- drive

1шт.

2

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

3

192-24

LOCK WASHER,9/16"

WASHER, LOCK, , Drive shaft nut 9/16"

1шт.

4

25-159

JAM NUT,Jam, 9/16"-18, G5

- jam, 9/16" N.F. hex.

1шт.

5

R14711

SEAL

- drive shaft

1шт.

6

74244

SEAL,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

SEAL pilot tube

1шт.

7

G49088

ADJUSTMENT SCREW,#10 - 32 x 1.781"

adjusting, high idle

1шт.

8

G45337

ARM

- shut-off

1шт.

9

73630

LOCK WASHER

WASHER shut-off arm retaining screw

1шт.

10

73670

SCREW

retaining, shut-off arm

1шт.

11

73646

SCREW

positioning, shut-off arm

1шт.

12

493-21017

LOCK WASHER,Int Tooth, #8

LOCKWASHER positioning screw

1шт.

13

463-2086

SCREW,Slotted Hex Hd, #8-32 x 3/8"

fitting, shut-off arm

1шт.

14

73671

ROPE

CAP AND FILTER

1шт.

15

51200280

SEAL

filter cap

1шт.

16

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

End plate Hex Soc, 1/4"-18 NPTF

1шт.

17

73613

SCREW

connector, fuel line

4шт.

18

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER connector screw

8шт.

19

73453

GASKET

timing window cover

1шт.

20

G46330

COVER

timing window

1шт.

21

73514

SCREW

timing window cover

2шт.

22

G45338

ARM

throttle

1шт.

23

G48505

SPRING

throttle arm

1шт.

24

G49621

RETAINER

spring, throttle arm

1шт.

25

G49079

SET SCREW

SCREW throttle arm

1шт.

A35735

FILTER

ASSY. - complete, fuel, Includes: Ref. 30 - 46

1шт.

30

A35664

HEAD

- fuel filter mounting

1шт.

31

A21131

NUT

- primary filter body to head, fuel

1шт.

32

A28055

GASKET

- nut to head, fuel filter

1шт.

33

A35863

FILTER, ELEMENT

ELEMENT - primary filter, fuel

1шт.

34

A28056

GASKET

- primary filter body to head, fuel

1шт.

35

CASA37099

HOUSING

BOSY - primary filter, fuel

1шт.

36

217-102

PLUG, DRAIN

DRAIN COCK - primary filter (1/8" P.T.), fuel

1шт.

37

A35669

SPRING

- final filter, fuel

1шт.

38

A35670

WASHER

- final filter, fuel

1шт.

39

A35671

GASKET

- rubber, fuel filter

1шт.

40

A35672

CAP

- final filter, fuel, Includes: Ref. 41 and 42

1шт.

41

A35971

SCREW,1/4" - 20 x 0.695"

VALVE - bleeder, fuel filter

1шт.

42

NLS

NO LONGER SERVICED

GASKET - bleeder valve, fuel filter

1шт.

43

G49080

PLUG

- drain, final filter, fuel

1шт.

44

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

GASKET - drain plug, final filter (Replaces G46886), fuel

1шт.

45

A39109

FILTER

- final (Replaces A37187), fuel, Includes: Ref. 46

1шт.

46

A37188

GASKET

- final filter (See ref. 48), fuel

1шт.

47

A35668

FILTER

- final (Order A37187), fuel

1шт.

48

G46895

GASKET

- final filter (See ref. 46), fuel

2шт.
