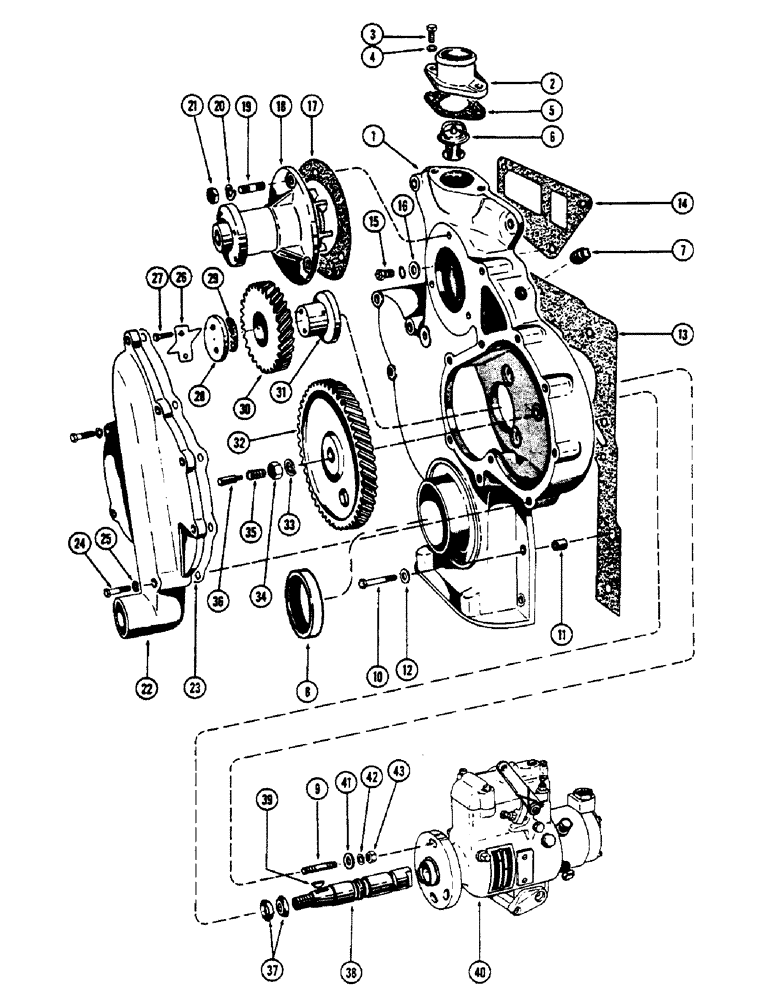

Запчасти Case 530CK (052) - FUEL INJECTION PUMP DRIVE, (188) DIESEL ENGINE (10) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A36823
COVER
COVER - injection pump drive, Includes: Ref. 2 - 9
1шт.
2
G2144
FITTING
CONNECTION - water outlet
1шт.
3
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
BOLT, Hex, 3/8"-16 x 1", G5, Full Thd
2шт.
4
92-6
LOCK WASHER,3/8"
LOCK WASHER, , std. 3/8"
2шт.
5
G46907
GASKET
GASKET - water outlet
1шт.
6
A57641
THERMOSTAT
THERMOSTAT - (180 degrees) (Replaces G45788)
1шт.
8
A36609
OIL SEAL
OIL SEAL - crankshaft front
1шт.
9
G11204
STUD
STUD - pump mtg. (3/8" x 1-7/16")
3шт.
10
13-614
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd
BOLT, Hex, 3/8"-16 x 7/8", G5, Full Thd
2шт.
10
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd
3шт.
10
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
BOLT - 3/8" x 1-1/4" N.C. hex. hd.
3шт.
10
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
BOLT - 3/8" x 2" N.C. hex. hd.
1шт.
10
13-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5
BOLT - 3/8" x 2-3/4" N.C. hex. hd.
3шт.
10
13-648
BOLT,Hex, 3/8" - 16 x 3", Gr 5
BOLT - 3/8" x 3" N.C. hex. hd.
1шт.
10
13-652
BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5
BOLT - 3/8" x 3-1/4" N.C. hex. hd.
3шт.
11
A29442
RING
RING - dowel, Serial Range: cover-block
2шт.
12
95-6
WASHER,3/8"
WASHER - plain 3/8"
2шт.
13
A38228
GASKET
GASKET - cover to block (Replaces G46857)
1шт.
14
A38084
GASKET,1.27mm Thk
GASKET - cover to head (Replaces G46858)
1шт.
15
G49083
BOLT
BOLT - drilled, cover to hd. (1/2" x 3/4")
1шт.
193-32
LOCK WASHER,Int Tooth, 1/2"
WASHER, LOCK, Int Tooth, 1/2"
1шт.
16
A30058
WASHER
WASHER - drilled bolt
1шт.
17
A38083
GASKET
GASKET - water, Serial Range: pump-cover
1шт.
18
G11939
PUMP
WATER PUMP - complete (See Figure 36)
1шт.
18
A146584GV
WATER PUMP
Value, Water Pump Assy.
1шт.
18
A146584R
REMAN-WATER PUMP
Reman For New P/N G11939, Water Pump, Complete
1шт.
18
A146584C
CORE-WATER PUMP
Return Part Number
1шт.
18
A48363
REMAN-WATER PUMP
Remanufactured WATER PUMP
1шт.
18
A48323
CORE-WATER PUMP
Return Number, WATER PUMP
1шт.
19
A29433
STUD
STUD - pump mtg. (3/8 x 1")
3шт.
20
25-106
NUT,3/8"-16, G5
NUT - 3/8" N.C. hex.
3шт.
21
92-6
LOCK WASHER,3/8"
LOCK WASHER, , std. 3/8"
3шт.
22
G2077
COVER ASSY
COVER - drive gear
1шт.
23
G46859
GASKET
GASKET - gear cover
1шт.
24
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
BOLT - 3/8" x 2" N.C. hex. hd.
1шт.
24
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
BOLT, Hex, 3/8"-16 x 1", G5, Full Thd
8шт.
25
92-6
LOCK WASHER,3/8"
LOCK WASHER, , std. 3/8"
9шт.
26
G11746
PLATE
PLATE - lock, idler gear
1шт.
27
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
BOLT - 3/8" x 2" N.C. hex. hd.
2шт.
28
G11732
PLATE
PLATE - thrust, idler gear
1шт.
29
G11728
SHIM,.005" Thk
SHIM, , Idler gear .005" Thk
1шт.
29
G11729
SHIM,.006" Thk
SHIM, , Idler gear .006" Thk
1шт.
29
G11730
SHIM,.007" Thk
SHIM, , Idler gear .007" Thk
1шт.
29
G11731
SHIM,.009" Thk
SHIM, , Idler gear .009" Thk
1шт.
30
G11852
GEAR
GEAR ASSY. - idler (Incl. bushing)
1шт.
31
G11726
HUB
HUB - idler gear
1шт.
32
G2076
GEAR
GEAR - drive, injection pump
1шт.
33
192-24
LOCK WASHER,9/16"
WASHER, LOCK, , Pump drive shaft 9/16"
1шт.
34
25-159
JAM NUT,Jam, 9/16"-18, G5
NUT - 9/16" N.F. hex. jam
1шт.
35
G48502
SPRING
SPRING - thrust, pump drive shaft
1шт.
36
G47128
PLUNGER
PLUNGER - thrust spring
1шт.
37
R14711
SEAL
SEAL - drive shaft
2шт.
38
G47113
SHAFT
SHAFT - pump drive
1шт.
39
126-12
WOODRUFF KEY,#6, 5/32" x 5/8"
WOODRUFF KEY, #6, 5/32" x 5/8"
1шт.
40
A35773
PUMP, FUEL INJECTION
PUMP, INJECTION PUMP - injection, 530 w/std. clutch (See Figure 56)
1шт.
40
A35774
PUMP
SPARE PART PUMP - injection, 530 w/Case-O-Matic (See Figure 56)
1шт.
41
A30043
WASHER
WASHER - pump mtg. stud
3шт.
42
92-6
LOCK WASHER,3/8"
LOCK WASHER, , std. 3/8"
3шт.
43
25-106
NUT,3/8"-16, G5
NUT - 3/8" N.C. hex.
3шт.
Выбрано товаров: 60
