Запчасти Case 530CK (048) - OIL PUMP-OIL FILTER-OIL PAN, (188) DIESEL ENGINE (10) - ENGINE

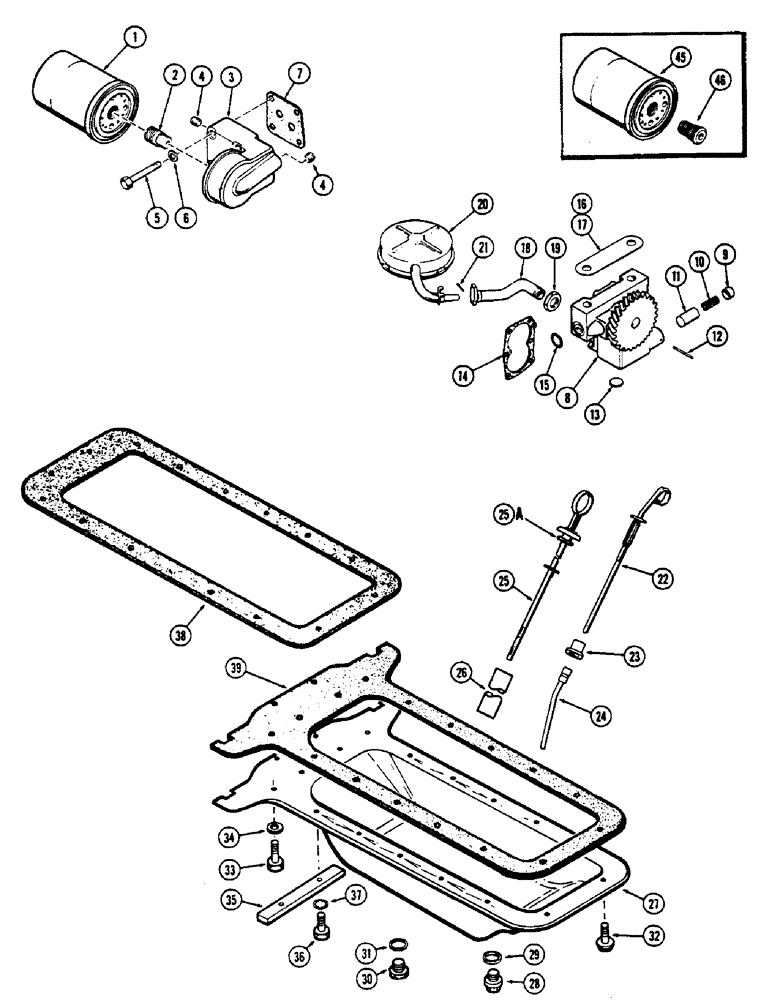

Схема запчастей Case 530CK - (048) - OIL PUMP-OIL FILTER-OIL PAN, (188) DIESEL ENGINE (10) - ENGINE

Артикул

Название

Примечание

Количество

1

G45210

FILTER, ELEMENT

ELEMENT, FILTER FILTER - engine oil

1шт.

2

A35557

ADAPTER

ADAPTER -, Serial Range: filter-bracket

1шт.

3

A35556

BRACKET

BRACKET - filter mtg.

1шт.

4

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

PLUG, , Pipe Hex Soc, 1/4"-18 NPTF

4шт.

5

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

BOLT - 5/16" x 1-3/4" N.C. hex. hd.

4шт.

6

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

4шт.

7

G46854

GASKET

GASKET -, Serial Range: bracket-block

1шт.

8

A38372

PUMP

OIL PUMP ASSY. - complete (Replaces G37070), Includes: Ref. 9 - 14

1шт.

8

AR38372

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

8

AC38372

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

9

A29260

RETAINER

RETAINER - relief spring

1шт.

10

G48500

SPRING

SPRING - relief

1шт.

11

A155144

VALVE, PRESSURE RELI

- relief

1шт.

12

138-62

LOCK PIN,1/8" x 1 1/8", Slotted

ROLL PIN - 1/8" x 1/4"

1шт.

13

41-102

PLUG,Exp, 1/2"

PLUG - pump body

2шт.

14

G46852

GASKET

GASKET - pump cover

1шт.

15

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - oil port

1шт.

16

G11337

SHIM,.002" Thk

SHIM, , Pump to block .002" Thk

2шт.

17

G11338

SHIM,.005" Thk

SHIM, , Pump to block .005" Thk

1шт.

18

G45766

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST PIPE - suction

1шт.

19

223-207

LOCK NUT

NUT - lock, Serial Range: pipe-pump

1шт.

20

A30126

SPARE PART FLOAT ASSY. - (Includes screen) (Order A39036 & A39035)

1шт.

21

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

22

G37037

DIPSTICK

DIPSTICK - See ref. 25, Includes: Ref. 23, Serial Range: -2121404

1шт.

23

G46892

OIL SEAL

SEAL - rubber

1шт.

24

G45139

BRACKET

SUPPORT - dipstick, Serial Range: -2121404

1шт.

25

A37148

DIPSTICK

DIPSTICK - Includes: Ref. 25A, Start Serial: 2121404

1шт.

25a

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - dipstick seal

2шт.

26

A37149

TUBE

TUBE - dipstick, Start Serial: 2121404

1шт.

27

A36721

CASE

OIL PAN ASSY. - (Replaces A36720)

1шт.

28

A14280

PLUG

PLUG - drain (3/4" N.F. thrd.)

1шт.

29

A58608

GASKET

GASKET - drain plug (Copper)

1шт.

30

G45786

PLUG

PLUG - drain (3/8" P.T.), Includes: Ref. 31

1шт.

31

G46903

GASKET

GASKET - drain plug (Fiber)

1шт.

32

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - oil pan (Includes lockwasher)

12шт.

33

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

BOLT - rear, 5/16" x 1-1/4" N.C. hex. hd.

2шт.

34

195-400

WASHER

WASHER - sealing

2шт.

35

G11372

STRIP

STRIP - reinforcing

1шт.

36

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

37

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

38

NSS

NOT SOLD SEPARAT

GASKET - (w/std. clutch) Order A40712 from Figure 38

1шт.

39

NSS

NOT SOLD SEPARAT

GASKET - (w/torque converter) Order A40713 from Figure 38

1шт.

45

A37189

FILTER, ELEMENT

ELEMENT, FILTER engine oil

1шт.

46

A153552

ADAPTER

, Serial Range: filter,-block

1шт.

Выбрано товаров: 44
