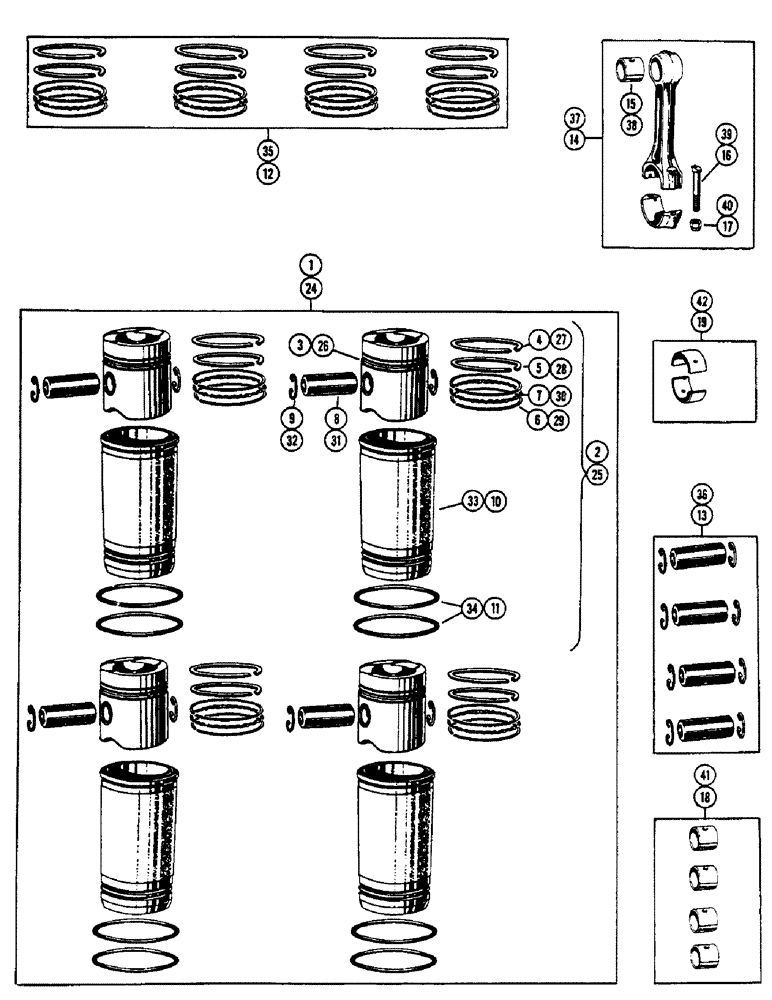

Запчасти Case 530CK (046) - PISTONS, SLEEVES AND CONNECTING RODS, (188) DIESEL ENGINE FOR WIDE FLANGED SLEEVES (10) - ENGINE

1

A37764

PISTON & SLEEVE SET - (Set of 4) (Order A42813 piston set & 42001 gasket kit), Includes: Ref. 2 - 10

1шт.

2

A37769

X

PISTON & SLEEVE ASSY. - (Set of 1) (Order A42812 piston set & A42001 gasket kit), Includes: Ref. 3 - 11

4шт.

3

G2137

X

PISTON

1шт.

4

G4819

RING

- compression, 1st groove (See ref. 12)

1шт.

5

G4817

RING

- compression, 2nd groove (See ref. 12)

1шт.

6

G47155

RAIL

- oil control, 3rd groove (Set ref. 12)

2шт.

7

G47174

SPRING

SPACER - oil control rails (See ref. 12)

1шт.

8

NSS

NOT SOLD SEPARAT

PIN - piston (Order A35771)

1шт.

9

G46702

RING, LOCKING

RING - snap, piston pin ret.

2шт.

10

A37763

X

SLEEVE - piston (Cylinder liner) (Order 1-A39006 sleeve, 4-A38639 fire rings & 1-A38640 cyl. hd. gasket)

1шт.

A37763 liner: 4.53" across flanges area G2110 liner: 4.45" across flanged area

1шт.

11

G46888

O-RING,3.737" ID x 3.943" OD

"O" RING - sleeve packing

2шт.

12

G37075

RING

SET - (Set of 4)

1шт.

13

A35771

KIT

PIN SET - piston (Set of 4 pins & 8 rings)

1шт.

14

G11847

ROD

ASSY. - connecting

4шт.

15

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order G11953)

1шт.

16

G49064

STEP BOLT

BOLT - conn. rod cap

2шт.

17

G49060

NUT

- conn. rod bolt

2шт.

18

G11953

BUSHING

SET - piston pin (Set of 4)

1шт.

19

A36500

SEAL

INSERT ASSY. - conn. rod brg. (Std.)

4шт.

19

A36501

BEARING LINER

INSERT ASSY. - conn. rod brg. (-.002")

4шт.

19

A36502

LINING

INSERT ASSY. - conn. rod brg. (-.010")

4шт.

19

A36503

BEARING LINER

INSERT ASSY. - conn. red brg. (-020")

4шт.

19

A36504

KIT

INSERT ASSY. - conn. rod brg. (-.030")

4шт.

24

A43014

KIT

PISTON & SLEEVE SET - (Set of 4) ( replaced A35772 ), for narrow flanged sleeves, Includes: Ref. 25 - 34

1шт.

25

A43010

PISTON & SLEEVE ASSY. - (Set of 1) ( replaced A36391 ), for narrow flanged sleeves, Includes: Ref. 26 - 34

4шт.

26

A38424

PISTON

- (Replaces G2137), for narrow flanged sleeves

1шт.

27

G4819

RING

- compression, 1st groove (See ref. 35), for narrow flanged sleeves

1шт.

28

G4817

RING

- compression, 2nd groove (See ref. 35), for narrow flanged sleeves

1шт.

29

G47155

RAIL

- oil control, 3rd groove (See ref. 35), for narrow flanged sleeves

2шт.

30

G47174

SPRING

SPACER - oil control rails (See ref. 35), for narrow flanged sleeves

1шт.

31

NSS

NOT SOLD SEPARAT

PIN - piston (Order A35771), for narrow flanged sleeves

1шт.

32

G46702

RING, LOCKING

RING - snap, piston pin ret., for narrow flanged sleeves

2шт.

33

A43009

SLEEVE CYLINDER

SLEEVE - piston (Cylinder liner) (replaced G2110 ), for narrow flanged

1шт.

A37763 liner: 4.53" across flanges area G2110 liner: 4.45" across flanged area

1шт.

34

G46888

O-RING,3.737" ID x 3.943" OD

"O" RING - sleeve packing, for narrow flanged

2шт.

35

G37075

RING

SET - (Set of 4), for narrow flanged sleeves

1шт.

36

A35771

KIT

PIN SET - piston (Set of 4 pins & 8 rings), for narrow flanged sleeves

1шт.

37

G11847

ROD

ASSY - connecting, for narrow flanged sleeves, Includes: Ref. 38 - 40

4шт.

38

NSS

NOT SOLD SEPARAT

BUSHING - piston rod (Order G11953), for narrow flanged sleeves

1шт.

39

G49064

STEP BOLT

BOLT - conn. rod cap, for narrow flanged sleeves

2шт.

40

G49060

NUT

- conn. rod bolt, for narrow flanged sleeves

2шт.

41

G11953

BUSHING

SET - piston pin (Set of 4), for narrow flanged sleeves

1шт.

42

A36500

SEAL

INSERT ASSY - conn. rod brg. (Std.), for narrow flanged sleeves

4шт.

42

A36501

BEARING LINER

INSERT ASSY. - conn. rod brg. (-.002"), for narrow flanged sleeves

4шт.

42

A36502

LINING

INSERT ASSY. - conn. rod brg. (-.010"), for narrow flanged sleeves

4шт.

42

A36503

BEARING LINER

INSERT ASSY. - conn. rod brg. (-.020"), for narrow flanged sleeves

4шт.

42

A36504

KIT

INSERT ASSY. - conn. rod brg. (-.030"), for narrow flanged sleeves

4шт.
