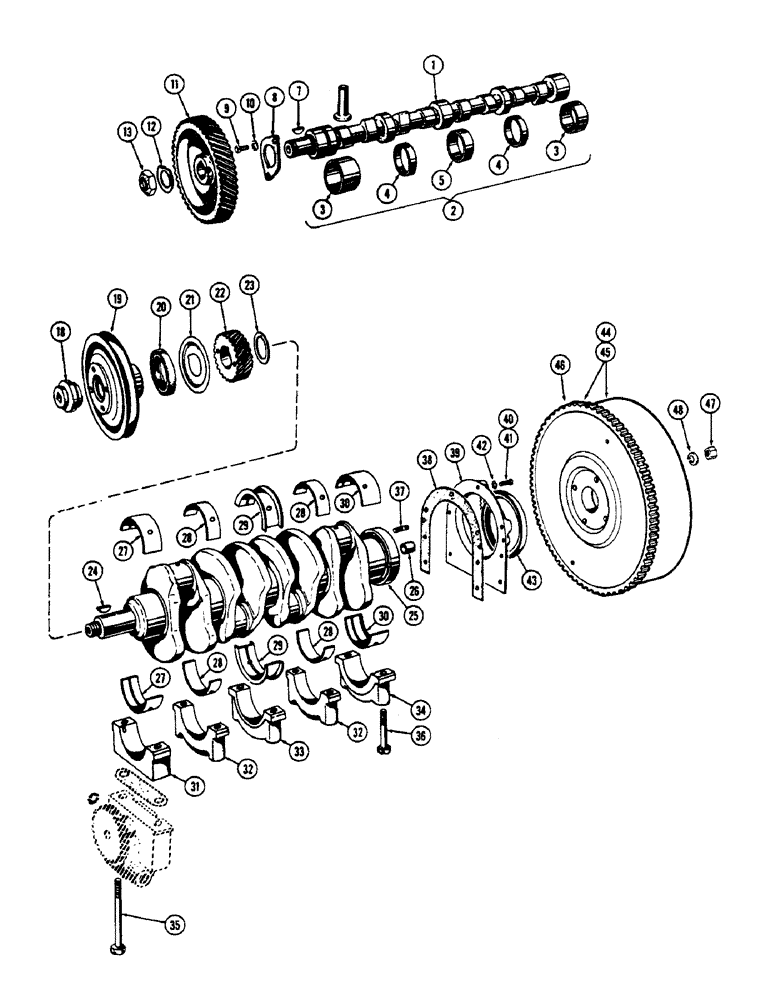

Запчасти Case 530CK (044) - CAMSHAFT, (188) DIESEL ENGINE (10) - ENGINE

1

A39013

CAM

SHAFT - (Replaces A36853 & A38890)

1шт.

2

A42746

CAM

BUSHING SET - camshaft (Replaces A42476 ), Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - front and rear

2шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - intermediate

2шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - center

1шт.

7

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Camshaft gear #6, 5/32" x 5/8"

1шт.

8

A29290

PLATE

- thrust

1шт.

9

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

- thrust plate

2шт.

10

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

11

A38931

GEAR

- camshaft (Replaces G2066)

1шт.

12

A29438

LOCK NUT

LOCKWASHER - gear nut

1шт.

13

A30063

NUT

-, Serial Range: gear-camshaft

1шт.

18

A35673

NUT

- pulley to , crankshaft & flywheel

1шт.

19

G11342

X

PULLEY - fan & generator drive, crankshaft & flywheel

1шт.

20

A36609

OIL SEAL

OIL SEAL - front, crankshaft & flywheel

1шт.

21

A29259

SLINGER

- oil, crankshaft & flywheel

1шт.

22

A29263

GEAR

- (24 T), crankshaft & flywheel

1шт.

23

A29294

BUSHING

SPACER - thrust, crankshaft & flywheel

1шт.

24

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley & gear to , crankshaft & flywheel

2шт.

25

G11889

CRANKSHAFT

ASSY. - (Order A39150), crankshaft & flywheel, Includes: Ref. 26

1шт.

26

A30024

BUSHING,15.98mm ID x 20.73mm OD x 22.23mm L

- pilot, crankshaft & flywheel

1шт.

27

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

LINERS - front bearing (Std.), crankshaft & flywheel

1шт.

27

A36481

LINING

LINERS - front bearing (.002" undersize), crankshaft & flywheel

1шт.

27

A36482

BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W

LINERS - front bearing (.010" undersize), crankshaft & flywheel

1шт.

27

A36483

LINING

LINERS - front bearing (.020" undersize), crankshaft & flywheel

1шт.

27

A36484

LINING

LINERS - front bearing (.030" undersize), crankshaft & flywheel

1шт.

28

A36485

LINING

LINERS - intermediate bearing (Std.), crankshaft & flywheel

2шт.

28

A36486

LINING

LINERS - intermediate brg. (.002" undersize), crankshaft & flywheel

2шт.

28

A36487

BEARING LINER,73.44mm ID x 78.54mm OD x 25.4mm W

LINERS - intermediate bearing (.010" undersize), crankshaft & flywheel

2шт.

28

A36488

CRANKSHAFT BEARING,3.067" ID x 3.092" OD x 1"

LINERS - intermediate brg. (.020" undersize), crankshaft & flywheel

2шт.

28

A36489

LINING

LINERS - intermediate brg. (.030" undersize), crankshaft & flywheel

2шт.

29

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

LINERS - center bearing, (Std.), crankshaft & flywheel

1шт.

29

A36491

LINING

LINERS - center brg. (.002" undersize), crankshaft & flywheel

1шт.

29

A36492

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINERS - center brg. (.010" undersize), crankshaft & flywheel

1шт.

29

A36493

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINERS - center brg. (.020" undersize), crankshaft & flywheel

1шт.

29

A36494

LINING

LINERS - center brg. (.030" undersize), crankshaft & flywheel

1шт.

30

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

LINERS - rear bearing (Std.), crankshaft & flywheel

1шт.

30

A36496

LINING

LINERS - rear bearing (.002" undersize), crankshaft & flywheel

1шт.

30

A36497

BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W

LINERS - rear brg. (.010" undersize), crankshaft & flywheel

1шт.

30

A36498

KIT

LINERS - rear bearing (.020" undersize), crankshaft & flywheel

1шт.

30

A36499

BEARING LINER

LINERS - rear brg. (.030' undersize), crankshaft & flywheel

1шт.

31

G2126

CAP

- front bearing, crankshaft & flywheel

1шт.

32

G2128

CAP

- intermediate bearing, crankshaft & flywheel

2шт.

33

G2127

CAP

- center bearing, crankshaft & flywheel

1шт.

34

G2129

CAP

- rear bearing, crankshaft & flywheel

1шт.

35

26-882

BOLT,Hex, 1/2" - 13 x 5-1/8", Gr 8

- front brg. cap (1/2" x 5-1/8"), crankshaft & flywheel

2шт.

36

26-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

- bearing cap (1/2" x 4-1/2"), crankshaft & flywheel

8шт.

37

A29434

STUD

- flywheel to crankshaft (7/16 x 1-3/4")

4шт.

38

A38196

GASKET

- rear oil seal retainer (Replaces G46802), crankshaft & flywheel

1шт.

39

A38390

RETAINER

- rear oil seal (Replaces G2017), crankshaft & flywheel

1шт.

40

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Crankshaft & flywheel Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

41

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Crankshaft & flywheel Hex, 1/4"-20 x 1", G5

3шт.

42

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Crankshaft & flywheel 1/4"

7шт.

43

A51339

OIL SEAL,101.6mm ID x 127.1mm OD x 9.5mm Thk

OIL SEAL - rear, (replaced A39027 ), crankshaft & flywheel

1шт.

44

G11859

FLYWHEEL

ASSY. - (w/std. clutch), crankshaft & flywheel

1шт.

45

G11860

FLYWHEEL

ASSY. - (w/torqu conv.), crankshaft & flywheel, Includes: Ref. 46

1шт.

46

G11710

GEAR

- ring, crankshaft & flywheel

1шт.

47

25-117

NUT,7/16"-20, G5

- 7/167" N.F. hex., crankshaft & flywheel

4шт.

48

92-7

LOCK WASHER,7/16"

crankshaft & flywheel 7/16"

4шт.

D140524

FLEXIBLE COUPLING,13T

FLEX COUPLING (For repairs see Figure 12), crankshaft & flywheel

1шт.
