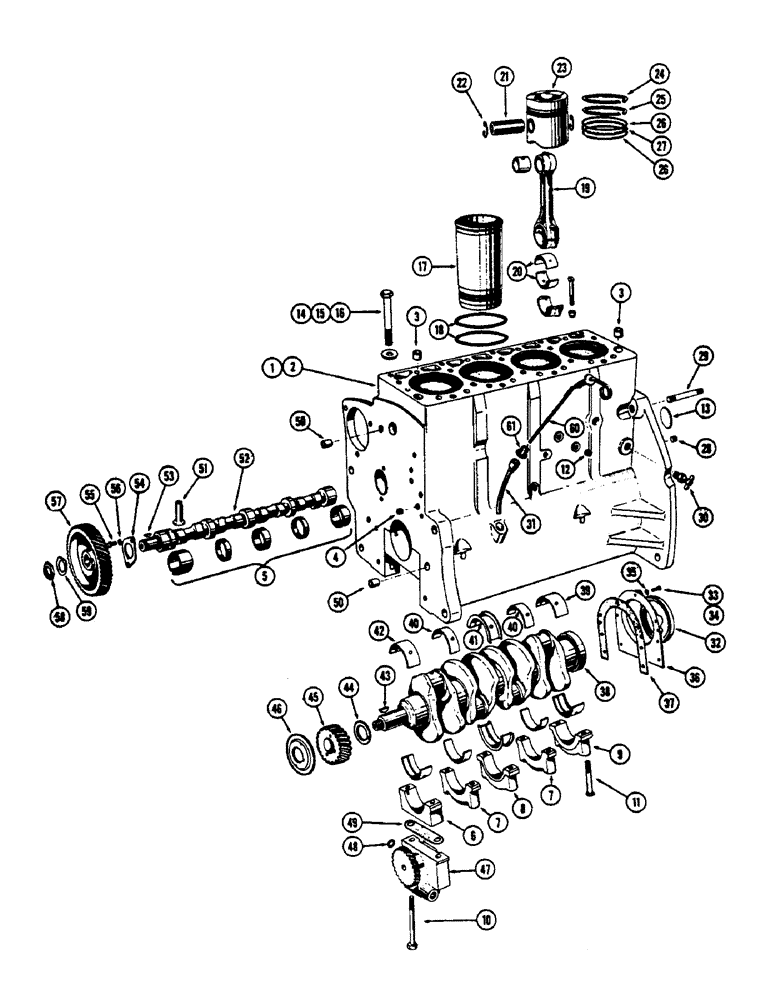

Запчасти Case 530CK (043A) - CYLINDER BLOCK ASSEMBLY, (188) DIESEL ENGINE, BEFORE ENG. NO 2117952 (10) - ENGINE

1

A36315

SPARE PART SHORT BLOCK ASSY. - (Order A40592, Figure 42), Includes: Ref. 2 - 59

1шт.

2

A36309

SPARE PART BLOCK ASSY. - stripped (Order A40590, Figure 42), Includes: Ref. 3 - 16

1шт.

3

G49608

RING

RING - dowel, Serial Range: head-block

2шт.

4

G49070

PLUG

PLUG - oil gallery, front

1шт.

5

A42746

CAM

BUSHING SET - crankshaft (Replaces A36317 & A41232)

1шт.

6

G2126

CAP

CAP - front brg., crankshaft

1шт.

7

G2128

CAP

CAP - intermediate brg., crankshaft

2шт.

8

G2127

CAP

CAP - center brg., crankshaft

1шт.

9

G2129

CAP

CAP - rear brg., crankshaft

1шт.

10

26-882

BOLT,Hex, 1/2" - 13 x 5-1/8", Gr 8

BOLT - front brg. cap (1/2 x 5-1/8")

2шт.

11

26-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

BOLT - brg. cap (1/2" x 4-1/2")

8шт.

12

221-32

PLUG,Sq Soc, 3/8"-18 NPTF

PLUG - lift side (3/8" P.T.)

1шт.

13

A39241

PLUG,Exp, 2.12" dia

PLUG - rear (2-1/8" dia.)

1шт.

14

A35370

BOLT

BOLT - head (1/2" x 4")

4шт.

15

A35371

BOLT

BOLT - head (1/2" x 5-5/8")

11шт.

16

A35372

BOLT (SPREADER)

BOLT - head (1/2" x 6")

2шт.

17

G2110

SLEEVE

SLEEVE - cylinder (See Figure 46)

4шт.

18

G46888

O-RING,3.737" ID x 3.943" OD

"O" RING - sleeve packing

8шт.

19

G11847

ROD

CONNECTING ROD ASSY. - (See Figure 46)

4шт.

20

A36500

SEAL

LINERS - brg., conn. rod, std. (See Figure 46)

4шт.

21

NSS

NOT SOLD SEPARAT

PIN - wrist (See Figure 46)

4шт.

22

G46702

RING, LOCKING

RING, LOCK RING - retaining (See Figure 46)

8шт.

23

A38424

PISTON

PISTON - (See Figure 46) (Replaces G2137)

4шт.

24

G4819

RING

RING - piston, top (See Figure 46)

4шт.

25

G4817

RING

RING - compression (See Figure 46)

4шт.

26

G47155

RAIL

RAIL - oil, piston (See Figure 46)

8шт.

27

G47174

SPRING

SPACER - oil rail

4шт.

28

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

PLUG, , Oil gallery Hex Soc, 1/4"-18 NPTF

2шт.

29

A29333

STUD

STUD - engine mounting (5/8" x 3")

2шт.

30

217-103

COCK, DRAIN

DRAIN COCK

1шт.

31

G45139

BRACKET

SUPPORT - dipstick

1шт.

32

A39027

OIL SEAL

OIL SEAL - rear, crankshaft (Replaces A36610)

1шт.

33

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

34

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

BOLT, Hex, 1/4"-20 x 1", G5

3шт.

35

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

36

A38390

RETAINER

RETAINER - rear oil seal (Replaces G2017)

1шт.

37

A38196

GASKET

GASKET - retainer, rear oil seal (Replaces G46802)

1шт.

USE A51339 SEAL

1шт.

38

G11889

CRANKSHAFT

CRANKSHAFT - (See Figure 44)

1шт.

39

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

LINERS - rear bearing, std. (See Figure 44)

1шт.

40

A36485

LINING

LINERS - intermediate brg., std.(See Figure 44)

2шт.

41

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

LINERS - center brg., std. (See Figure 44)

1шт.

42

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

LINERS - rear bearing, std. (See Figure 44)

1шт.

43

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - gear & pulley to crankshaft

2шт.

44

A29294

BUSHING

SPACER - thrust

1шт.

45

A29263

GEAR

GEAR - crankshaft

1шт.

46

A29259

SLINGER

SLINGER - oil

1шт.

47

A38372

PUMP

OIL PUMP ASSY. - (See Figure 48) (Replaces G37070)

1шт.

47

AR38372

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

47

AC38372

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

48

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - oil port

1шт.

49

G11337

SHIM,.002" Thk

SHIM, , Pump to block .002" Thk

2шт.

49

G11338

SHIM,.005" Thk

SHIM, , Pump to block .005" Thk

1шт.

50

A29442

RING

RING - dowel, gear cover

2шт.

51

G47077

TAPPET

TAPPET - valve

8шт.

52

A39013

CAM

CAMSHAFT - (Replaces A36853 & A38890)

1шт.

53

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

WOODRUFF KEY, , Crankshaft gear #6, 5/32" x 5/8"

1шт.

54

A29290

PLATE

PLATE - thrust, camshaft

1шт.

55

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

SCREW - thrust plate

2шт.

56

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

57

A38931

GEAR

GEAR - camshaft (Replaces G2066)

1шт.

58

A30063

NUT

NUT - camshaft

1шт.

59

A29438

LOCK NUT

LOCKWASHER - camshaft nut

1шт.

60

G37037

DIPSTICK

DIPSTICK - oil level, Inlcudes: Ref. 61

1шт.

61

G46892

OIL SEAL

SEAL - rubber

1шт.
