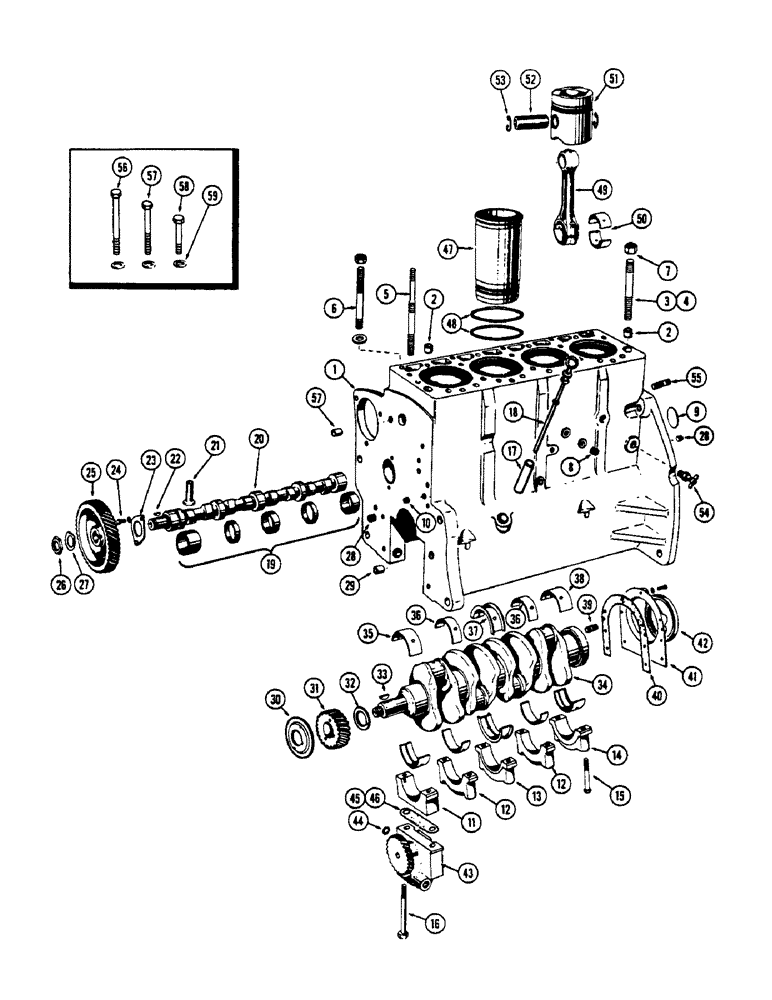

Запчасти Case 530CK (042) - CYLINDER BLOCK ASSEMBLY, (188) DIESEL ENGINE, USED ENG. SER.NOS.211952-2610997 (10) - ENGINE

A40592

SPARE PART SHORT BLOCK ASSY., Includes: Ref. 1 - 59

1шт.

1

A40590

SPARE PART BLOCK ASSY. - stripped (Order A41597), Includes: Ref. 2 - 55

1шт.

2

G49608

RING

RING - dowel, Serial Range: head-block

2шт.

3

A36902

STUD

STUD - head (1/2" x 5-5/8") See ref. 57

11шт.

4

A36905

STUD

STUD - head (1/2" x 6") See ref. 56

2шт.

5

A36903

STUD

STUD - head and cover

2шт.

6

A36904

STUD

STUD - head (1/2" x 4") See ref. 58

4шт.

7

A37030

FLANGE NUT

NUT - head stud

19шт.

8

221-32

PLUG,Sq Soc, 3/8"-18 NPTF

PLUG - pipe, 3/8" socket hd.

1шт.

9

A39241

PLUG,Exp, 2.12" dia

PLUG - expansion, 2-1/8" dia.

1шт.

10

G49070

PLUG

PLUG - drilled, front

1шт.

11

G2126

CAP

CAP - front brg., crankshaft

1шт.

12

G2128

CAP

CAP - intermediate brg., crankshaft

2шт.

13

G2127

CAP

CAP - center bearing, crankshaft

1шт.

14

G2129

CAP

CAP - rear bearing, crankshaft

1шт.

15

26-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

BOLT - bearing cap (1/2" x 4-1/2")

8шт.

16

26-882

BOLT,Hex, 1/2" - 13 x 5-1/8", Gr 8

BOLT - bearing cap (1/2" x 5-1/8")

2шт.

17

A37149

TUBE

TUBE - support, dipstick

1шт.

18

A37148

DIPSTICK

DIPSTICK - oil level

1шт.

19

A42746

CAM

BUSHING SET - camshaft (Replaces A36317 & A41232)

1шт.

20

A39013

CAM

CAMSHAFT - (Replaces A36853 & A38890)

1шт.

21

G47077

TAPPET

TAPPET - valve

8шт.

22

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

WOODRUFF KEY, , Gear to camshaft #6, 5/32" x 5/8"

1шт.

23

A29290

PLATE

PLATE - thrust, camshaft

1шт.

24

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

SCREW - thrust plate

2шт.

25

A38931

GEAR

GEAR - camshaft (Replaces G2066)

1шт.

26

A30063

NUT

NUT - camshaft gear

1шт.

27

A29438

LOCK NUT

LOCKWASHER - camshaft nut

1шт.

28

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

PLUG, , Front and rear Hex Soc, 1/4"-18 NPTF

2шт.

29

A29442

RING

RING - dowel

2шт.

30

A29259

SLINGER

SLINGER - oil, crankshaft gear

1шт.

31

A29263

GEAR

GEAR - crankshaft

1шт.

32

A29294

BUSHING

SPACER - thrust, crankshaft

1шт.

33

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - gear & pulley to crankshaft

2шт.

34

G11889

CRANKSHAFT

CRANKSHAFT - (See Figure 44) (Order A39150)

1шт.

35

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

LINERS - bearing, front (See Figure 44)

1шт.

36

A36485

LINING

LINERS - bearing, intermediate (See Figure 44)

2шт.

37

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

LINERS - bearing, center (See Figure 44)

1шт.

38

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

LINERS - bearing, rear (See Figure 44)

1шт.

39

A29434

STUD

STUD -, Serial Range: flywheel-crankshaft

1шт.

40

A38196

GASKET

GASKET - oil seal retainer (Repalces G46802)

1шт.

41

A38390

RETAINER

RETAINER - rear oil seals (Replaces G2017)

1шт.

42

A51339

OIL SEAL,101.6mm ID x 127.1mm OD x 9.5mm Thk

OIL SEAL - rear, crankshaft (Replaces A39027 )

1шт.

43

A38372

PUMP

OIL PUMP - (See Figure 48) (Replaces G37070)

1шт.

43

AR38372

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

43

AC38372

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

44

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - oil port

1шт.

45

G11337

SHIM,.002" Thk

SHIM, , Pump to block .002" Thk

2шт.

46

G11338

SHIM,.005" Thk

SHIM, , Pump to block .005" Thk

1шт.

47

G2110

SLEEVE

SLEEVE - cylinder (See Figure 46)

4шт.

48

G46888

O-RING,3.737" ID x 3.943" OD

"O" RING - sleeve packing

8шт.

49

G11847

ROD

CONNECTING ROD ASSY. - (See Figure 46)

4шт.

50

A36500

SEAL

LINERS - bearing (See Figure 46)

4шт.

51

A38424

PISTON

PISTON - (See Figure 46) (Replaces G2137)

4шт.

52

NSS

NOT SOLD SEPARAT

PIN - piston (See Figure 46)

4шт.

53

G46702

RING, LOCKING

RING, LOCK RING - retaining (See Figure 46)

8шт.

54

217-103

COCK, DRAIN

DRAIN COCK

1шт.

55

A29333

STUD

STUD - engine mounting (5/8 x 3")

2шт.

56

A35372

BOLT (SPREADER)

BOLT - head to block (1/2" x 5-1/2")

2шт.

57

A35371

BOLT

BOLT - head to block (1/2" x 5")

11шт.

58

A35370

BOLT

BOLT - head to block (1/2" x 4")

4шт.

59

A37029

WASHER

WASHER - head bolt (Replaces A29288)

18шт.
